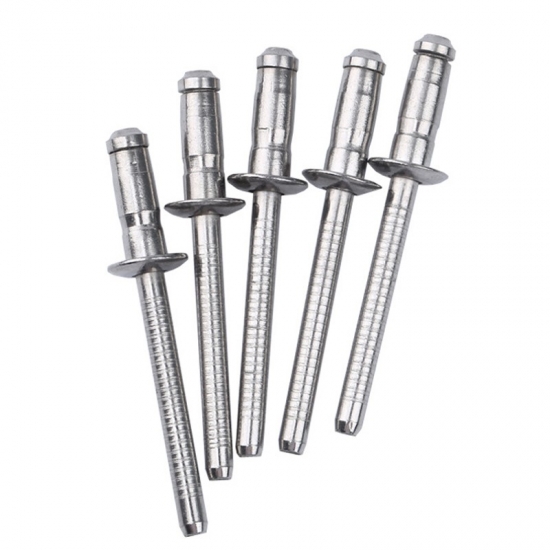

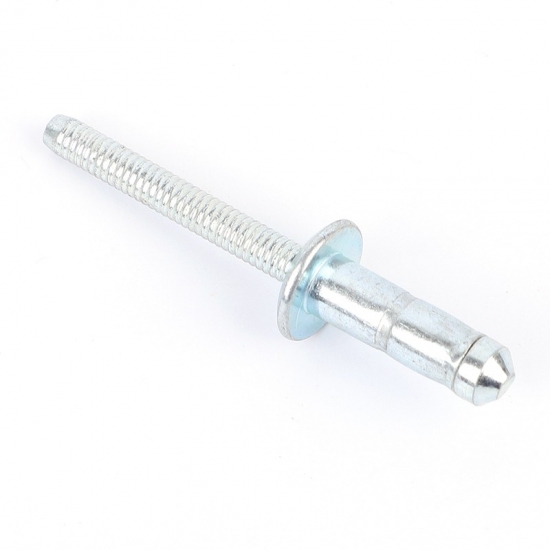

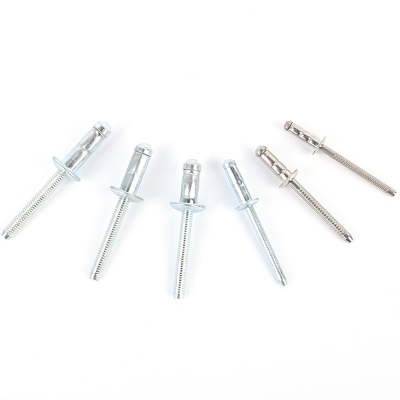

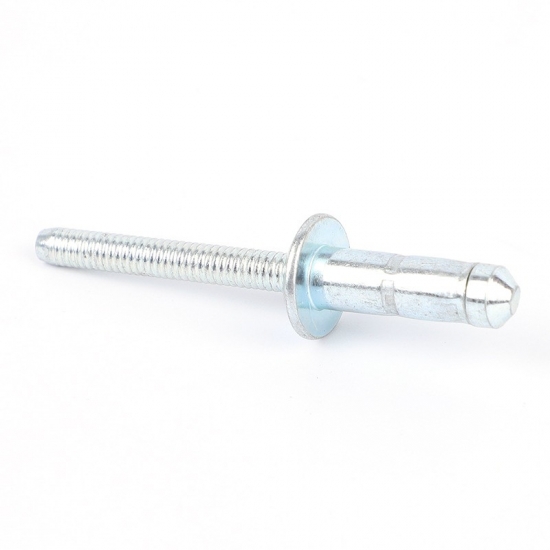

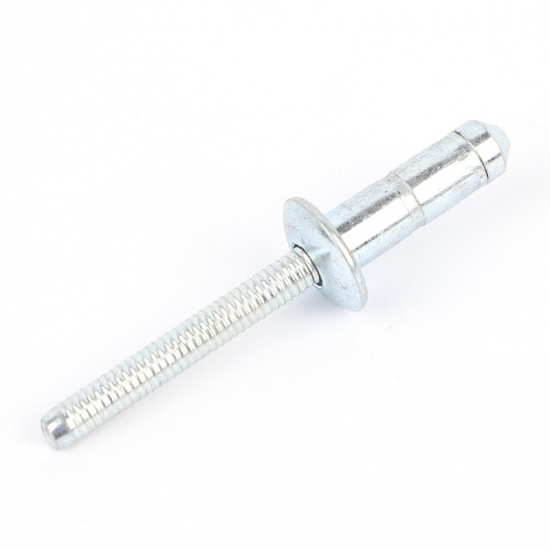

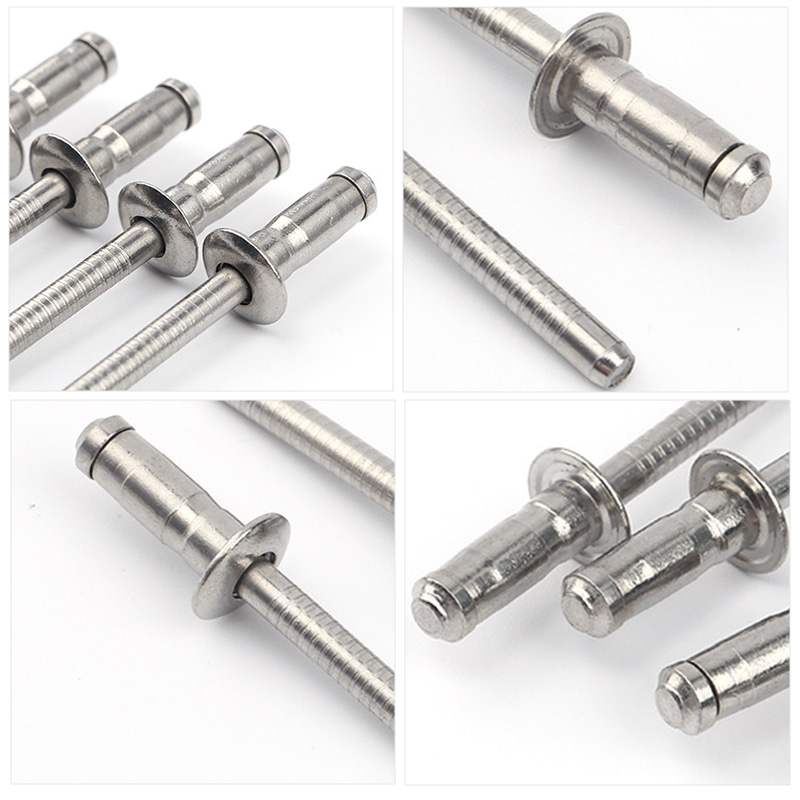

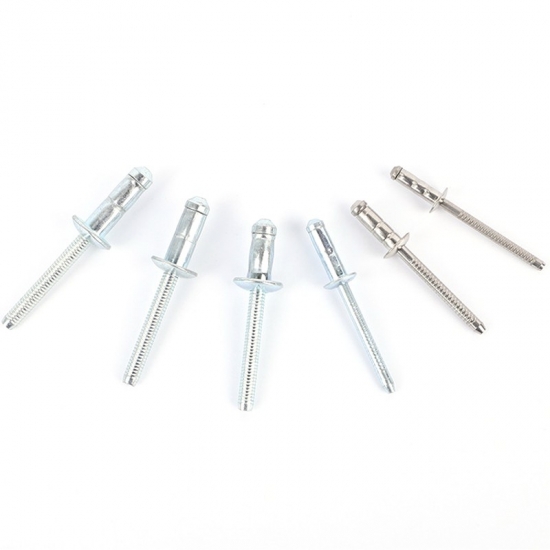

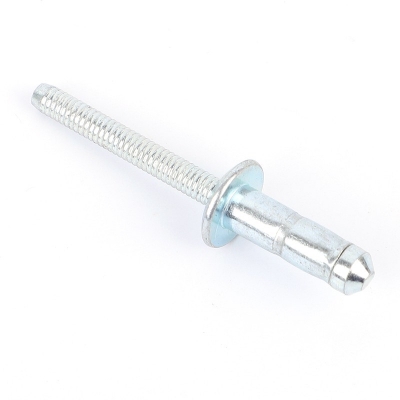

Dome Head Hemlock Structural Blind Rivets

What is Hemlock Structural Blind Rivets?

Hemlock Structural Blind Rivets , also known as structural blind rivets or huck structural rivets.

Hemlock rivet is a type of fastener commonly used in various industries for joining materials together. It consists of a cylindrical body with a head at one end and a tapered mandrel at the other end. The mandrel is inserted into the rivet hole, and as it is pulled, the rivet body expands, creating a secure and tight joint. Hemlock rivets are versatile and widely applicable.



Diameter size:

4.8mm, 6.4mm, 7.8mm

Material (Body/Mandrel)

Aluminum/ Aluminum

Steel/ Steel

Stainless steel/ Stainless steel

Head Style

Dome Head Rivets







 Advantage of Hemfirm rivet

• High strength
• Excellent vibration resistance
• Enhanced durability
• Fast and efficient installation
• Wide range of applications

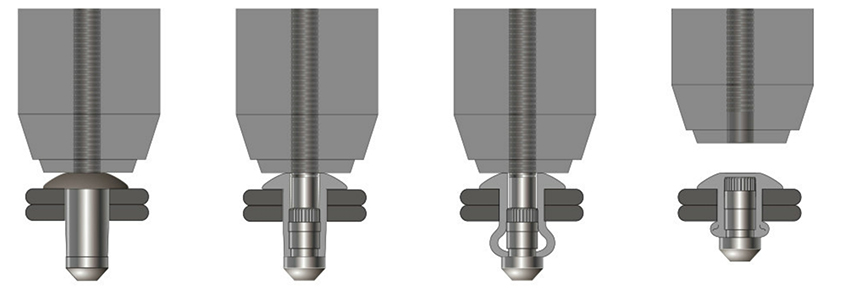

How Does Hemlock rivet Work?

1. Align the components to be joined.
2. Drill a hole through the materials using a suitable drill bit.
3. Insert the rivet into the hole.
4. Place the rivet head against the bucking bar or anvil.
5. Apply pressure by using a pneumatic or manual rivet gun to deform the tail of the rivet.
6. Continue applying pressure until the tail of the rivet expands and secures the materials together.
7. Inspect the installed rivet for proper deformation and tightness.

ST/ST Dome Head Hem Lock Blind Rivets

RIVET DIAMETER /mm	RIVET LENGTH /mm	GRIP RANGE /mm	HEAD DIAMETER /mm	HEAD HEIGHT /mm	MANDREL DIAMETER /mm	MANDREL LENGTH /mm	HOLE SIZE /mm	SHEAR /N	TENSILE /N
D1	L		D2	k	d	p	DRILL
	+1/-0		MAX.	MAX.	MAX.	MIN.		MIN.	MIN.
4.8 +0.08 -0.15	9.0	1.5-3.5	10.2	2.5	3.10	27.00	4.9-5.1	4500 N	3500 N
	11.5	3.5-6.0						6000 N	3500 N
	14.0	6.0-8.5						6200 N	3500 N
	16.5	8.5-11.0						6200 N	3500 N
	19.0	11.0-13.5						6200 N	3500 N
6.4 +0.08 -0.15	9.0	1.5-3.5	13.4	3.5	4.20	28.00	6.6-6.9	6800 N	6400 N
	10.5	2.8-4.8						9200 N	6400 N
	12.5	4.8-6.8						10000 N	6400 N
	14.5	6.8-8.8						10000 N	6400 N
	16.5	8.8-10.8						11000 N	6400 N
	18.5	10.8-12.8						11000 N	6400 N
	20.5	12.8-14.8						11000 N	6400 N
	22.5	14.5-16.8						11000 N	6400 N
	24.5	16.8-18.8						11000 N	6400 N
	26.5	18.8-20.8						11000 N	6400 N
	28.5	20.8-22.8						11000 N	6400 N
	30.5	22.8-24.8						11000 N	6400 N
	32.5	24.8-26.8						11000 N	6400 N
7.8 +0.08 -0.15	13.5	4.0-7.0	18.0	4.2	5.20	28.00	8.1-8.3	13500 N	9100 N
	16.5	7.0-10.0						16000 N	9100 N
	19.5	9.0-13.0						16000 N	9100 N
	22.5	13.0-16.0						16000 N	9100 N

Production Process

Step 1

Blind rivet machine---making the rivet body

Step 2

Nail making machine---making the mandrel

Step 3

Assembly machine--finish the assembly of rivet body and the mandrel

Package

Regular package is small box+ carton+ pallet, or bulk in carton, each carton weights 20-25kgs.

Borie Fasteners can also provide custom packaging service, such as poly bag or plastic bag with client's logo and information.

Application

Hemlock Blind rivets can be used just about anywhere if they are properly installed. Most of them are used in

1. Automotive manufacturing
2. Aerospace industry
3. Construction and structural engineering
4. Furniture assembly
5. Electrical and electronics industry
6. Shipbuilding and marine applications
7. Metal fabrication
8. Signage and display production
9. HVAC systems installation
10. Mechanical engineering projects
