Home Solid rivet

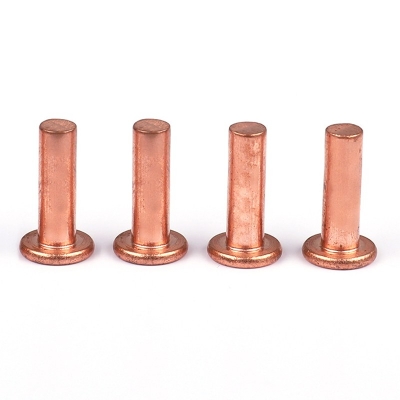

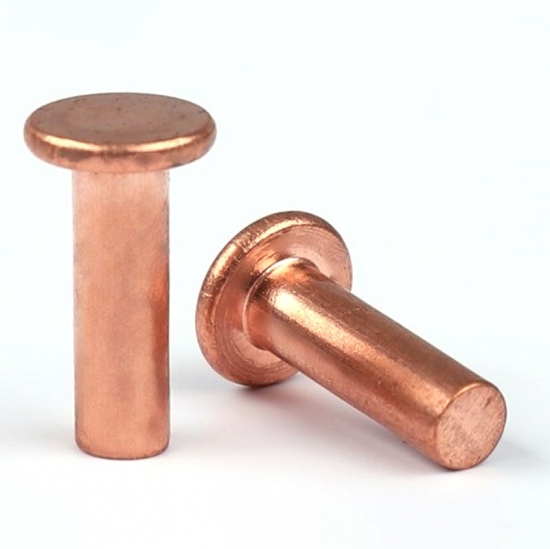

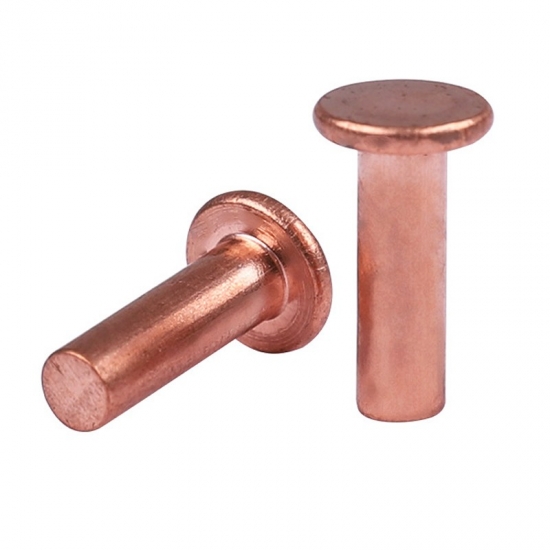

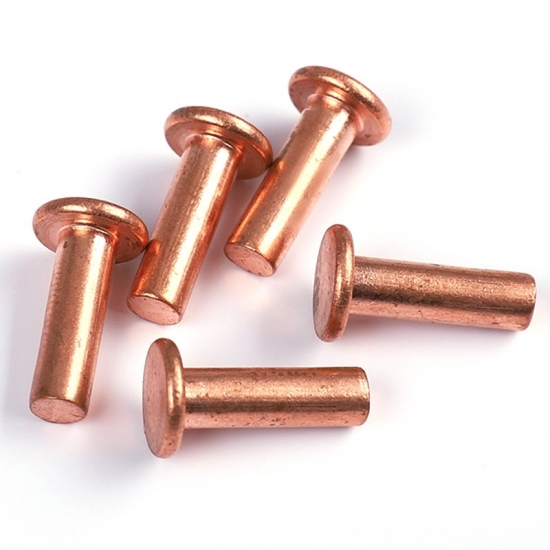

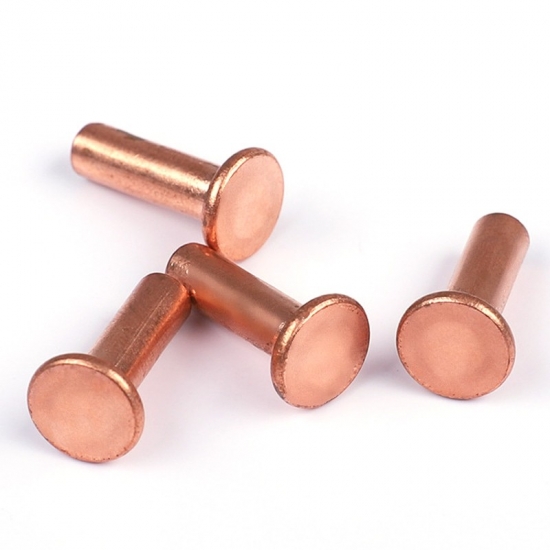

Supplier Copper Flat Round Head Solid Rivets

flat head copper rivets
flat head copper rivets
flat head copper rivets
flat head copper rivets
flat head copper rivets

Supplier Copper Flat Round Head Solid Rivets

A flat head solid rivet is a type of fastener used to join two or more materials together permanently. It consists of a cylindrical shaft with a flat head on one end and a bucktail (unheaded) on the other. When installed, the bucktail is deformed by hammering or pressing, creating a secure and durable joint.

  • Payment:

    TT , Credit 30/60/90 days
  • Product Origin:

    Wuxi, China( near to Port Shanghai)
  • Color:

    Plain, Sliver, Copper, Brass
  • Min order:

    1000pcs
  • Lead Time:

    7-35days

Supplier Copper Flat Round Head Solid Rivets



Offering simplicity, reliability, and a rich history, solid rivets are revered as one of the most enduring types of fasteners. Comprising of a solid shaft with a head at one end, these straightforward tools are secured by deforming their headless ends with either a hammer or rivet gun. Solid rivets have become the go-to choice for numerous applications where safety and dependability are paramount.

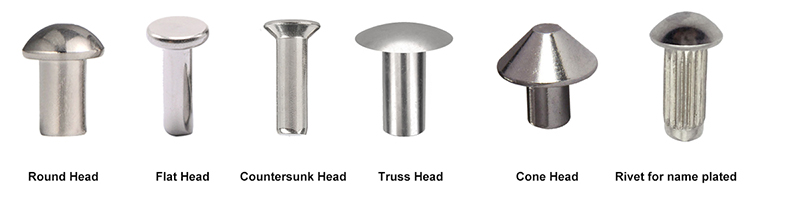

 Solid Rivet Head Type



Borie manufactures solid rivets with a variety of head styles in addition to flat heads.

  1. Flat Head Rivets
  2. 90° Countersunk Head Rivets
  3. Button or Round Head Rivets
  4. Pan Head Rivets
  5. Truss Head Rivets



Common Material Used for Solid Rivet

  1. Steel
  2. Stainless steel
  3. Aluminum
  4. Brass
  5. Copper

To secure the rivet, the terminal end of the shank undergoes impact, pressing, or spinning procedures subsequent to the insertion of the rivet into a workpiece. This process results in the formation (upsetting) of a solid head, constituting the clinched head of the rivet. During impact or press clinching, the force necessary for shaping the clinched head leads to the expansion of the entire shank, effectively filling the hole in the workpiece. The shank's enlargement is most pronounced at the clinched head end of the rivet. In contrast, spun, orbital, or radial rivet clinches demand less force to form, compared to impact or pressed rivets. Consequently, they lack the same shank swelling capability. For most solid rivet applications, pre-punched or drilled holes in the workpiece are requisite



Solid Rivet Benefits:

  1. Low cost fastening
  2. Ease of joint inspection
  3. Easily adopted for automation
  4. Provides a tamper-resistant permanent joint
  5. Virtually no scrap
  6. Minimal investment in machinery
  7. Strongest riveted joint and high shear strength values

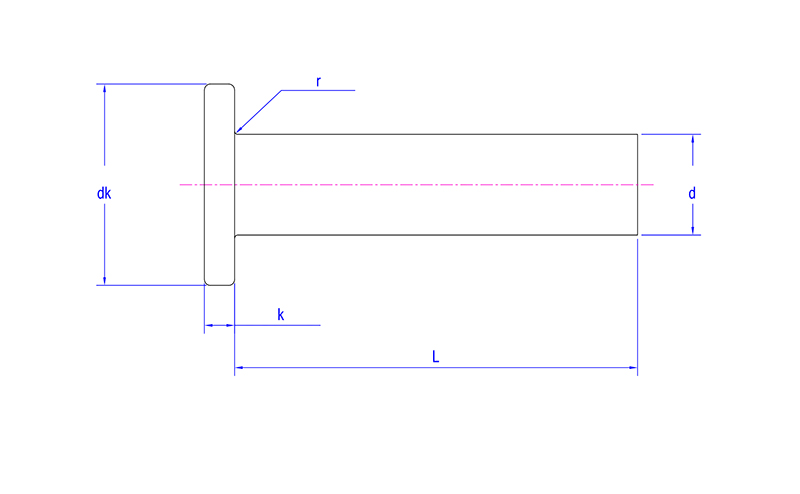

flat round head solid rivet

dk - head diameter

k - head height

L - rivet length

d - the nominal diameter of the rivet

Nominal Diameter  d dk k r
max min max min max min max
Φ2 2.06 1.94 4.24 3.76 1.2 0.8 0.1
Φ2.5 2.56 2.44 5.24 4.76 1.4 1 0.1
Φ3 3.06 2.94 6.24 5.76 1.6 1.2 0.1
Φ3.5 3.58 3.42 7.29 6.71 1.8 1.4 0.3
Φ4 4.08 3.92 8.29 7.71 2 1.6 0.3
Φ5 5.08 4.92 10.29 9.71 2.2 1.8 0.3
Φ6 6.08 5.92 12.35 11.65 2.6 2.2 0.3
Φ8 8.1 7.9 16.35 15.65 3 2.6 0.5
Φ10 10.1 9.9 20.42 19.58 3.44 2.96 0.5



Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related products

Solid Rivets

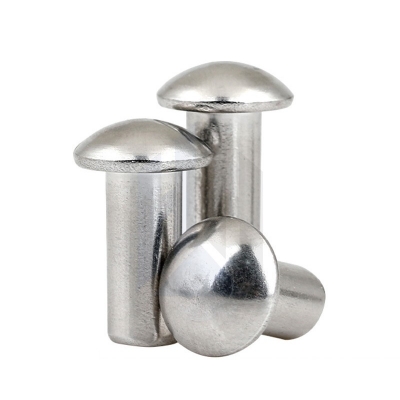

China Factory Stainless Steel Round Head Solid Rivets

Features strong fastening capabilities with a round head design, providing a clean and polished appe...

Flat Head Solid Rivets

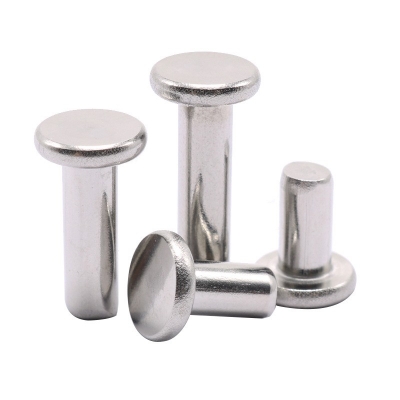

Good Price Flat Round Head Solid Rivets

Flat Round Head Solid Rivet has a flat, circular head that provides a flush finish after installatio...

Truss Head Solid Rivets
Truss Mushroom Button Head Solid Rivets For Sale

Truss mushroom button head solid rivets are high-strength fasteners with a low-profile dome-shaped h...

Csk Head Solid Rivets

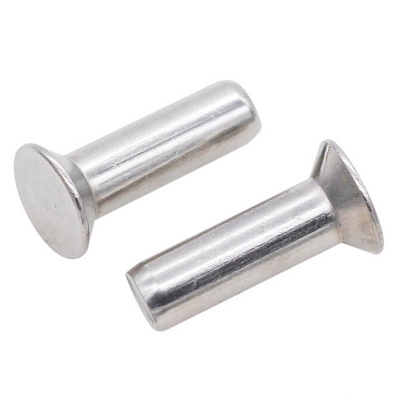

High Quality Countersunk Head Solid Rivets
