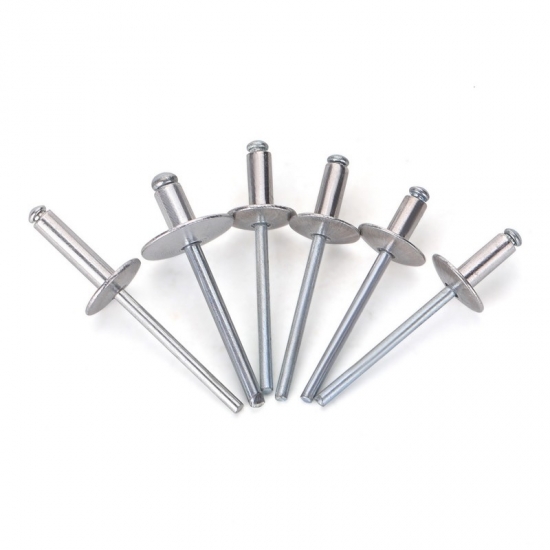

Large flange blind rivets offer enhanced fastening capabilities for applications involving sheet metal or other substantial materials.
Payment:
T/T, Credit 30/60/90 daysProduct Origin:
Wuxi, China( near to Shanghai Port)Color:
Plain, Zinc plated, Color painted( Black, etc.)Min order:
1000pcsLead Time:

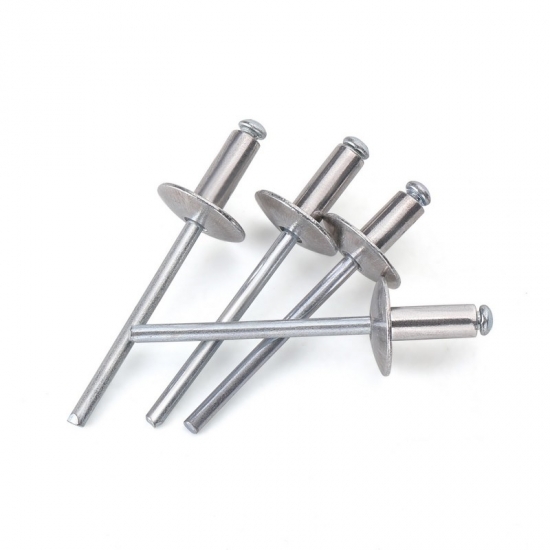

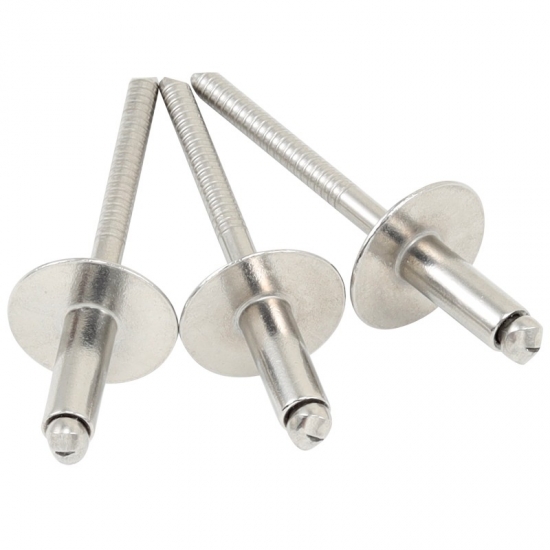

7-35 daysManufacturer Large Flange Open End Blind Rivets

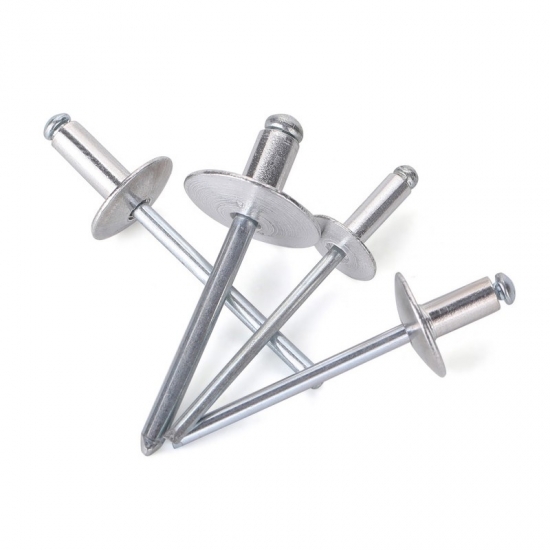

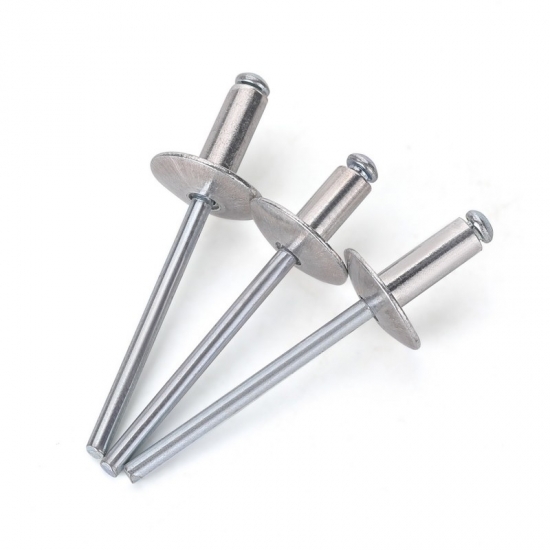

Large flange blind rivets offer enhanced fastening capabilities for applications involving sheet metal or other substantial materials. The large flanges of these rivets ensure additional clamping force. They are designed with a larger flange diameter to effectively cover oversized or irregularly shaped holes and provide a secure grip for soft materials.
To join two materials, the rivet body is inserted into a pre-drilled hole, then a rivet tool is used to pull the top of the mandrel to expand the body, clamping the two materials together. The force of the rivet tool pops off the mandrel, leaving behind the domed head blind rivet.
Diameter sizes from 2.4 to 4.8mm.
Available materials: Steel, Aluminum, Stainless
Material (Body/Mandrel)
Aluminum/ Steel
Stainless steel/ Stainless Steel
Steel/ Steel

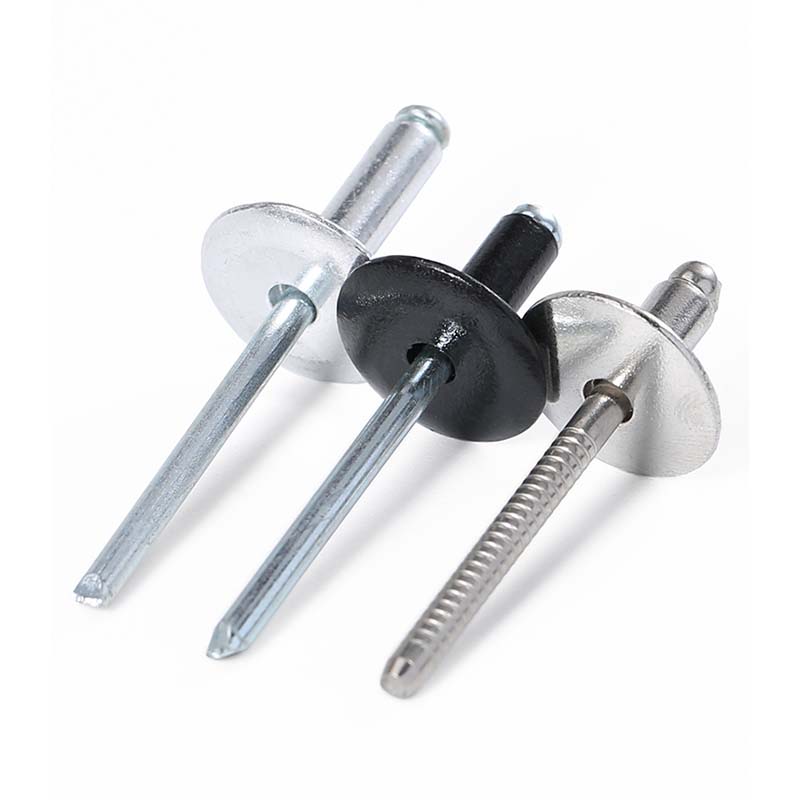

Color painting is available.

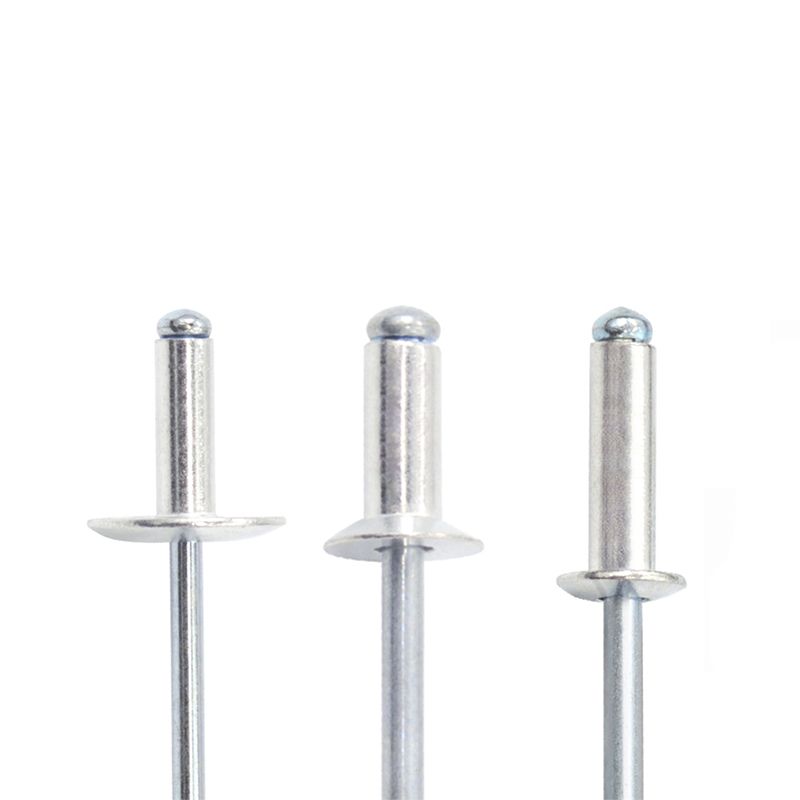

Head Style
Dome Head Rivets
Countersunk Head Rivets
Large Flange Head Rivets
Large flange blind rivets are useful for joining low-density materials. Especially when softer materials are on the front, the large flange spreads the load over a larger area and prevents rivets from penetrating the material.
Advantages
Providing a secure and durable fastening solution for a range of mechanical applications.
Fast and easy to install.
Save time and money without sacrificing quality.

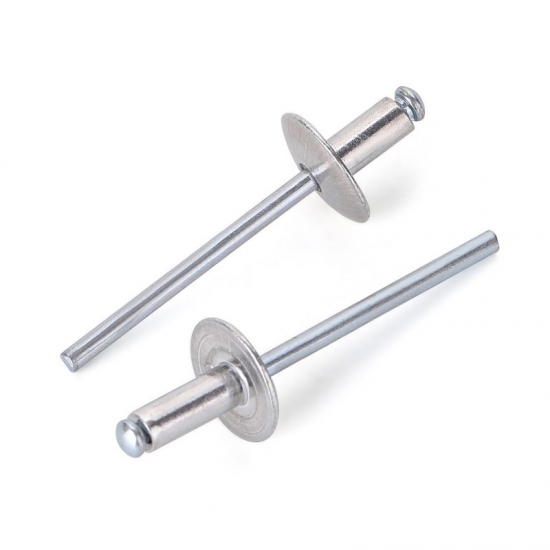

Aluminum/Steel Large Flange Open End Blind Rivet
| RIVET DIAMETER /mm |
RIVET LENGTH /mm |
GRIP RANGE /mm |
HEAD DIAMETER /mm |
HEAD HEIGHT /mm |
MANDREL DIAMETER /mm |
MANDREL LENGTH /mm |
HOLE SIZE /mm |
SHEAR /N |
TENSILE /N |
| D1 | L |  |
D2 | k | d | p | DRILL |  |
 |
| +1/-0 | MIN.-MAX. | MAX. | MAX. | MIN. | MIN. | MIN. | |||
| 3.2 +0.08 -0.15 |
6.0 | 1.0-3.5 | 8.9-9.5 | 1.4 | 1.75 | 26.00 | 3.3-3.4 | 760 N | 980 N |
| 8.0 | 3.5-5.0 | ||||||||
| 10.0 | 5.0-7.0 | ||||||||
| 12.0 | 7.0-9.0 | ||||||||
| 14.0 | 9.0-11.0 | ||||||||
| 4.0 +0.08 -0.15 |
6.0 | 1.0-3.0 | 11.4-12.0 | 1.7 | 2.10 | 27.00 | 4.1-4.2 | 1200 N | 1600 N |
| 8.0 | 3.0-5.0 | ||||||||
| 10.0 | 5.0-6.5 | ||||||||
| 12.0 | 6.5-8.5 | ||||||||
| 14.0 | 8.5-10.5 | ||||||||
| 16.0 | 10.5-12.5 | ||||||||
| 18.0 | 12.5-14.5 | ||||||||
| 20.0 | 14.5-16.5 | ||||||||
| 4.8 +0.08 -0.15 |
8.0 | 2.5-4.0 | 13.4-14.0 | 1.8 | 2.63 | 28.00 | 4.9-5.0 | 1690 N | 2230 N |
| 10.0 | 4.0-6.0 | ||||||||
| 12.0 | 6.0-8.0 | ||||||||
| 14.0 | 8.0-10.0 | ||||||||
| 16.0 | 10.0-12.0 | ||||||||
| 18.0 | 12.0-14.0 | ||||||||
| 20.0 | 12.0-16.0 | ||||||||
| 25.0 | 16.0-21.0 | ||||||||
| 30.0 | 21.0-25.0 | ||||||||
| 35.0 | 25.0-30.0 | ||||||||
| 10.0 | 4.0-6.0 | 15.4-16.0 | 2.0 | 2.95 | 4.9-5.0 | 1690 N | 2230 N | ||
| 12.0 | 6.0-8.0 | ||||||||
| 14.0 | 8.0-10.0 | ||||||||
| 16.0 | 10.0-12.0 | ||||||||
| 18.0 | 12.0-14.0 | ||||||||
| 20.0 | 12.0-16.0 | ||||||||
| 25.0 | 16.0-21.0 | ||||||||
| 30.0 | 21.0-25.0 | ||||||||
| 35.0 | 25.0-30.0 |
Production Process
Step 1
Blind rivet machine---making the rivet body
Step 2
Nail making machine---making the mandrel
Step 3
Assembly machine--finish the assembly of rivet body and the mandrel
Package
Bulk carton+ Pallet, each carton weights 20-25kgs
Small box+ carton+ pallet
Providing custom packaging service(poly bag, plastic bag, customer's laber)
For express shipment, each carton is covered with transparent wrap film.
Application
Blind rivets, when installed correctly, have versatile applications in various sectors such as Facade, Solar panel brackets, Automobiles, Elevators, Air conditioners, Cabinets, Catering equipment, and Aluminum windows&doors.
