By incorporating an interference lock, Hem lock rivet provides joints that are both highly resistant to vibrations and exceptionally strong.
Payment:
T/T, Credit 30/60/90 daysProduct Origin:
Wuxi, China( near to Shanghai Port)Color:
PlainMin order:
1000pcsLead Time:

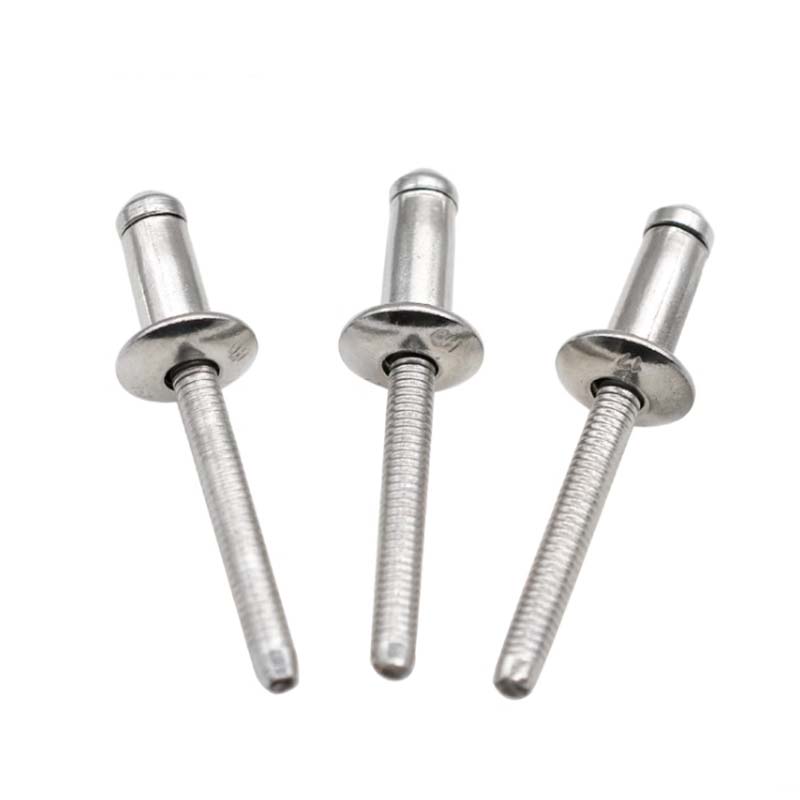

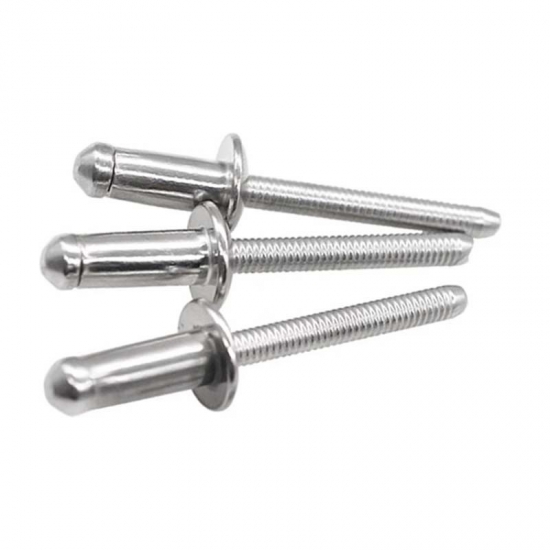

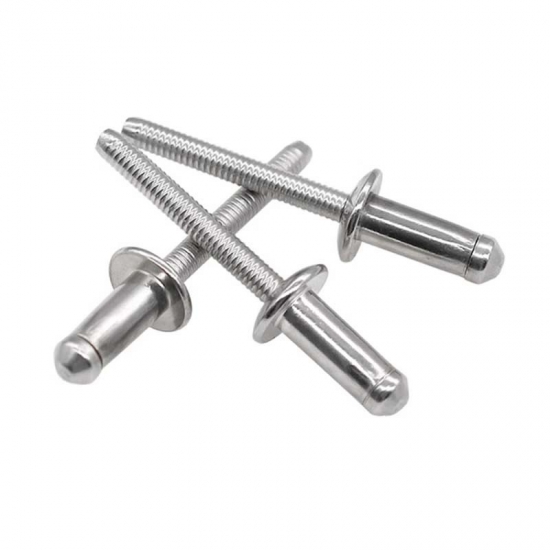

7-35 daysBuy Stainless Steel Dome Head Hemlock Blind Rivets Wholesale
By incorporating an interference lock, Hem lock rivet provides joints that are both highly resistant to vibrations and exceptionally strong.
With outstanding shear and tensile strength, along with an expansive blind side bearing area against the rear sheet, this structural breakstem fastener ensures optimal performance. The broad blind side bearing zone not only spreads the load evenly but also effectively prevents any potential creep.
Hem lock rivet can be used to fasten metal to metal, metal to plastic, and thin sheet to thick metal.
Application: automotive, warehouse racking, and ladders.
Diameter sizes: 4.8mm, 6.4mm, 7.8mm
Available materials: Aluminum, Steel, Stainless Steel

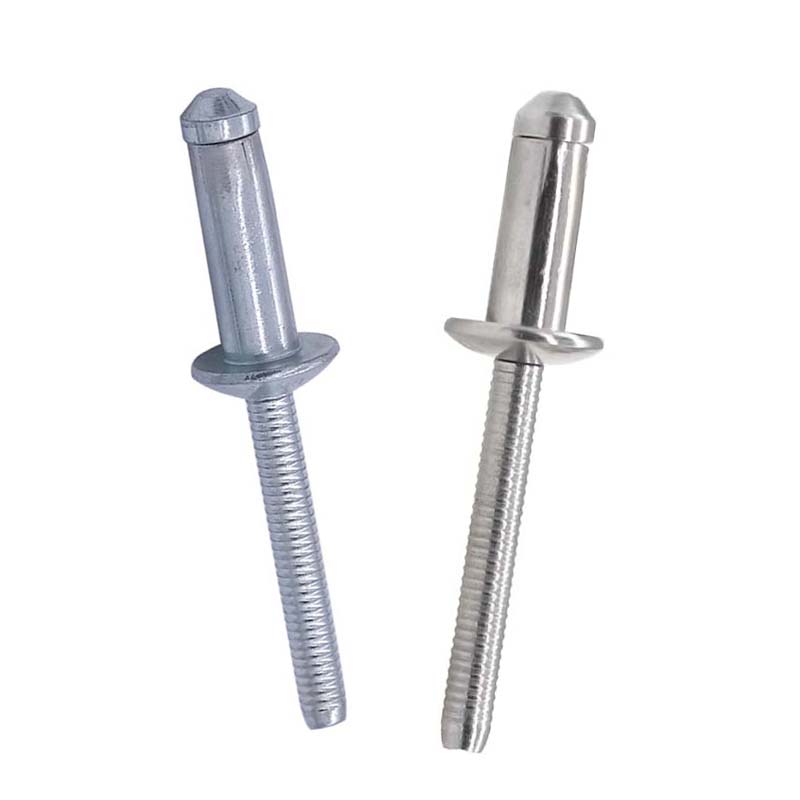

Material (Body/Mandrel)
Aluminum/ Aluminum
Steel/ Steel
Stainless steel/ Stainless steel
Head Style
Dome Head Rivets
Advantages
Structural breakstem rivet: exceptional shear and tensile strength.
Interference lock formed by a splined stem, provides strong, vibration resistant joints.
Spreads the tail bearing/clamp load on the rear sheet.

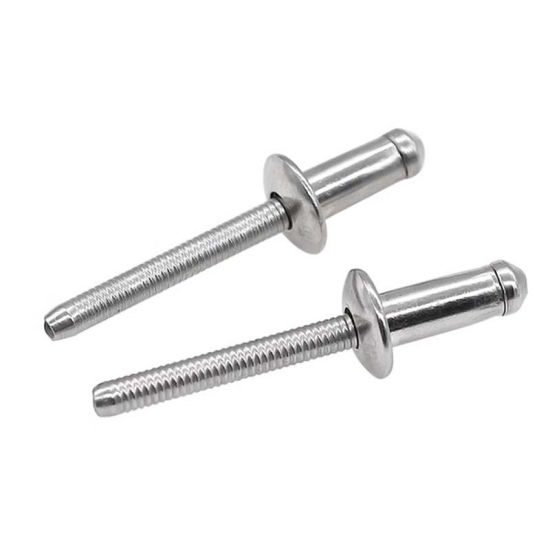

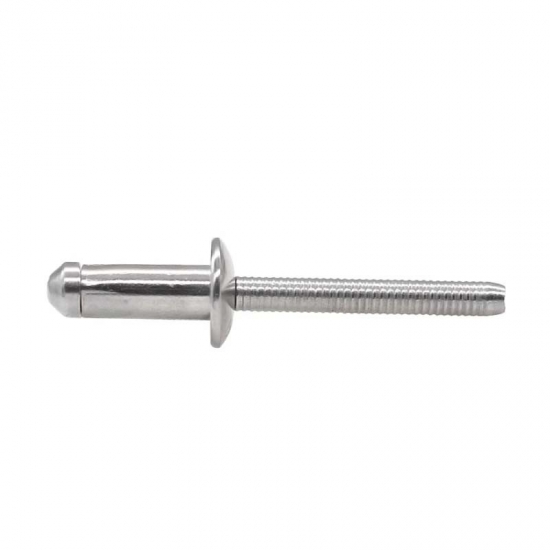

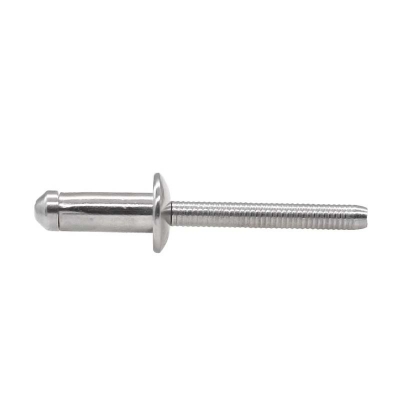

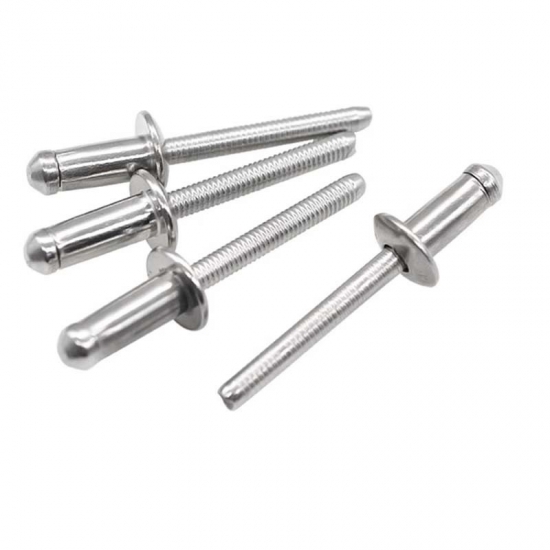

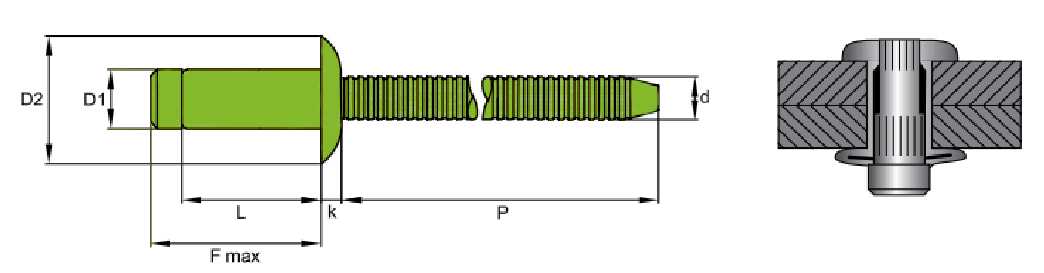

SS/SS Dome Head Hem Lock Blind Rivet
| RIVET DIAMETER /mm |
RIVET LENGTH /mm |
GRIP RANGE /mm |
HEAD DIAMETER /mm |
HEAD HEIGHT /mm |
MANDREL DIAMETER /mm |
MANDREL LENGTH /mm |
HOLE SIZE /mm |
SHEAR /N |
TENSILE /N |
| D1 | L |  |
D2 | k | d | p | DRILL |  |
 |
| +1/-0 | MAX. | MAX. | MAX. | MIN. | MIN. | MIN. | |||
| 4.8 +0.08 -0.15 |
9.0 | 1.5-3.5 | 10.2 | 2.5 | 3.10 | 27.00 | 4.9-5.1 | 6000 N | 4900 N |
| 11.5 | 3.5-6.0 | 6800 N | 4900 N | ||||||
| 14.0 | 6.0-8.5 | 6800 N | 4900 N | ||||||
| 16.5 | 8.5-11.0 | 6800 N | 4900 N | ||||||
| 19.0 | 11.0-13.0 | 6800 N | 4900 N | ||||||
| 6.4 +0.08 -0.15 |
10.5 | 2.00-4.50 | 13.4 | 3.5 | 4.20 | 28.00 | 6.6-6.9 | 14300 N | 8300 N |
| 12.5 | 4.00-6.50 | 14500 N | 8300 N | ||||||
| 14.5 | 6.00-8.50 | 14500 N | 8300 N | ||||||
| 16.5 | 8.00-10.50 | 14500 N | 8300 N | ||||||
| 18.5 | 10.00-12.50 | 14500 N | 8300 N | ||||||
| 20.5 | 12.00-14.50 | 14500 N | 8300 N | ||||||
| 22.5 | 13.00-16.00 | 14500 N | 8300 N | ||||||
| 24.5 | 15.00-18.00 | 14500 N | 8300 N | ||||||
| 26.5 | 17.00-20.00 | 14500 N | 6400 N | ||||||
| 7.8 +0.08 -0.15 |
13.5 | 4.0-7.0 | 18.0 | 4.2 | 5.20 | 28.00 | 8.0-8.3 | 20000 N | 12500 N |
| 16.5 | 7.0-10.0 | 21500 N | 12500 N | ||||||
| 19.5 | 9.0-12.0 | 21500 N | 12500 N | ||||||
| 22.5 | 12.0-16.0 | 21500 N | 12500 N |
Production Process
Step 1
Blind rivet machine---making the rivet body
Step 2
Nail making machine---making the mandrel
Step 3
Assembly machine--finish the assembly of rivet body and the mandrel
Package
Regular package is small box+ carton+ pallet, or bulk in carton, each carton weights 20-25kgs.
Borie Fasteners can also provide custom packaging service, such as poly bag or plastic bag with client's logo and information.
Application
Blind rivets can be used just about anywhere if they are properly installed. Most of them are used in Facade, Solar panel bracket, Automoblie, Elevator, Air conditioner, Cabinet, Catering equipment, Aluminum windows&doors, etc..
Hem lock rivet is designed with an interference lock mechanism to create highly durable joints that ...
Borie Fasteners is a professional Hemlock rivet manufacturer and supplier, we are committed to provi...
Borie Fasteners provide Hemlock rivet OEM&ODM service, we are committed to providing you with on...
Round Head Semi Tubular Rivet is a versatile fastening solution widely used in various industries. I...
A flat head solid rivet is a type of fastener used to join two or more materials together permanentl...

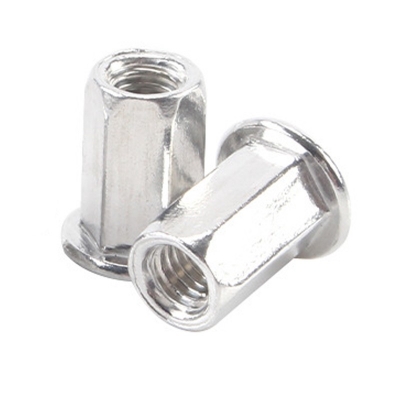

Full hex design features a larger body diameter that results in increased thread strength and torque...
