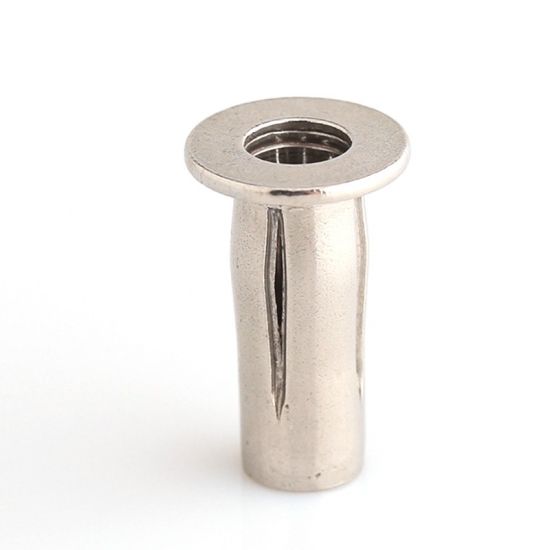

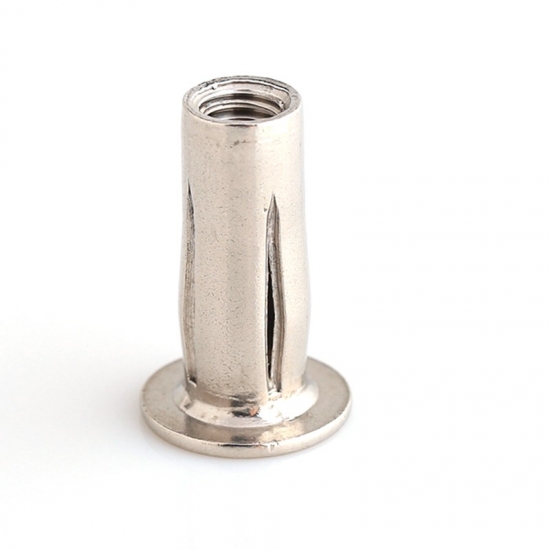

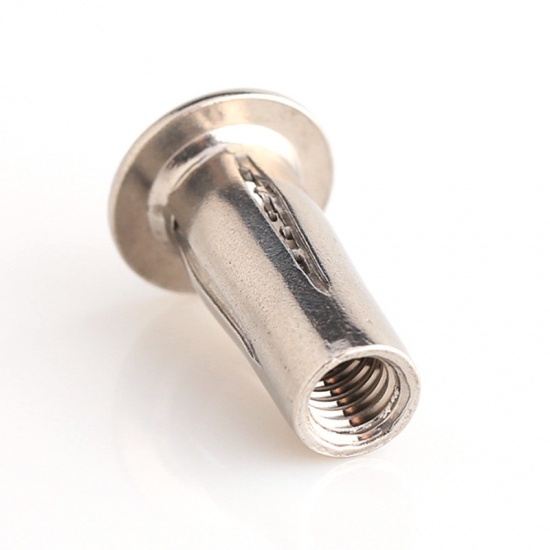

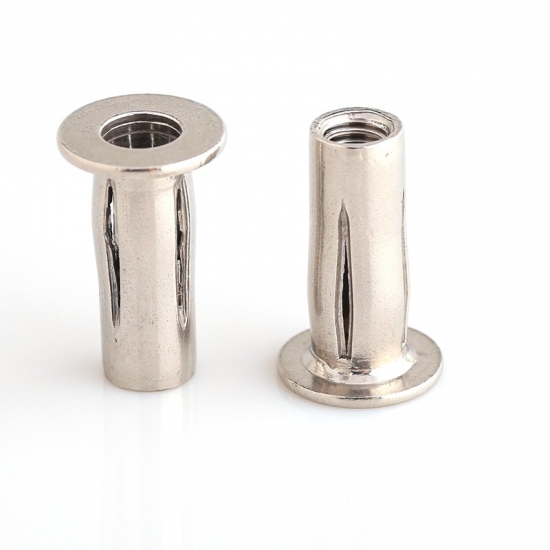

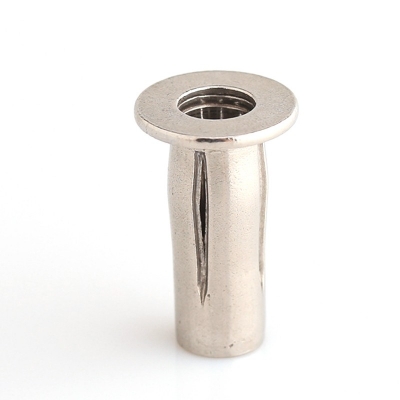

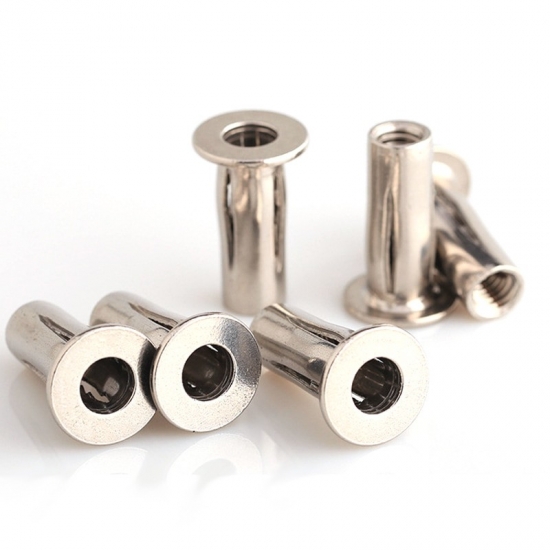

Pre-bulbed flat head cross insert rivet nut is a versatile fastener known for its excellent strength and durability. It features a flat head design with a pre-bulbed body, allowing for easy installation and providing a secure grip in various materials.
Payment:
TT , Credit 30/60/90 daysProduct Origin:
Wuxi, China( near to Port Shanghai)Color:
Plain, Zinc plated, Black, Dacromet, etcMin order:
1000pcsLead Time:
7-35daysWhat is Pre-bulbed Nut?
A pre-bulbed nut is a type of fastener that is designed with a bulged or enlarged portion on one end. The bulbed portion typically has a larger diameter compared to the rest of the nut. This design feature allows the nut to securely grip into a pre-drilled or punched hole in a material, providing a strong and reliable connection.
The application of pre-bulbed nuts is commonly found in industries such as automotive, aerospace, construction, and general engineering. They are used to create threaded connections in thin or soft materials where traditional nuts may not be suitable. The bulbed portion of the nut provides a larger bearing surface, distributing the load and reducing the risk of damage to the material.
Pre-bulbed nuts are often used in conjunction with sheet metal, plastic, or fiberglass, where they provide a solid fastening solution. They can be used to join panels, brackets, ductwork, or other components where a threaded connection is required. By using pre-bulbed nuts, manufacturers can simplify assembly processes, achieve higher levels of structural integrity, and improve overall product performance.
Material Used For Pre-bulbed Nut
Jack nuts are generally made from various materials to suit different applications. Some common materials used for jack nuts include:
Assembly Applications
* Designed for superior pullout resistance in plastics and thin sheet metal.
* Pre-bulbed design requires less installation load.
* Pre-bulbed inserts require less installation load than straight shank and require slightly larger mounting hole size.
* Other materials available.

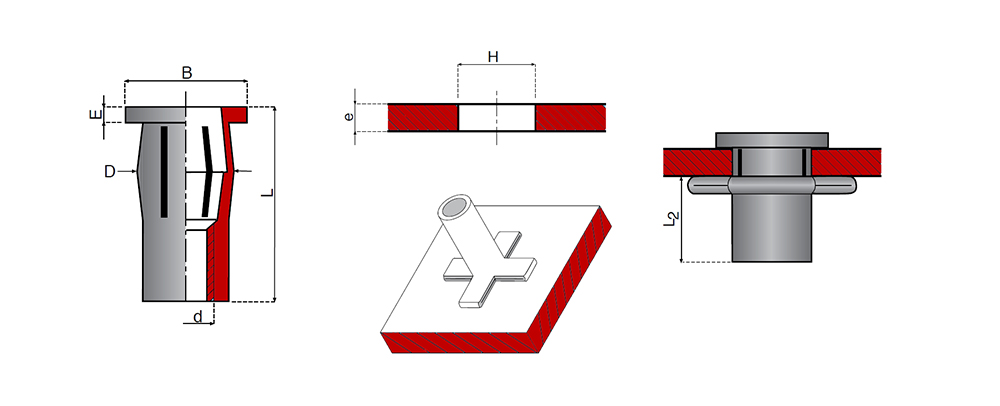

Thread Size | Grip Range | Hole Size | Body Diameter | Head Height | Head Diameter | Overall Length | Installed Length | Note | |
Min. | Max. | ||||||||
d | e | H | D | E | B | L | L2 | ||
10-32 | 0.020-0.175 | 0.312 | 0.317 | 0.31 | 0.038 | 0.5 | 0.8 | 0.425 | All Dimensions Shown In Inches |
10-32 | 0.175-0.320 | 0.312 | 0.317 | 0.31 | 0.038 | 0.5 | 0.94 | 0.425 | |
1/4-20 | 0.020-0.280 | 0.386 | 0.391 | 0.384 | 0.058 | 0.625 | 1.03 | 0.505 | |
1/4-20 | 0.280-0.500 | 0.386 | 0.391 | 0.384 | 0.058 | 0.625 | 1.26 | 0.505 | |
5/16-18 | 0.020-0.280 | 0.484 | 0.489 | 0.482 | 0.062 | 0.75 | 1.18 | 0.57 | |
5/16-18 | 0.280-0.500 | 0.484 | 0.489 | 0.482 | 0.062 | 0.75 | 1.41 | 0.57 | |
3/8-16 | 0.020-0.280 | 0.562 | 0.569 | 0.56 | 0.088 | 0.875 | 1.27 | 0.605 | |
3/8-16 | 0.280-0.500 | 0.562 | 0.569 | 0.56 | 0.088 | 0.875 | 1.49 | 0.605 | |
M6x1.0 | 0.50-7.10 | 9.8 | 9.93 | 9.76 | 1.5 | 15.9 | 26.2 | 12.8 | All Dimensions Shown In mm |
M6x1.0 | 7.10-12.70 | 9.8 | 9.93 | 9.76 | 1.5 | 15.9 | 32 | 12.8 | |
M8x1.25 | 0.50-7.10 | 12.29 | 12.42 | 12.25 | 1.57 | 19 | 30 | 14.5 | |
M8x1.25 | 7.10-12.70 | 12.29 | 12.42 | 12.25 | 1.57 | 19 | 35.8 | 14.5 | |
M10x1.50 | 0.50-7.10 | 14.27 | 14.45 | 14.23 | 2.24 | 22.2 | 32.3 | 15.4 | |
M10x1.50 | 7.10-12.70 | 14.27 | 14.45 | 14.23 | 2.24 | 22.2 | 37.8 | 15.4 |
