Uni grip rivets offer a high-strength fastening solution ideal for thin sheet metals. The stem is retained during assembly, so it can provide strong, vibration resistant joints.
Payment:
T/T,Product Origin:
Wuxi, China( near to Shanghai Port)Color:
Plain, Color painted( Black, White, Red, Blue, etcMin order:
10000pcsLead Time:

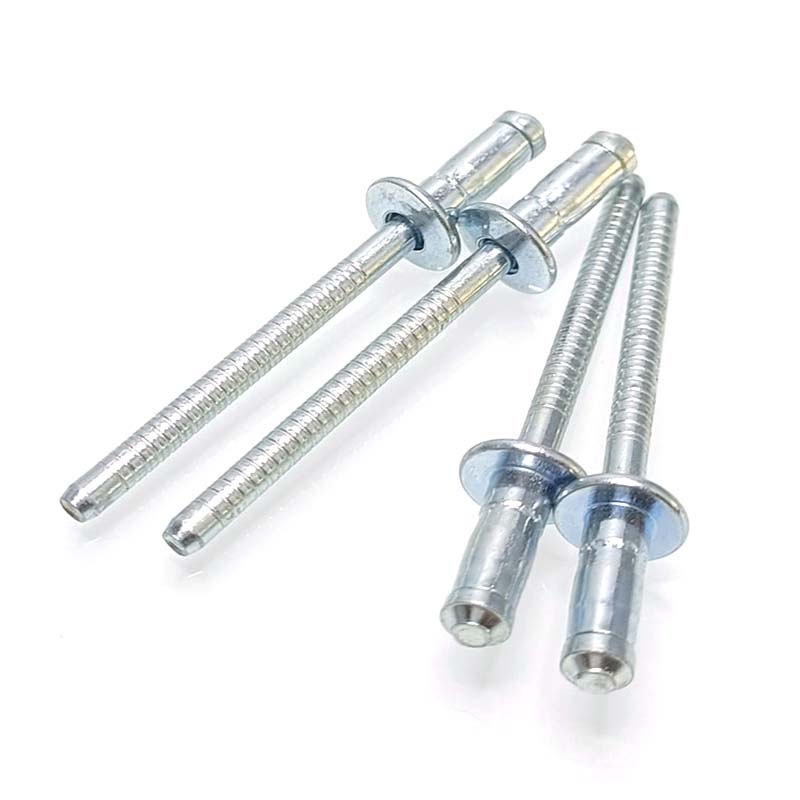

7-10 daysFull Steel Uni Grip Blind Rivets

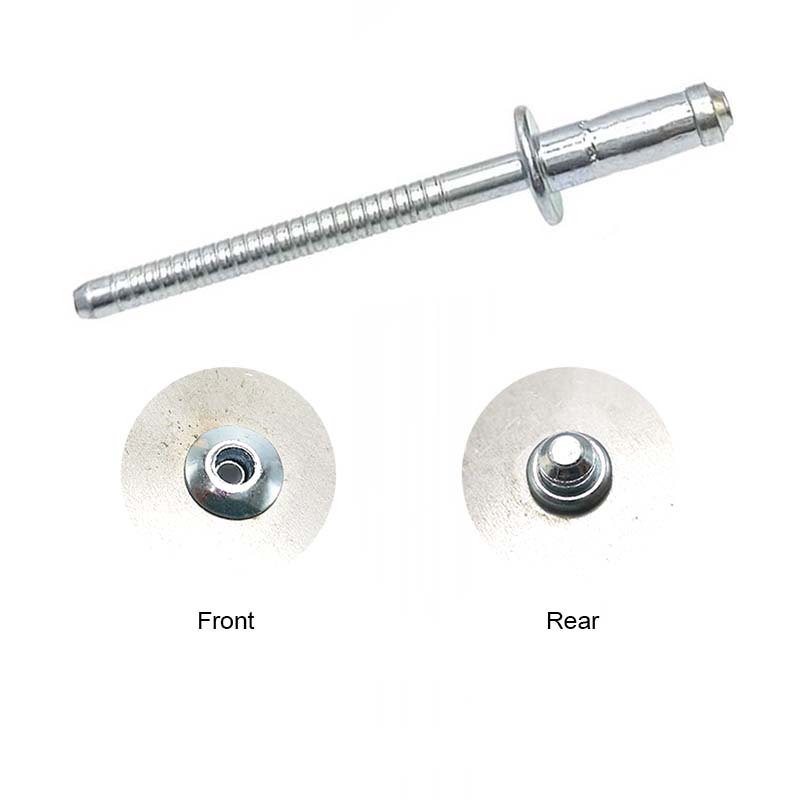

Uni grip rivets are a great choice for securely fastening thin sheet metals. They offer a strong, vibration resistant joint by keeping the stem intact during assembly. This not only prevents damage, electric leakage or marowak sound caused by a loose mandrel, but also compensates for irregular, oversized, slotted or misaligned holes. Additionally, the Uni grip rivets distribute the load on the rear sheet, effectively preventing any movement in non-standard holes.
Mainly used for riveting various thin-walled structural parts of vehicles, ships, construction, machinery, electronics, containers, aluminum boxes, equipment boxes and other industries.
Diameter sizes from 3.2 to 6.0mm.

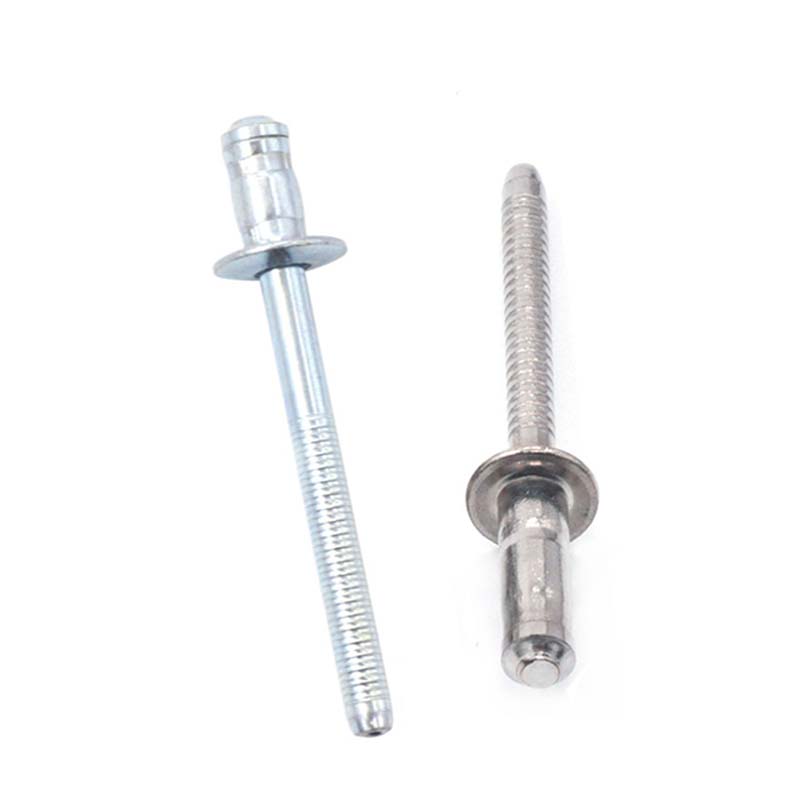

Available materials: Full Steel& Full Stainless Steel
Material (Body/Mandrel)
Steel/ Steel

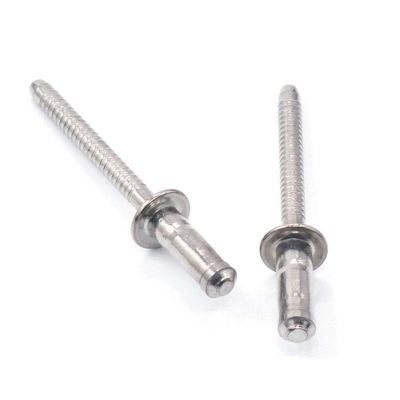

Stainless Steel/ Stainless Steel
Head Style
Dome Head Rivets
Advantages
High shearing strength and tensile strength.
Provide the solid and vibration resistant connection.
Provide the large blind side bearing area to be close to rear plate.
Mandrel pressure bearing load/ riveting load is dispersed on the blind side sheets which makes it to be ideally used in sheet materials.
Good hole filling which can provide supplementary riveting for the irregular and over tolerance hole, oval or malposition holes.
Mandrel locking mechanism which avoids damage, electric leak-age or marowak sound caused by the loosening of mandrel.

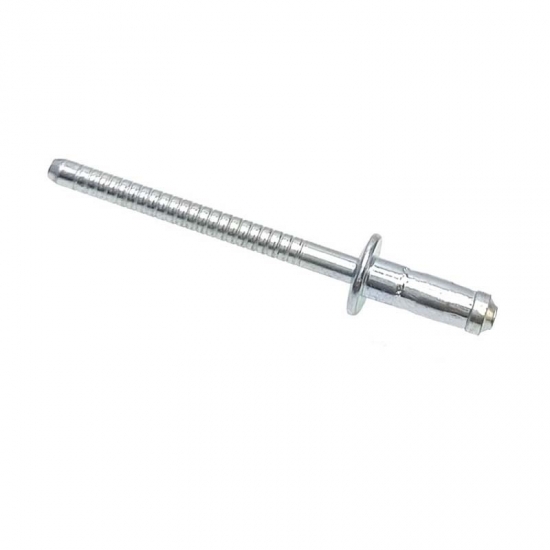

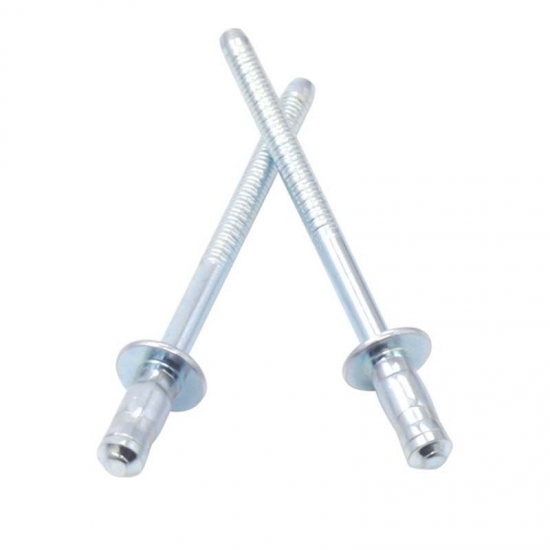

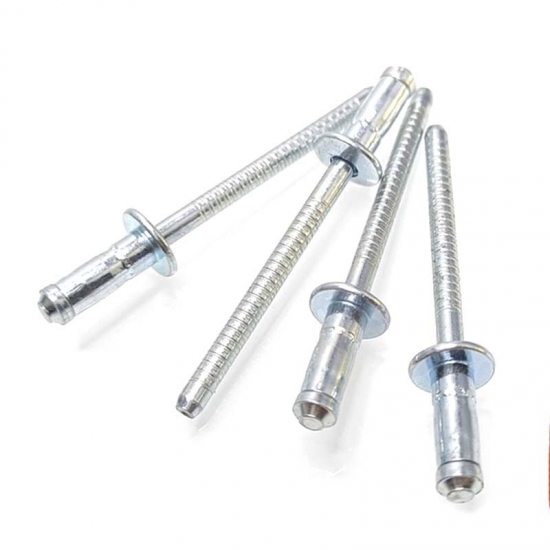

Full Steel Uni Grip Blind Rivets
RIVET DIAMETER /mm |
RIVET LENGTH /mm |
GRIP RANGE /mm |
HEAD DIAMETER /mm |
HEAD HEIGHT /mm |
MANDREL DIAMETER /mm |
MANDREL LENGTH /mm |
HOLE SIZE /mm |
SHEAR /N |
TENSILE /N |

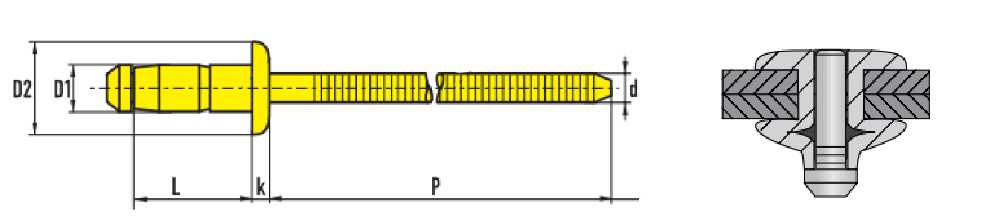

D1 | L | ![]() |
D2 | k | d | p | DRILL | ![]() |
![]() |
+1/-0 | MIN.-MAX. | MAX. | MAX. | MIN. | MIN. | MIN. | |||
3.2 +0.08 -0.15 |
6.5 | 1.0-3.0 | 5.8-6.3 | 1.1 | 1.90 | 26.00 | 3.3-3.4 | 1200 N | 1300 N |
9.0 | 3.0-5.0 | 1700 N | |||||||
11.5 | 5.0-7.0 | 2500 N | |||||||
4.0 +0.08 -0.15 |
7.5 | 1.0-3.0 | 7.5-8.0 | 1.3 | 2.50 | 27.00 | 4.1-4.2 | 2400 N | 2800 N |
9.5 | 3.0-5.0 | 3500 N | |||||||
12.5 | 5.0-7.0 | 4100 N | |||||||
4.8 +0.08 -0.15 |
9.0 | 1.6-6.4 | 9.0-9.6 | 1.5 | 2.90 | 28.00 | 4.9-5.0 | 3600 N | 3800 N |
11.5 | 5.0-11.0 | 4200 N | |||||||
14.5 | 7.0-13.0 | 5600 N | |||||||
6.0 +0.08 -0.15 |
10.0 | 1.5-4.0 | 11.7-12.0 | 2.1 | 3.90 | 30.00 | 6.1-6.3 | 4200 N | 5400 N |
13.0 | 3.0-6.0 | 5400 N | |||||||
16.0 | 6.0-9.0 | 8500 N | |||||||
19.0 | 9.0-12.0 | 8500 N |
Production Process
Step 1
Blind rivet machine---making the rivet body
Step 2
Nail making machine---making the mandrel
Step 3
Assembly machine--finish the assembly of rivet body and the mandrel
Package
Regular package is small box+ carton+ pallet, or bulk in carton, each carton weights 20-25kgs.
Borie Fasteners can also provide custom packaging service, such as poly bag or plastic bag with client's logo and information.
Application
Blind rivets can be used just about anywhere if they are properly installed. Most of them are used in Facade, Solar panel bracket, Automoblie, Elevator, Air conditioner, Cabinet, Catering equipment, Aluminum windows&doors, etc..
