Hem lock rivet is designed with an interference lock mechanism to create highly durable joints that are resistant to vibrations.
Payment:
T/T, Credit 30/60/90 daysProduct Origin:
Wuxi, China( near to Shanghai Port)Color:
Plain, Zinc PlatedMin order:
1000pcsLead Time:

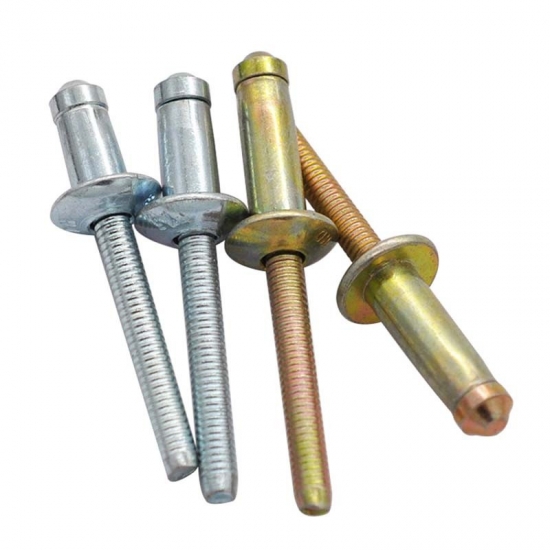

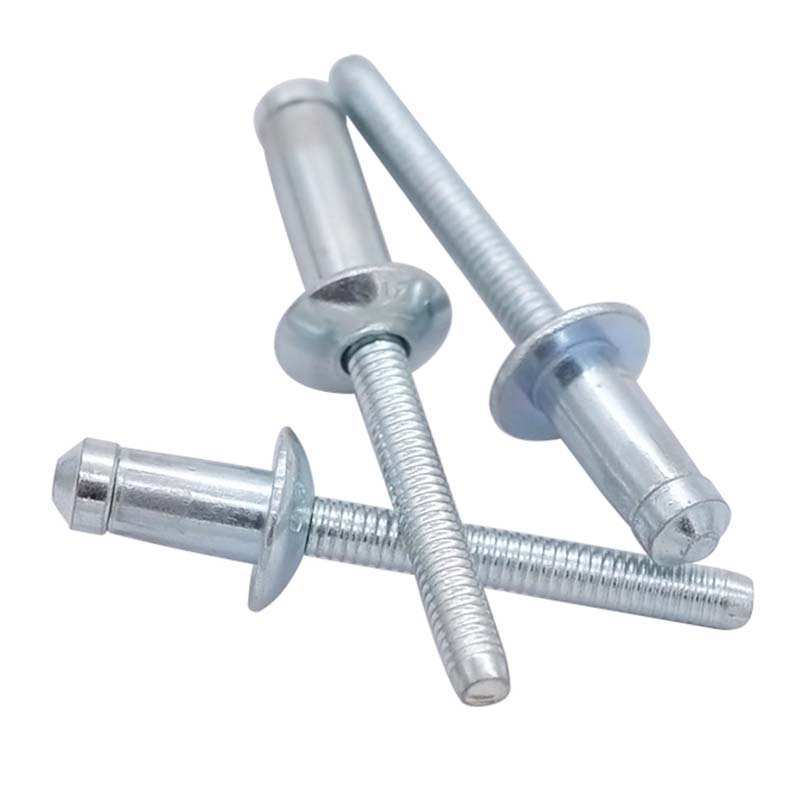

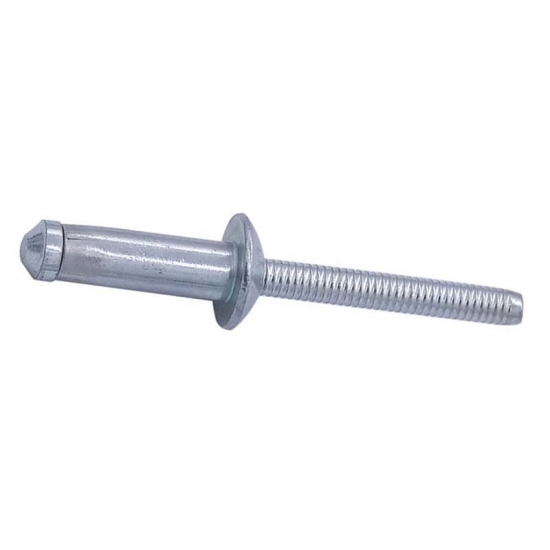

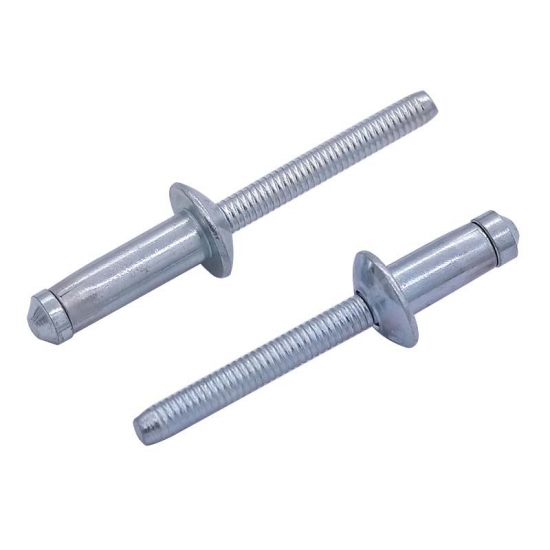

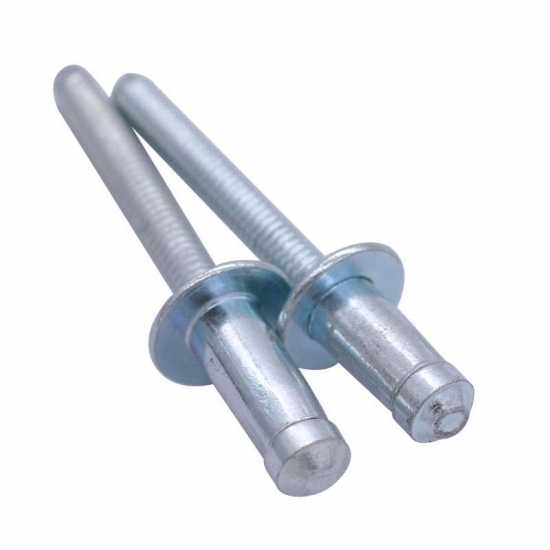

7-35 daysChina Manufacturer All Steel Hem Lock Blind Rivets
Hem lock rivet is designed with an interference lock mechanism to create highly durable joints that are resistant to vibrations.
This structural breakstem fastener exhibits extraordinary shear and tensile strength, accompanied by a substantial blind side bearing region against the rear sheet. Such a significant blind side bearing area effectively distributes the load while preventing creep.
Hem lock rivet can be used to fasten metal to metal, metal to plastic, and thin sheet to thick metal.
Application: automotive, warehouse racking, and ladders.
Diameter sizes: 4.8mm, 6.4mm, 7.8mm
Available materials: Aluminum, Steel, Stainless Steel
Material (Body/Mandrel)
Aluminum/ Aluminum
Steel/ Steel
Stainless steel/ Stainless steel
Head Style
Dome Head Rivets
Advantages
Structural breakstem rivet: exceptional shear and tensile strength.
Interference lock formed by a splined stem, provides strong, vibration resistant joints.
Spreads the tail bearing/clamp load on the rear sheet.

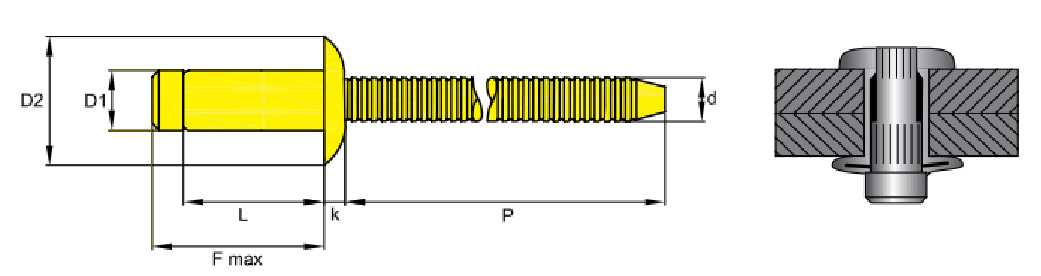

ST/ST Dome Head Hem Lock Blind Rivets
| RIVET DIAMETER /mm |
RIVET LENGTH /mm |
GRIP RANGE /mm |
HEAD DIAMETER /mm |
HEAD HEIGHT /mm |
MANDREL DIAMETER /mm |
MANDREL LENGTH /mm |
HOLE SIZE /mm |
SHEAR /N |
TENSILE /N |
| D1 | L |  |
D2 | k | d | p | DRILL |  |
 |
| +1/-0 | MAX. | MAX. | MAX. | MIN. | MIN. | MIN. | |||
| 4.8 +0.08 -0.15 |
9.0 | 1.5-3.5 | 10.2 | 2.5 | 3.10 | 27.00 | 4.9-5.1 | 4500 N | 3500 N |
| 11.5 | 3.5-6.0 | 6000 N | 3500 N | ||||||
| 14.0 | 6.0-8.5 | 6200 N | 3500 N | ||||||
| 16.5 | 8.5-11.0 | 6200 N | 3500 N | ||||||
| 19.0 | 11.0-13.5 | 6200 N | 3500 N | ||||||
| 6.4 +0.08 -0.15 |
9.0 | 1.5-3.5 | 13.4 | 3.5 | 4.20 | 28.00 | 6.6-6.9 | 6800 N | 6400 N |
| 10.5 | 2.8-4.8 | 9200 N | 6400 N | ||||||
| 12.5 | 4.8-6.8 | 10000 N | 6400 N | ||||||
| 14.5 | 6.8-8.8 | 10000 N | 6400 N | ||||||
| 16.5 | 8.8-10.8 | 11000 N | 6400 N | ||||||
| 18.5 | 10.8-12.8 | 11000 N | 6400 N | ||||||
| 20.5 | 12.8-14.8 | 11000 N | 6400 N | ||||||
| 22.5 | 14.5-16.8 | 11000 N | 6400 N | ||||||
| 24.5 | 16.8-18.8 | 11000 N | 6400 N | ||||||
| 26.5 | 18.8-20.8 | 11000 N | 6400 N | ||||||
| 28.5 | 20.8-22.8 | 11000 N | 6400 N | ||||||
| 30.5 | 22.8-24.8 | 11000 N | 6400 N | ||||||
| 32.5 | 24.8-26.8 | 11000 N | 6400 N | ||||||
| 7.8 +0.08 -0.15 |
13.5 | 4.0-7.0 | 18.0 | 4.2 | 5.20 | 28.00 | 8.1-8.3 | 13500 N | 9100 N |
| 16.5 | 7.0-10.0 | 16000 N | 9100 N | ||||||
| 19.5 | 9.0-13.0 | 16000 N | 9100 N | ||||||
| 22.5 | 13.0-16.0 | 16000 N | 9100 N |
Production Process
Step 1
Blind rivet machine---making the rivet body
Step 2
Nail making machine---making the mandrel
Step 3
Assembly machine--finish the assembly of rivet body and the mandrel
Package
Regular package is small box+ carton+ pallet, or bulk in carton, each carton weights 20-25kgs.
Borie Fasteners can also provide custom packaging service, such as poly bag or plastic bag with client's logo and information.
Application
Blind rivets can be used just about anywhere if they are properly installed. Most of them are used in Facade, Solar panel bracket, Automoblie, Elevator, Air conditioner, Cabinet, Catering equipment, Aluminum windows&doors, etc..
