Cone Round Head Semi Tubular Rivets For Sale

Round Cone Head Semi Tubular Rivets
Round Cone Head Semi Tubular Rivets
Round Cone Head Semi Tubular Rivets
Round Cone Head Semi Tubular Rivets
Round Cone Head Semi Tubular Rivets

Cone Round Head Semi Tubular Rivets For Sale

Cone Round head semi tubular rivets are rivets with a partially hollow tubular shank and a rounded head in a cone shape. They provide strong and permanent fastening in a wide range of applications. These rivets can be customized based on specific requirements.

  • Payment:

    T/T, Credit 30/60/90 days
  • Product Origin:

    Wuxi, China( near to Port Shanghai)
  • Color:

    Plain, Zinc plated, Copper plated, Black, etc
  • Min order:

    1000pcs
  • Lead Time:

    7-35days

Cone Round Head Semi Tubular Rivets For Sale



A semi-tubular rivet is a type of fastener that consists of a cylindrical shank with a head on one end. It is similar to a solid rivet, but with a crucial difference. A semi-tubular rivet has a hole in its center, which makes it semi-tubular rather than fully solid.



The shank of the semi-tubular rivet is inserted through the aligned holes in the materials to be joined. Once in place, the open end of the shank is deformed using a rivet setting tool. This causes the shank to partially collapse, creating a secure and permanent connection between the two materials.



Semi-tubular rivets are commonly used in applications that require robust fastening, such as automotive, construction, and manufacturing industries. They provide excellent strength and stability while offering the advantage of simpler installation compared to solid rivets. The hole in the center of the semi-tubular rivet allows for more controlled deformation during installation and can also be used to attach additional components, such as wires or cables.



Advantages of Semi Tubular Rivet

  • Permanent fasteners with good seam strength
  • Easy to inspect jointly
  • Rivet rivets can be rolled, segmented (starset), spinned, flared, or pressed
  • It can be used to hold similar or different materials for multiple workpieces. It can be used to hold joints tightly together or for hinge assemblies
  • Pipe hole rivets are typically used to pierce and rivet materials (leather-corrugated-plastic-rubber-fabric) without the need for pre-drilling or punching
  • Rivets can also be used with rivet covers to improve the appearance of the riveted ends
  • Long rivets can be applied without bending or bending the rivet handle
  • An inexpensive alternative to threaded fasteners
  • Virtually no scrap is generated during the manufacturing process
  • Easy to adapt to automation



Head Types of Semi Tubular Rivet

  • Oval head semi tubular rivet
  • Truss head semi tubular rivet
  • Flat head semi tubular rivet
  • Countersunk head semi tubular rivet
  • Round head semi tubular rivet
  • Button head semi tubular rivet

semi tubular rivet head type




Common Material Used for Semi Tubular Rivet

  • Steel ((finished in Zinc Plated)
  • Iron (plain finish)
  • Stainless steel 304 & SS316 (plain finish)
  • Aluminum (plain finish)
  • Brass(plain finish)
  • Copper(plain finish)

material type of semi tubular rivet

Plating & Coating

  • Zinc plating: Corrosion resistance
  • Nickel plating: Decorativeness, Abrasive resistance
  • Copper plating: Electrical Conductivity
  • Tin plating: Solderability
  • Gold plating: Electrical Conductivity, Corrosion resistance, Decorativeness
  • Silver plating:Conductivity, Decorativeness
  • Chrome plating: Corrosion resistance, Abrasion resistance, Decorativeness



surface treatment of semi tubular rivet

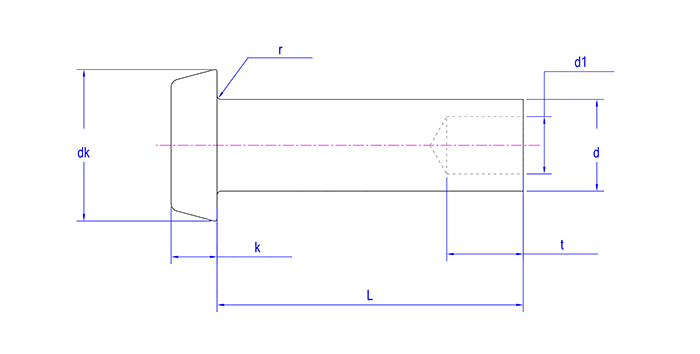

Round cone head semi tubular rivets



Mon dk  k d1  r max
max min max  min max min max  min max  min
Φ1.4 1.46 1.34 2.7 2.3 0.58 0.42 0.77 0.65 1.64 1.16 0.1
Φ1.6 1.66 1.54 3.2 2.8 0.58 0.42 0.87 0.75 1.84 1.36 0.1
Φ2 2.06 1.94 3.74 3.26 0.68 0.52 1.12 0.94 2.24 1.76 0.1
Φ2.5 2.56 2.44 4.74 4.26 0.68 0.52 1.62 1.44 2.74 2.26 0.1
Φ3 3.06 2.94 5.74 5.26 0.88 0.72 2.12 1.94 3.24 2.76 0.1
Φ3.5 3.58 3.42 6.79 6.21 0.88 0.72 2.32 2.14 3.79 3.21 0.3
Φ4 4.08 3.92 7.79 7.21 1.13 0.87 2.62 2.44 4.29 3.71 0.3
Φ5 5.08 4.92 9.79 9.21 1.13 0.87 3.66 3.42 5.29 4.71 0.3
Φ6 6.08 5.92 11.85 11.15 1.33 1.07 4.66 4.42 6.29 5.71 0.3
Φ8 8.1 7.9 15.85 15.15 1.33 1.07 6.16 5.92 8.35 7.65 0.3
Φ10 10.1 9.9 19.42 18.58 1.63 1.37 7.7 7.4 10.35 9.65 0.3
