Blind Rivet Studs are used to join sheet materials together and provide a male threaded fastening point.
Payment:
T/T, Credit 30/60/90 daysProduct Origin:
Wuxi, China( near to Shanghai Port)Color:
Plain, SilverMin order:
1000pcsLead Time:

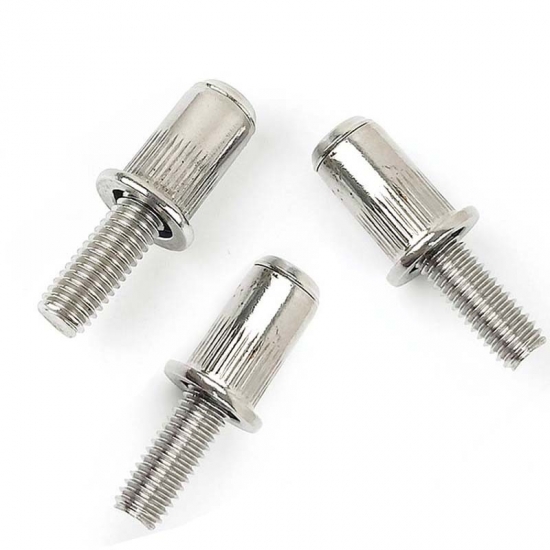

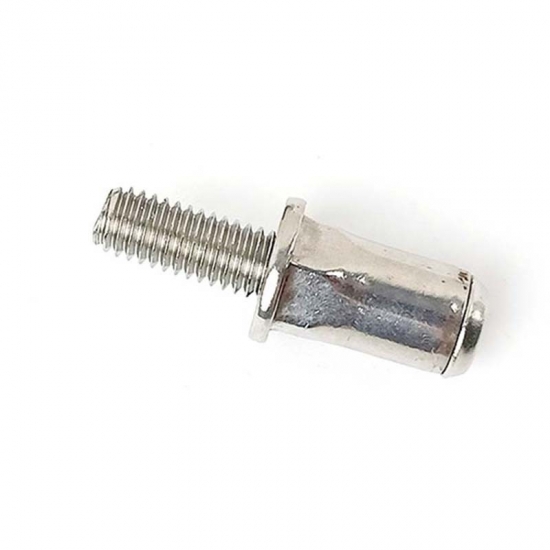

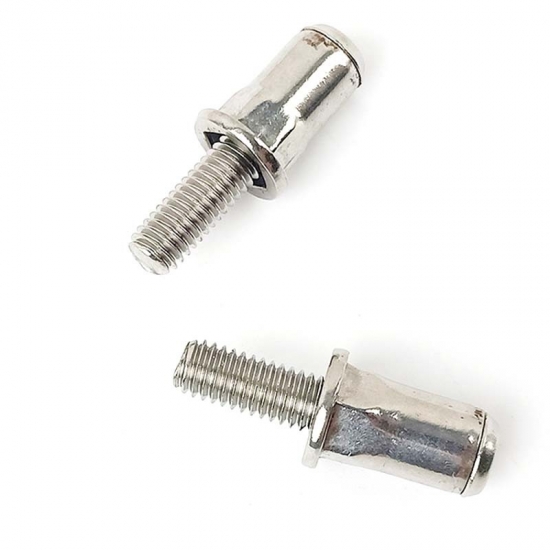

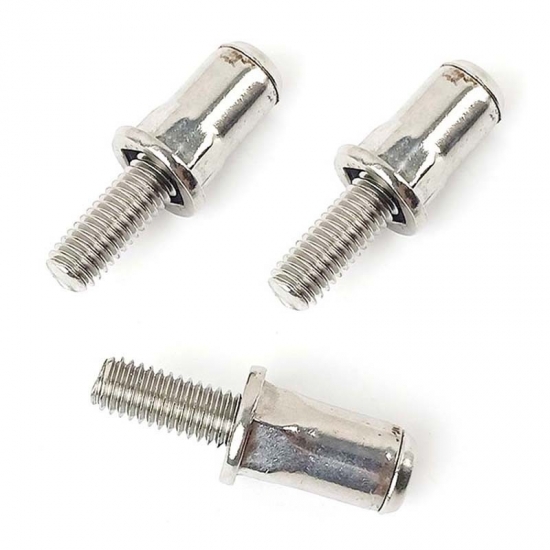

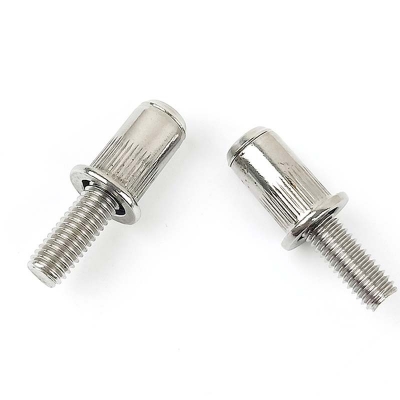

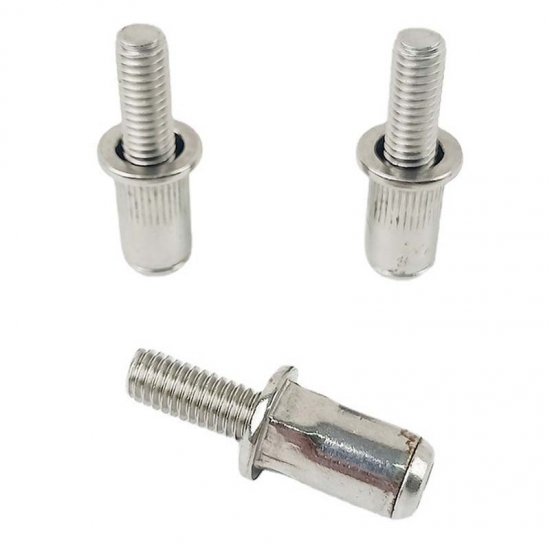

7-35 daysGood Price Stainless Steel Hexagonal Blind Rivet Studs
Blind rivet studs are composed of a rivet nut and a screw, commonly employed for connecting various materials, especially sheet metal or thin-walled structures, by forming a robust threaded connection. Their optimal use is found in drilled or punched holes with hard metric dimensions.
Material
Types
Advantages
How to Install it
Its installation is same as common blind rivets, putting it into a pre-drilled hole, and then using a tool to fasten it.
Dimensions
| d | Thickness e |
Hole D +0.1/0 |
B | E | S* | L | L1 | L2* |
| M5 | 0.5-3.0 | 7.0 | 10.0 | 1.0 | S=4.7-e | 15.0 | 11.0 | 5.5 |
| 0.5-3.0 | 7.0 | 10.0 | 1.0 | S=4.7-e | 20.0 | 11.0 | 5.5 | |
| 0.5-3.0 | 7.0 | 10.0 | 1.0 | S=4.7-e | 25.0 | 11.0 | 5.5 | |
| M6 | 0.5-3.0 | 9.0 | 13.0 | 1.5 | S=5.4-e | 15.0 | 13.0 | 7.5 |
| 0.5-3.0 | 9.0 | 13.0 | 1.5 | S=5.4-e | 20.0 | 13.0 | 7.5 | |
| 0.5-3.0 | 9.0 | 13.0 | 1.5 | S=5.4-e | 25.0 | 13.0 | 7.5 | |
| M8 | 0.5-3.0 | 11.0 | 16.0 | 1.5 | S=5.4-e | 20.0 | 14.0 | 8.5 |
| 0.5-3.0 | 11.0 | 16.0 | 1.5 | S=5.4-e | 25.0 | 14.0 | 8.5 |
The hexagonal body prevents this from turning, making this type of rivet nut widely preferred for re...
Reduced head knurled closed end rivet nuts imporove torque-to-turn resistance for softer materials a...
Flat head round body close end rivet nuts offers a quick, reliable and low-cost solution for i...
Closed end rivet nuts provide a 100% watertight connection, ensuring that the thread remains unaffec...
Flat head full hex blind rivet nuts feature a hexagonal body, a large flange and a close end, result...
The full hex increases its body diameter, enhancing thread strength and torque capability.
Semi hex body close end threaded inserts feature a half hex and a half round body, so it is not only...
Reduced head closed end threaded inserts provide a strong captivated thread in thin materials and in...
