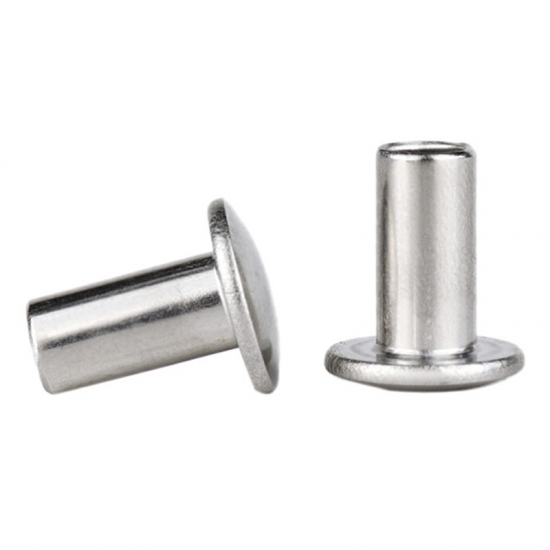

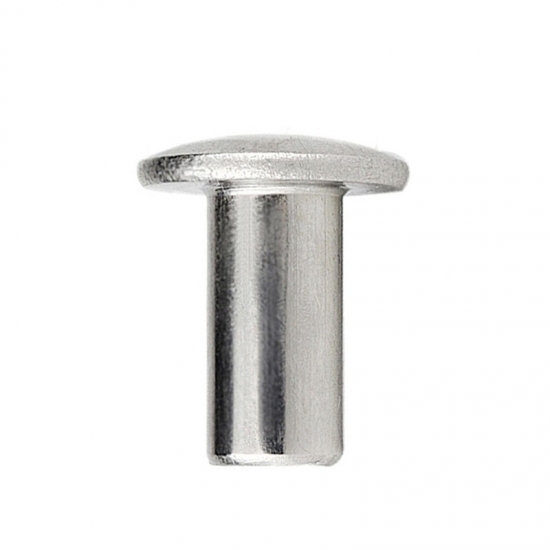

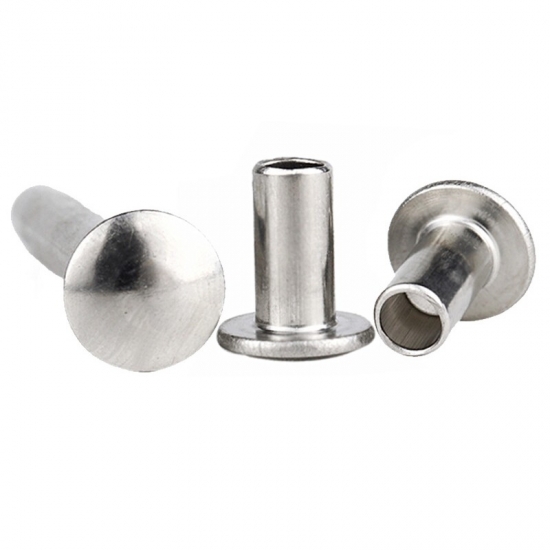

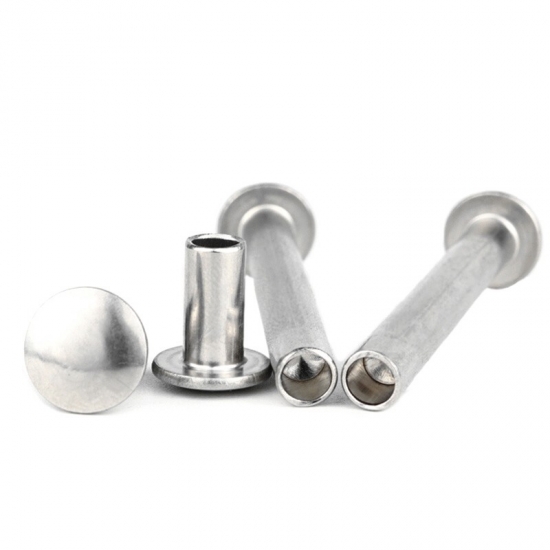

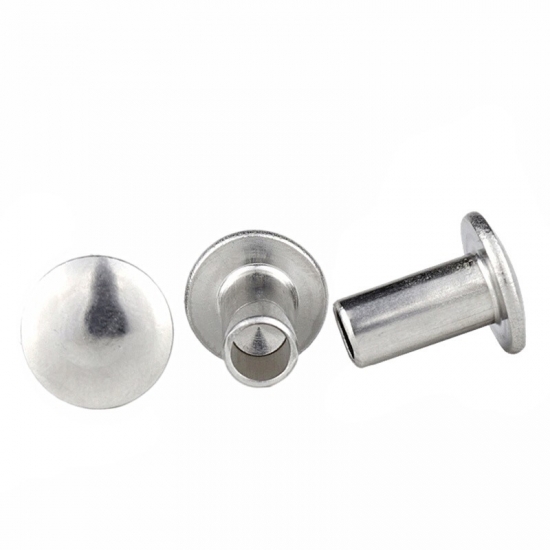

Round Head Semi Tubular Rivet is a versatile fastening solution widely used in various industries. Its key features include a round head design, semi tubular shank, and hollow interior. It offers strong and reliable connections while allowing for easy removal and disassembly. Ideal for joining thin materials, electrical components, and structural applications.
Payment:
TT , Credit 30/60/90 daysProduct Origin:
Wuxi, China( near to Port Shanghai)Color:
Plain, Zinc plated, Copper plated, Black, etcMin order:
1000pcsLead Time:
7-35daysFactory Price Round Head Semi Tubular Rivets
Tubular rivets consist of a partially hollow shank and a solid head. They are used to fasten two parts together, a tubular rivet can be driven into them. They are in different head styles, materials and dimensions to your fastening demand.
Tubular rivets will not loosen or come out of the parts they are used with. They are categorized as permanent fasteners, ensuring the continued security and cohesion of the respective parts. Even when subjected to vibrations, tubular rivets will remain securely in place.
Head Types of Semi Tubular Rivet
Common Material Used for Semi Tubular Rivet
Plating & Coating

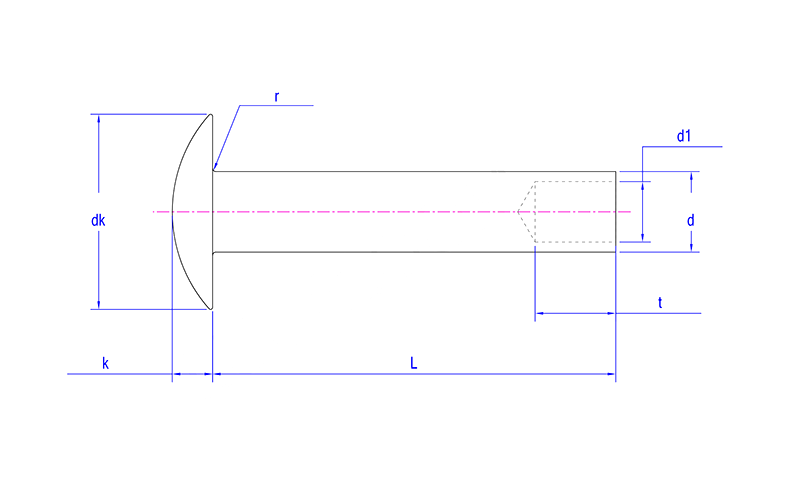

Mon | d | dk | k | d1 | t | r max | |||||
max | min | max | min | max | min | max | min | max | min | ||
Φ1.2 | 1.26 | 1.14 | 2.4 | 2.2 | 0.6 | 0.4 | 0.66 | 0.56 | 1.44 | 0.96 | 0.1 |
Φ1.4 | 1.46 | 1.34 | 3 | 2.6 | 0.7 | 0.5 | 0.77 | 0.65 | 1.64 | 1.16 | 0.1 |
Φ1.6 | 1.66 | 1.54 | 3.44 | 2.96 | 0.8 | 0.6 | 0.87 | 0.75 | 1.84 | 1.36 | 0.1 |
Φ2 | 2.06 | 1.94 | 4.24 | 3.76 | 0.9 | 0.7 | 1.12 | 0.94 | 2.24 | 1.76 | 0.1 |
Φ2.5 | 2.56 | 2.44 | 5.24 | 4.76 | 0.9 | 0.7 | 1.62 | 1.44 | 2.74 | 2.26 | 0.1 |
Φ3 | 3.06 | 2.94 | 6.24 | 5.76 | 1.2 | 0.8 | 2.12 | 1.94 | 3.24 | 2.76 | 0.1 |
Φ3.5 | 3.58 | 3.42 | 7.29 | 6.71 | 1.4 | 1 | 2.32 | 2.14 | 3.79 | 3.21 | 0.3 |
Φ4 | 4.08 | 3.92 | 8.29 | 7.71 | 1.5 | 1.1 | 2.62 | 2.44 | 4.29 | 3.71 | 0.3 |
Φ5 | 5.08 | 4.92 | 10.29 | 9.71 | 1.9 | 1.5 | 3.66 | 3.42 | 5.29 | 4.71 | 0.3 |
Φ6 | 6.08 | 5.92 | 12.35 | 11.65 | 2.4 | 2 | 4.66 | 4.42 | 6.29 | 5.71 | 0.3 |
Φ8 | 8.1 | 7.9 | 16.35 | 15.65 | 3.2 | 2.8 | 6.16 | 5.92 | 8.35 | 7.65 | 0.3 |
Φ10 | 10.1 | 9.9 | 20.42 | 19.58 | 4.24 | 3.76 | 7.7 | 7.4 | 10.35 | 9.65 | 0.3 |
