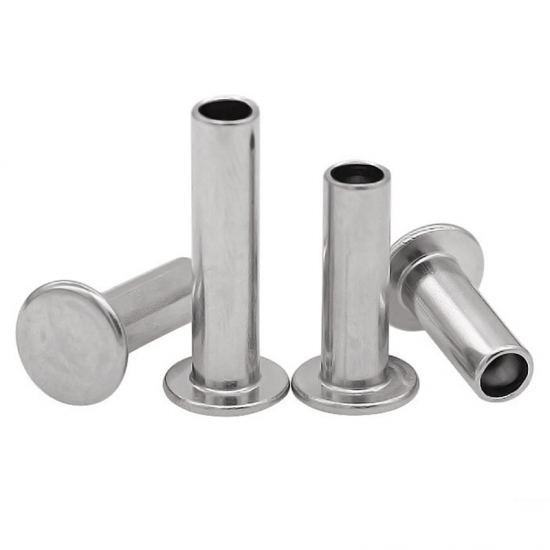

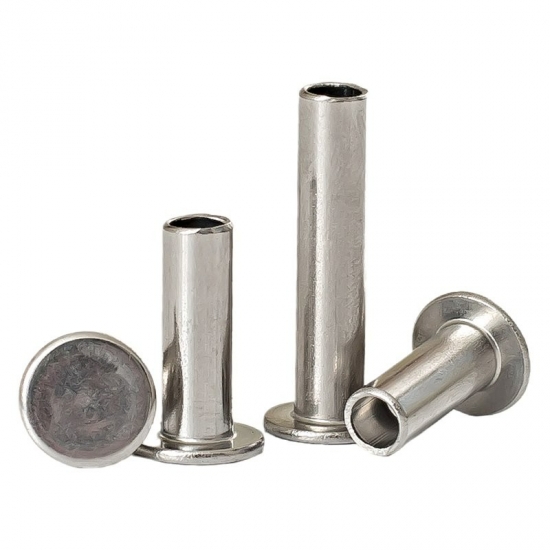

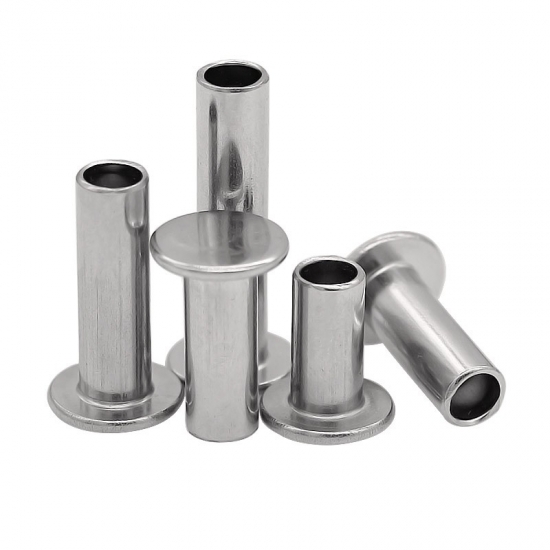

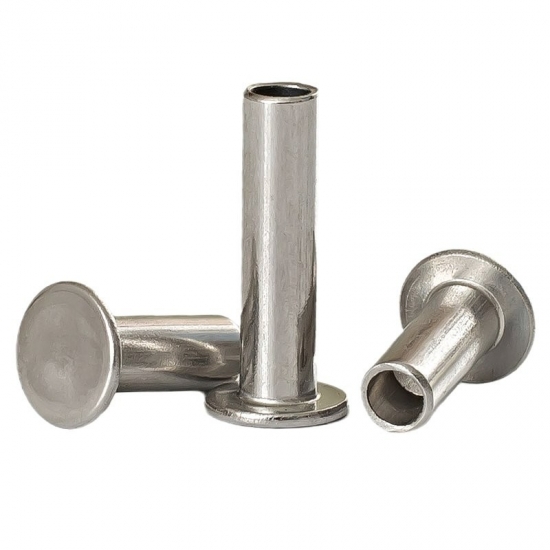

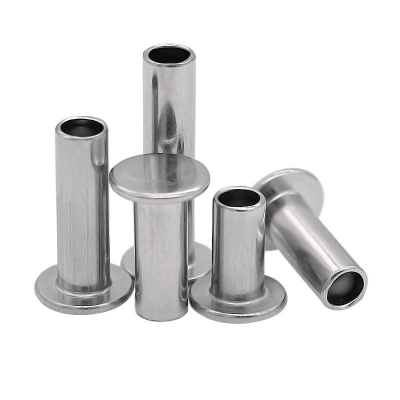

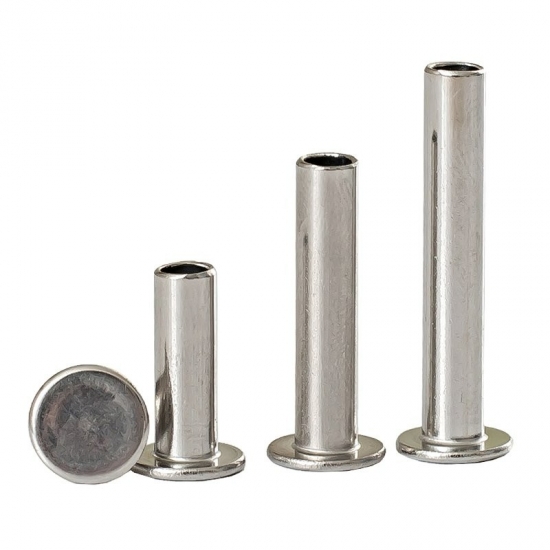

The Flat Round head semi tubular hollow rivet is a versatile fastening solution. Its key features include a flat round head design, a semi tubular structure, and a hollow core. This rivet is commonly used in various industries for joining two or more materials securely and efficiently.
Payment:
TT , Credit 30/60/90 daysProduct Origin:
Wuxi, China( near to Port Shanghai)Color:
Plain, Zinc plated, Copper plated, Black, etcMin order:
1000pcsLead Time:
7-35daysWholesale Flat Round Head Semi Tubular Hollow Rivets
Semi-tubular rivets, also referred to as tubular rivets, share similarities with solid rivets but feature a partial hole at the tip opposite the head. This hole serves the purpose of decreasing the required application force by rolling out the tubular portion. Applying a semitubular rivet necessitates only a quarter of the force needed for applying a solid rivet. Additionally, tubular rivets can be utilized as pivot points where movement is desired since the expansion of the rivet occurs solely at the tail.

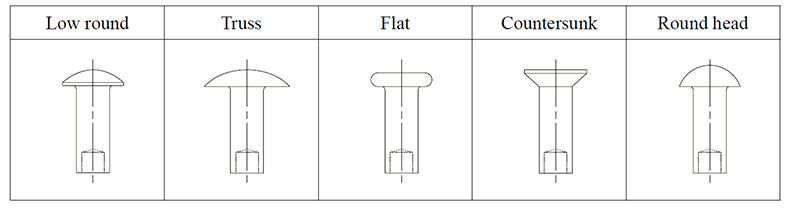

Head Types of Semi Tubular Rivet

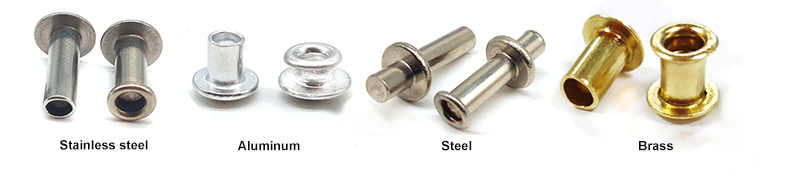

Common Material Used for Semi Tubular Rivet

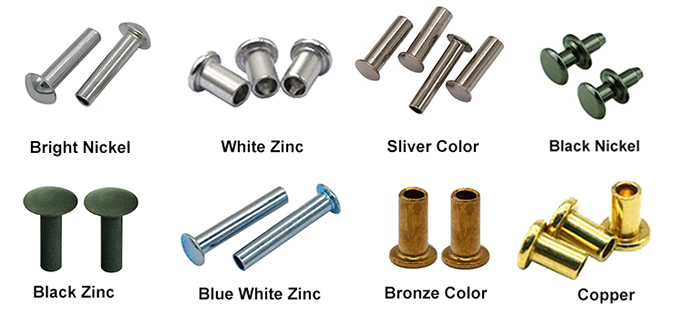

Plating & Coating

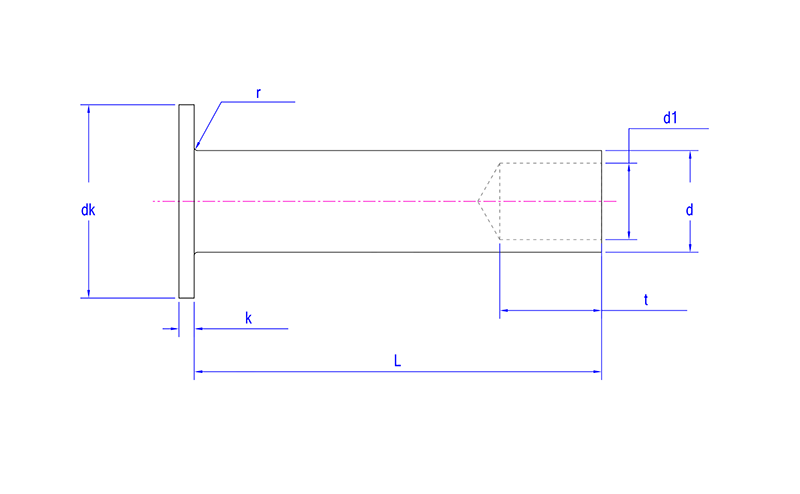

Mon | d | dk | k | d1 | t | r max | |||||
max | min | max | min | max | min | max | min | max | min | ||
Φ1.4 | 1.46 | 1.34 | 2.7 | 2.3 | 0.58 | 0.42 | 0.77 | 0.65 | 1.64 | 1.16 | 0.1 |
Φ1.6 | 1.66 | 1.54 | 3.2 | 2.8 | 0.58 | 0.42 | 0.87 | 0.75 | 1.84 | 1.36 | 0.1 |
Φ2 | 2.06 | 1.94 | 3.74 | 3.26 | 0.68 | 0.52 | 1.12 | 0.94 | 2.24 | 1.76 | 0.1 |
Φ2.5 | 2.56 | 2.44 | 4.74 | 4.26 | 0.68 | 0.52 | 1.62 | 1.44 | 2.74 | 2.26 | 0.1 |
Φ3 | 3.06 | 2.94 | 5.74 | 5.26 | 0.88 | 0.72 | 2.12 | 1.94 | 3.24 | 2.76 | 0.1 |
Φ3.5 | 3.58 | 3.42 | 6.79 | 6.21 | 0.88 | 0.72 | 2.32 | 2.14 | 3.79 | 3.21 | 0.3 |
Φ4 | 4.08 | 3.92 | 7.79 | 7.21 | 1.13 | 0.87 | 2.62 | 2.44 | 4.29 | 3.71 | 0.3 |
Φ5 | 5.08 | 4.92 | 9.79 | 9.21 | 1.13 | 0.87 | 3.66 | 3.42 | 5.29 | 4.71 | 0.3 |
Φ6 | 6.08 | 5.92 | 11.85 | 11.15 | 1.33 | 1.07 | 4.66 | 4.42 | 6.29 | 5.71 | 0.3 |
Φ8 | 8.1 | 7.9 | 15.85 | 15.15 | 1.33 | 1.07 | 6.16 | 5.92 | 8.35 | 7.65 | 0.3 |
Φ10 | 10.1 | 9.9 | 19.42 | 18.58 | 1.63 | 1.37 | 7.7 | 7.4 | 10.35 | 9.65 | 0.3 |
