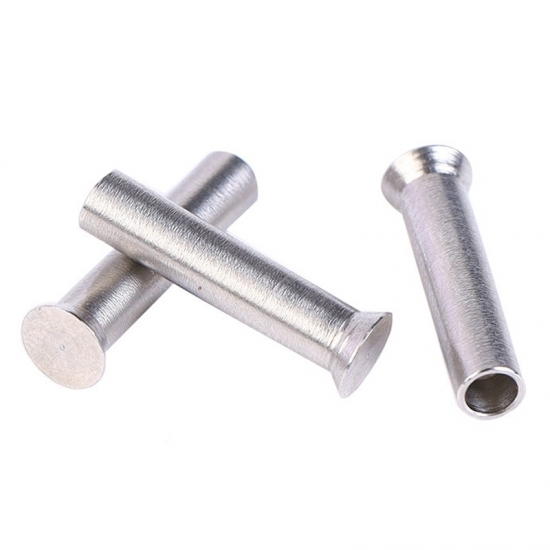

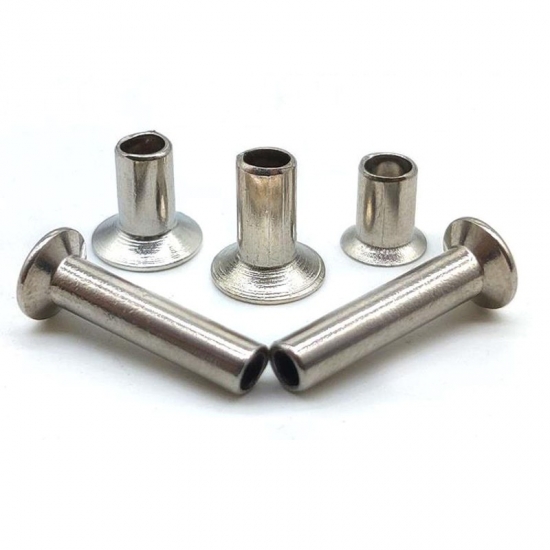

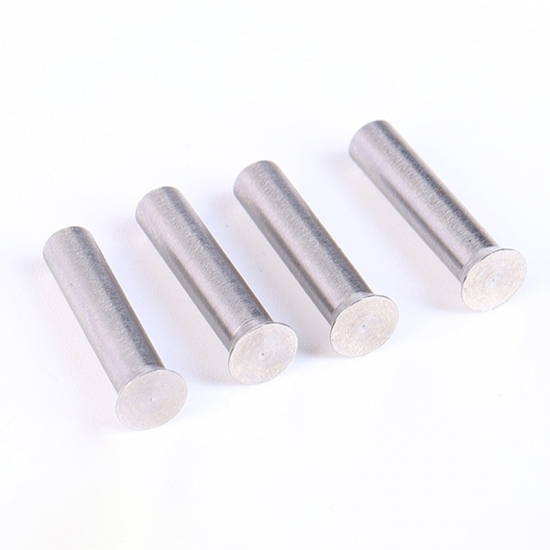

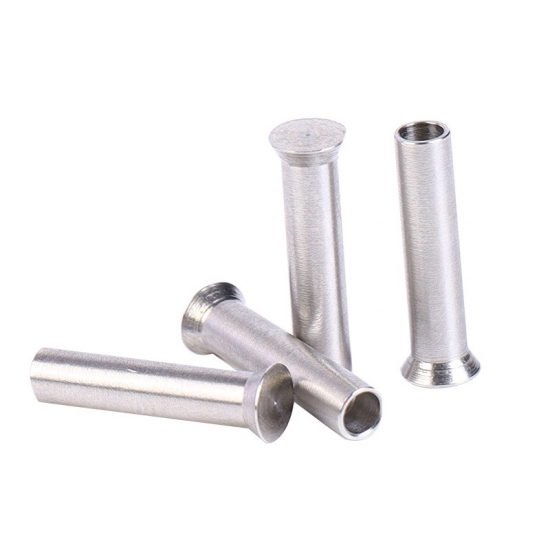

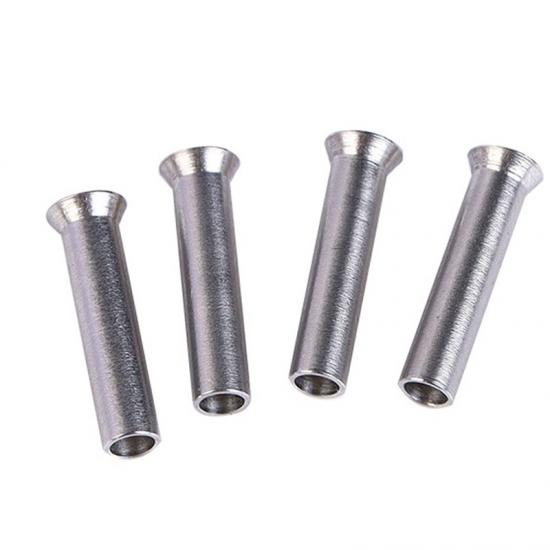

Flat head semi tubular hollow rivet is characterized by its flat head design and semi tubular hollow structure. It offers excellent fastening strength while reducing weight. It is commonly used in industries such as automotive, aerospace, and electronics for fastening and joining various materials.
Payment:
TT , Credit 30/60/90 daysProduct Origin:
Wuxi, China( near to Port Shanghai)Color:
Plain, Zinc plated, Copper plated, Black, etcMin order:
1000pcsLead Time:
7-35daysHot Sale Flat Head Aluminum Semi Tubular Hollow Rivets
Semi-tubular or tubular rivets are an ideal choice for cost-effective and efficient permanent fastening of materials. When it comes to joints where movement is required at pivot points, they are often the preferred rivet style.
Semi-tubular rivets find common uses in various industries such as light fixtures, HVAC ducts, electronics, ladders, brakes, and more. Additionally, they are used to pierce and clinch malleable materials like leather, corrugated materials, plastic, rubber, or fabric when a pre-existing hole is not available.
Semi-tubular rivets, also known as hollow rivets, feature a shallow hole at the tip opposite the head. They work by rolling the hollow part outward using force applied to the shank. This rolling or folding action secures the rivet around the edge of the material. The advantage of semi-tubular rivets lies in their reduced installation force requirement. In fact, they only need about a quarter of the force compared to solid rivets. Additionally, this type of rivet can be fastened to either a tight or loose fit, depending on the specific application.
Head Types Of Semi Tubular Rivet
Common Material Used for Semi Tubular Rivet
Plating & Coating

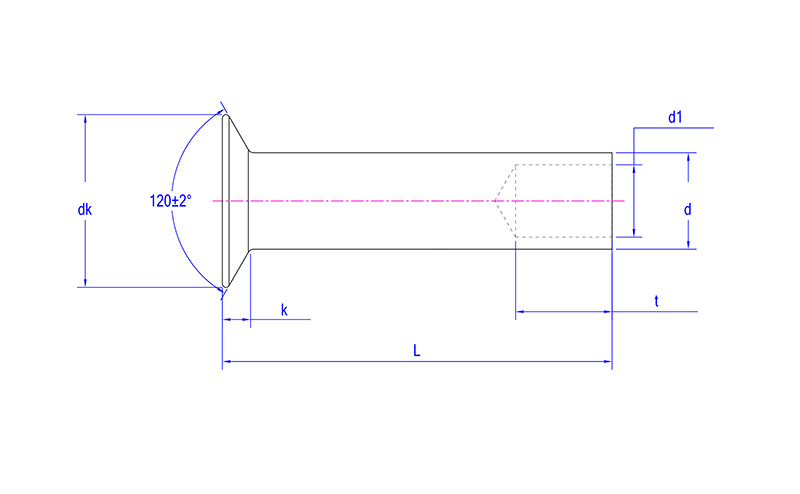

Mon | d | dk | d1 | t | k | ||||
max | min | max | min | max | min | max | min | ||
Φ1.2 | 1.26 | 1.14 | 2.83 | 2.57 | 0.66 | 0.56 | 1.44 | 0.96 | 0.5 |
Φ1.4 | 1.46 | 1.34 | 3.45 | 3.15 | 0.77 | 0.65 | 1.64 | 1.16 | 0.6 |
Φ1.6 | 1.66 | 1.54 | 3.95 | 3.65 | 0.87 | 0.75 | 1.84 | 1.36 | 0.7 |
Φ2 | 2.06 | 1.94 | 4.75 | 4.45 | 1.12 | 0.94 | 2.24 | 1.76 | 0.8 |
Φ2.5 | 2.56 | 2.44 | 5.35 | 5.05 | 1.62 | 1.44 | 2.74 | 2.26 | 0.9 |
Φ3 | 3.06 | 2.94 | 6.28 | 5.92 | 2.12 | 1.94 | 3.24 | 2.76 | 1 |
Φ3.5 | 3.58 | 3.42 | 7.08 | 6.72 | 2.32 | 2.14 | 3.79 | 3.21 | 1.1 |
Φ4 | 4.08 | 3.92 | 7.98 | 7.62 | 2.62 | 2.44 | 4.29 | 3.71 | 1.2 |
Φ5 | 5.08 | 4.92 | 9.68 | 9.32 | 3.66 | 3.42 | 5.29 | 4.71 | 1.4 |
Φ6 | 6.08 | 5.92 | 11.72 | 11.28 | 4.66 | 4.42 | 6.29 | 5.71 | 1.7 |
Φ8 | 8.1 | 7.9 | 15.82 | 15.38 | 6.16 | 5.92 | 8.35 | 7.65 | 2.3 |
