Bifurcated rivets also known as split rivet, dDue to its bifurcated design, the bolt body can expand and conform to uneven surfaces, providing a more secure fastening than a solid rivet.
Payment:
TT , Credit 30/60/90 daysProduct Origin:
Wuxi, China( near to Port Shanghai)Color:
Plain, Zinc plated, Copper plated, Black, etcMin order:
1000pcsLead Time:
7-35daysWhat is Bifurcated Rivet?

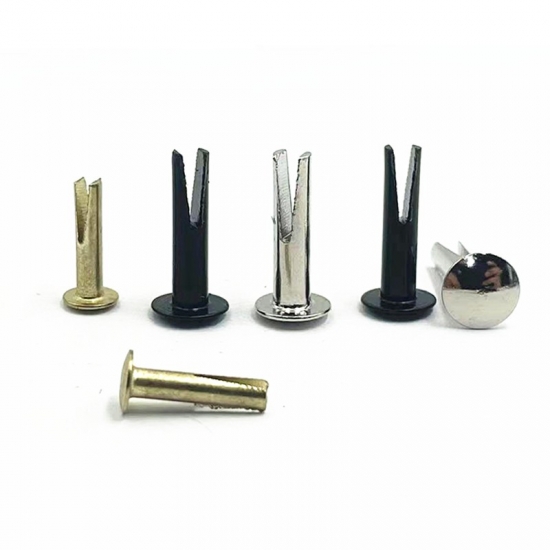

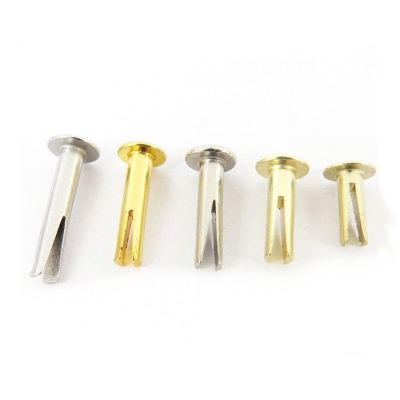

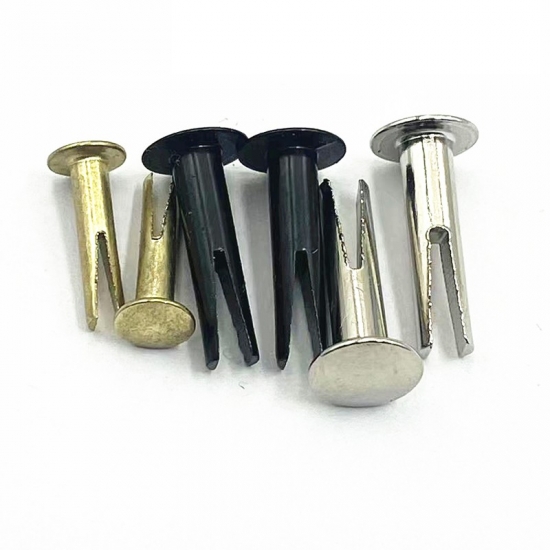

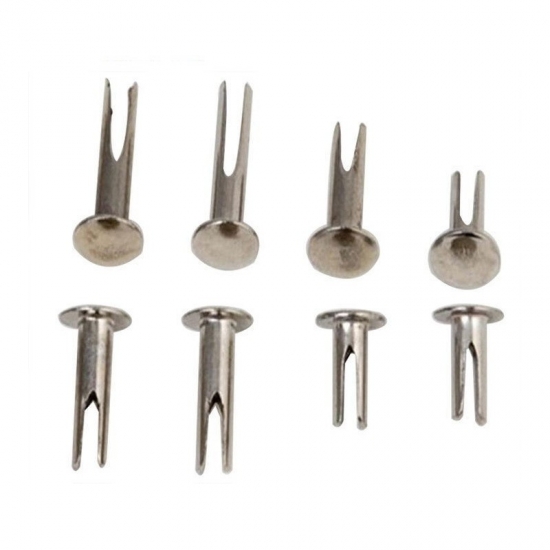

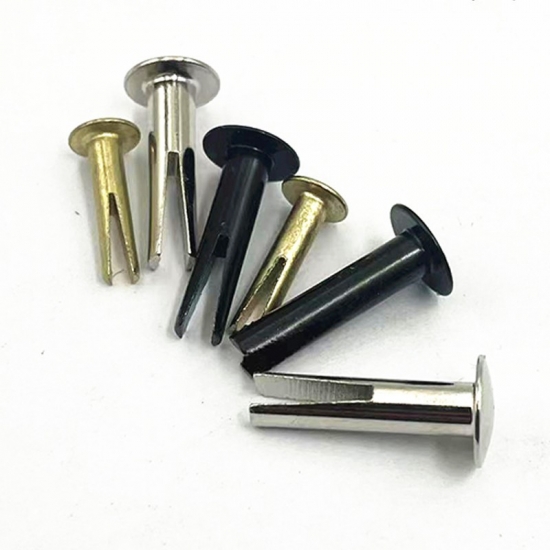

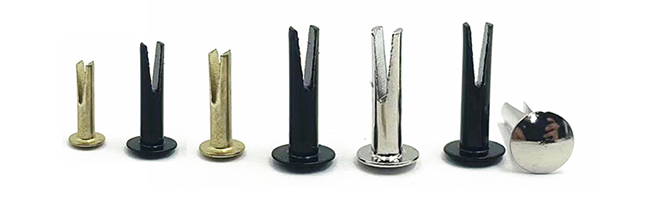

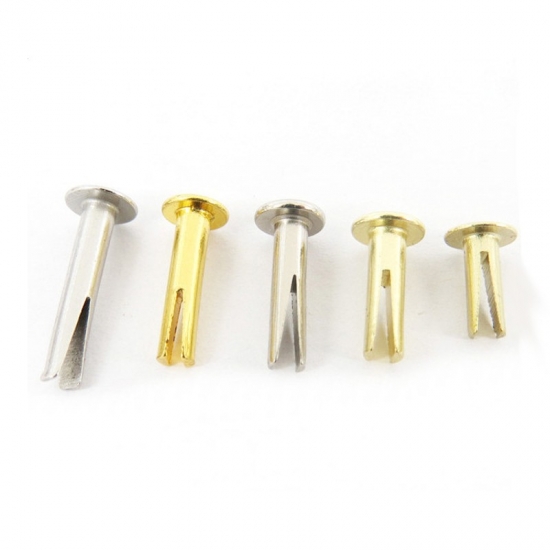

Split Rivets, also known as bifurcated rivets are a type of fastener used to join two or more materials together. They consist of a cylindrical body with a split (bifurcation) at one end. When installed, the split end of the rivet expands to securely clamp the materials together.They are typically used to join two pieces of material, such as metal or leather, together by placing a nut through a pre-drilled hole and then spreading or spreading the split end to hold it in place. The split nut provides a strong and reliable connection, especially in applications where materials cannot be easily accessed from both sides. They are commonly used in industries such as automotive, construction and fashion.
Head Types of Bifurcated Rivet
Common Material Used for Bifurcated Rivet
Plating & Coating
Note: Pass the ROHS Test

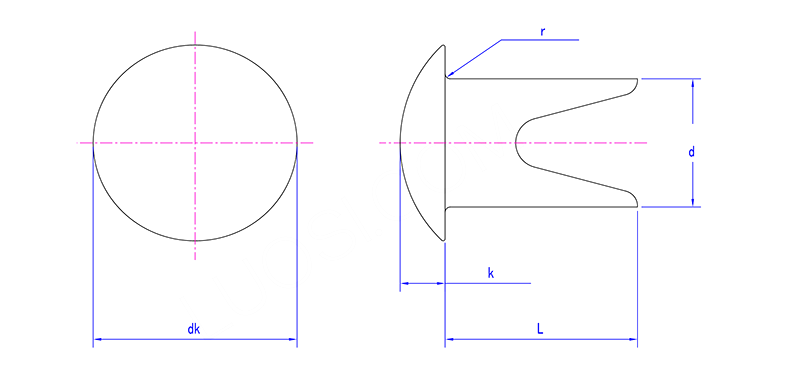

| Mon | d | dl | dk | n | k | ||||
| max | min | min | max | min | max | min | max | min | |
| 2 | 2.05 | 1. 95 | 1. 9 | 4. 2 | 3. 72 | 0. 75 | 0.5 | 0. 7 | 0.56 |
| 2.5 | 2.55 | 2.45 | 2.4 | 5 | 4.52 | 0.85 | 0.6 | 0.88 | 0. 74 |
| 3 | 3.05 | 2. 95 | 2.9 | 6 | 5.52 | 1 | 0. 75 | 1. 05 | 0.91 |
| 4 | 4.06 | 3.94 | 3.88 | 8 | 7.42 | 1. 25 | 1 | 1. 28 | 1. 03 |
| 5 | 5.06 | 4. 94 | 4.88 | 9. 7 | 9.12 | 1. 45 | 1. 2 | 1. 6 | 1. 35 |
