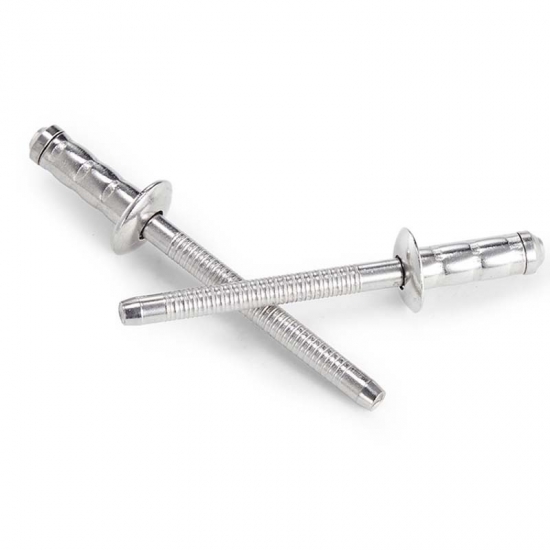

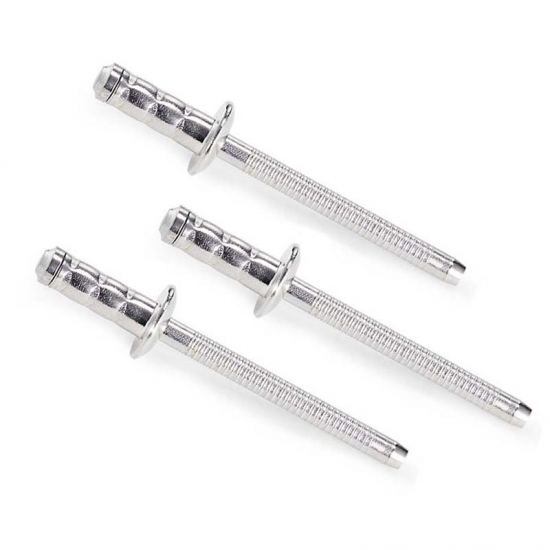

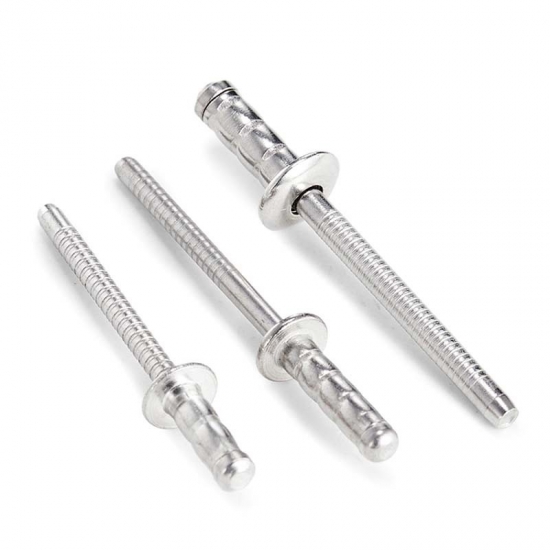

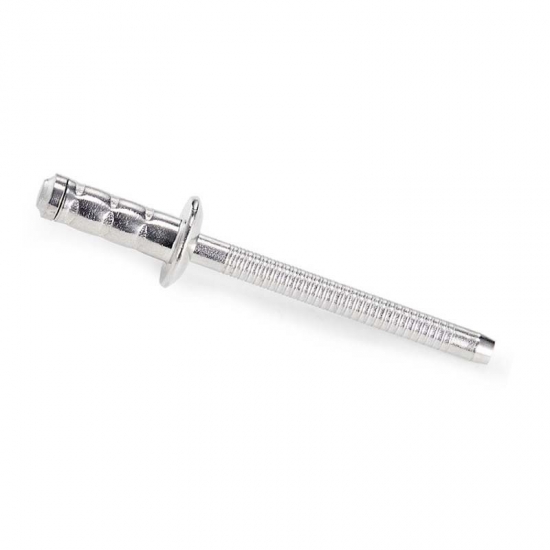

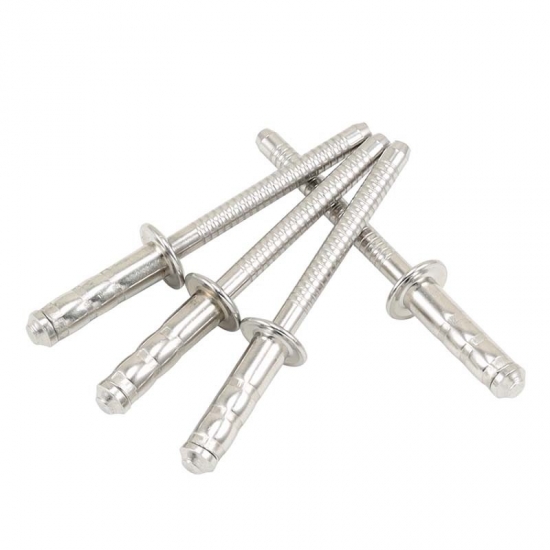

Competitive Price Dome Head Multi Grip Blind Rivets

Competitive Price Dome Head Multi Grip Blind Rivets

Multi Grips offer exceptional versatility and excellent clamping force for tasks that involve large or irregular drilled holes. In cases where the drilled holes have a slightly bigger diameter, Multi Grips would ensure more reliable performance. Additionally, these rivets possess weatherproof properties and deliver superior strength and vibration resistance compared to standard open end blind rivets.

On one hand, it takes more time to apply multi-grip rivets; on the other hand, they provide a stronger fit and require less effort to switch between sizes. In terms of cost, multi-grip rivets are typically pricier than standard rivets. However, this additional expense is compensated by reduced labor due to uninterrupted work and efficient management of rivet inventory.

Aluminum/ Steel multi grip blind rivet is widely supplied to meet your application requirements. Aluminum has a lower tensile strength but is a lightweight material with corrosion resistance. Stainless steel provides higher tensile strength and resists corrosion.

Diameter sizes from 3.2 to 4.8mm (1/8 to 3/16).

Available materials: Steel, Aluminum, Stainless

Material (Body/Mandrel)



Aluminum/ Aluminum

Aluminum/ Steel

Aluminum/ Stainless steel

Steel/ Steel

Stainless Steel/ Stainless Steel

Color painting is available.





Head Style



Dome Head Rivets

Countersunk Head Rivets

Large Flange Head Rivets

Advantages



A wide of grip range, reducing inventory.

Strong strength, vibration resistant joint.

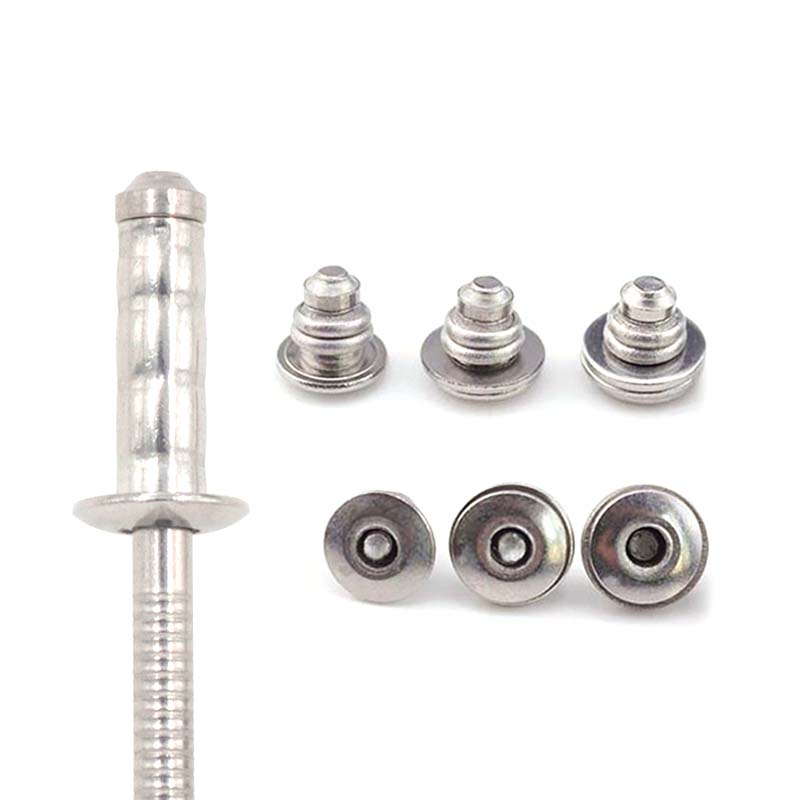

Acommodates irregular, oversized, slotted or misaligned holes.

Good appearance and vision.

Aluminum/ Steel Dome Head Multi Grip Blind Rivets

RIVET DIAMETER /mm	RIVET LENGTH /mm	GRIP RANGE /mm	HEAD DIAMETER /mm	HEAD HEIGHT /mm	MANDREL DIAMETER /mm	MANDREL LENGTH /mm	HOLE SIZE /mm	SHEAR /N	TENSILE /N
D1	L		D2	k	d	p	DRILL
	+1/-0	MIN.-MAX.		MAX.	MAX.	MIN.		MIN.	MIN.
3.2 +0.08 -0.15	8.0	1.0-5.0	5.8-6.3	1.0	1.75	26.00	3.3-3.4	600 N	900 N
	9.5	2.0-6.5
	11.2	3.7-8.2
	12.7	5.2-9.5
4.0 +0.08 -0.15	9.5	1.0-6.0	7.5-8.0	1.3	2.15	27.00	4.1-4.2	950 N	1500 N
	12.7	4.0-9.0
	17.0	8.5-13.5
4.8 +0.08 -0.15	10.3	1.6-6.4	9.0-9.6	1.5	2.63	28.00	4.9-5.0	1320 N	2000 N
	15.1	5.0-11.0
	17.0	7.0-13.0
	24.8	14.0-19.8

Production Process

Step 1

Blind rivet machine---making the rivet body

Step 2

Nail making machine---making the mandrel

Step 3

Assembly machine--finish the assembly of rivet body and the mandrel

Package

Regular package is small box+ carton+ pallet, or bulk in carton, each carton weights 20-25kgs.

Borie Fasteners can also provide custom packaging service, such as poly bag or plastic bag with client's logo and information.

Application

Blind rivets can be used just about anywhere if they are properly installed. Most of them are used in Facade, Solar panel bracket, Automoblie, Elevator, Air conditioner, Cabinet, Catering equipment, Aluminum windows&doors, etc..
