Knurled body rivet nuts can be installed in pre-painted applications without causing any surface damage. Additionally, they are available in aluminum, stainless steel, and zinc-plated steel materials to enhance their corrosion resistance properties.
Payment:
TT , Credit 30/60/90 daysProduct Origin:
Wuxi, China( near to Port Shanghai)Color:
Plain, Zinc, Black, Dacromet, Geomet, etcMin order:
1000pcsLead Time:

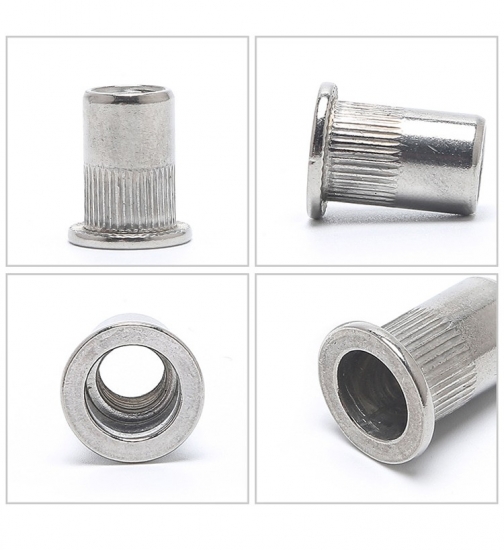

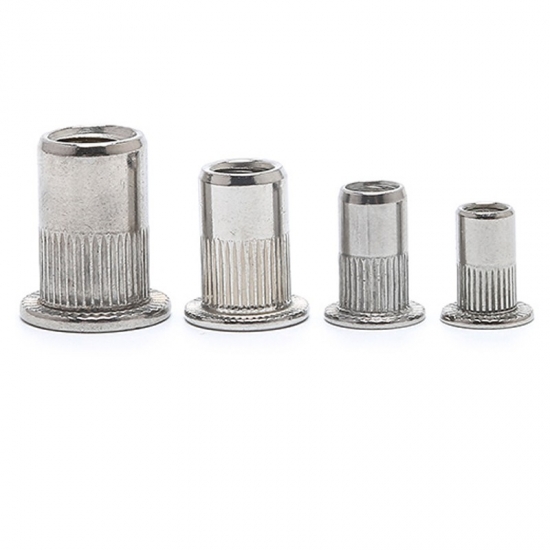

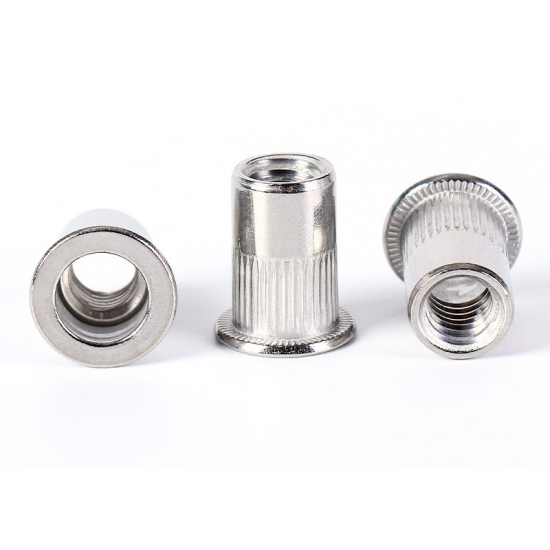

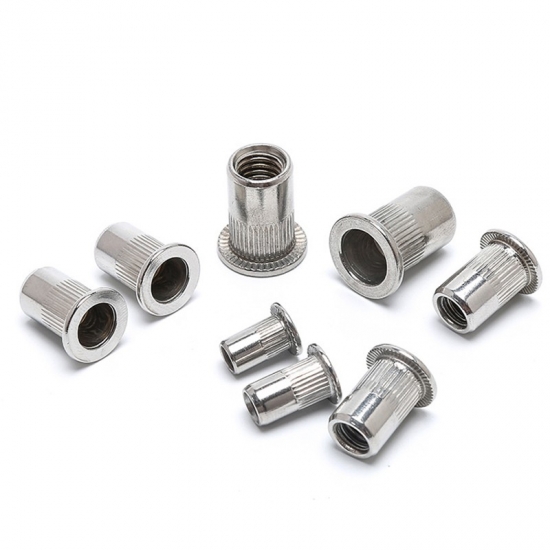

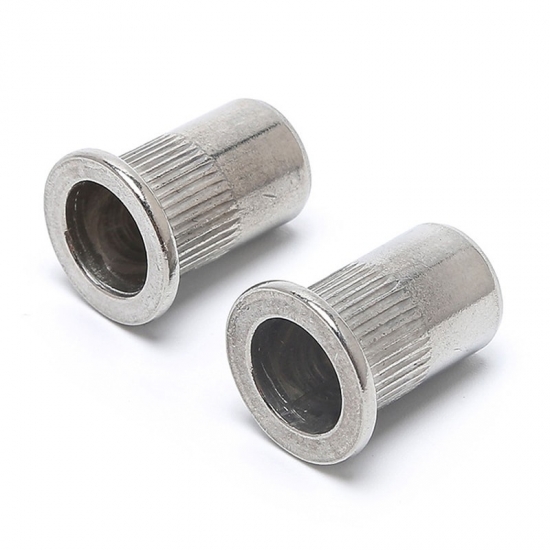

7-35daysFactory Price Flat Head Knurled Open End Rivet Nuts
Knurled body threaded inserts demonstrate a significant improvement in torque-to-turn resistance for softer materials, boasting a 50% increase when compared to plain round body inserts. Additionally, this knurled body promotes enhanced electrical continuity in sheet metal fixings.
Knurled body rivet nuts can be installed in pre-painted applications without causing any surface damage. Additionally, they are available in aluminum, stainless steel, and zinc-plated steel materials to enhance their corrosion resistance properties.
A threaded insert, commonly known as a rivet nut, is an insert type that is affixed within a material to establish a threaded aperture. Instead of directly creating a threaded hole in the material, the threaded insert offers a sturdier fastening solution, especially when utilized in delicate materials or in thin work surfaces that cannot accommodate a traditional tapping process. Numerous threaded inserts possess exterior threads or ribs, enhancing the grip within the aperture to prevent rotation. Such inserts are particularly well-suited to industrial applications as they facilitate the standardized implementation of fasteners and alleviate challenges associated with transitioning between metric and standard threads.
Rivet Nuts Are Used In A Variety Of Industries:
|
|
Rivet Nut Head Type
Rivet nuts come in many shapes and sizes: open-end, closed-end (good for water control), round body, hex body, reduced head etc.
Rivet Nut Body Type
Common Material Used For Solid Rivet
Selecting A Blind Rivet Nut
Thread Sizes: M4 – M10
Material: Aluminium, steel, stainless steel A2 & A4
Head Styles: Flat, countersunk,large flange, reduced
Body: Round with and without splines, Half Hex, Full Hex
Option:Closed end, Open end
Hole Size: Metric, Inch

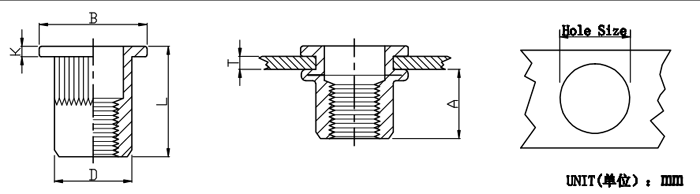

Thread | T(GRIP RANGE) | A | Hole Size | D | B | K | L | ||
Min | Max | Ref | 0.1 | 0.07 | |||||
0 | -0.1 | ||||||||
M4*0.7 | 0.5-2.0 | 6.5 | 6 | 5.9 | 9.0±0.25 | 0.8±0.1 | 10.5±0.25 | ||
M5*0.8 | 0.5-2.5 | 8 | 7 | 6.9 | 10.0±0.3 | 1.0±0.15 | 13.0±0.3 | ||
M6*1.0 | 0.5-3.0 | 9.2 | 9 | 8.9 | 12.3±0.3 | 1.3 | 0.2 | 15.5±0.3 | |
-0.05 | |||||||||
M8*1.25 | 1.0-3.5 | 11.5 | 11 | 10.9 | 14.5±0.3 | 1.5±0.15 | 18.5±0.3 | ||
M10*1.5 | 1.0-4.0 | 13.5 | 13 | 12.9 | 17.0±0.3 | 1.6±0.15 | 21.0±0.3 |
