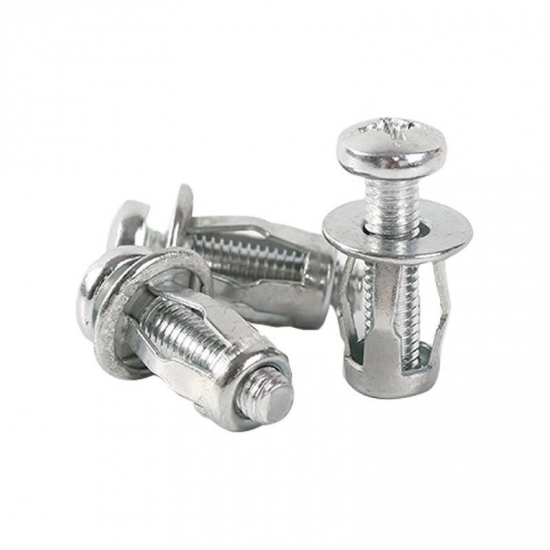

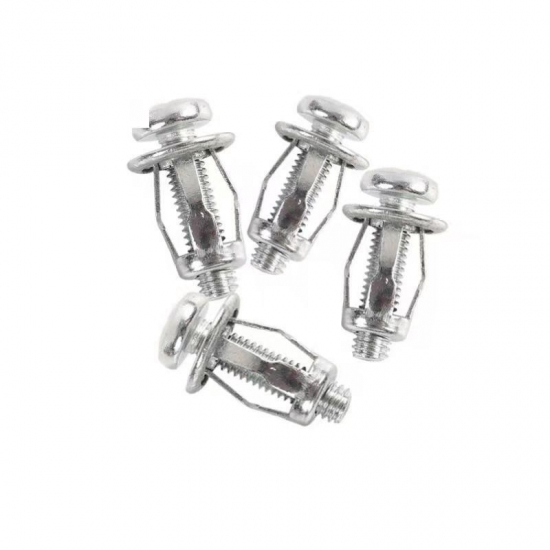

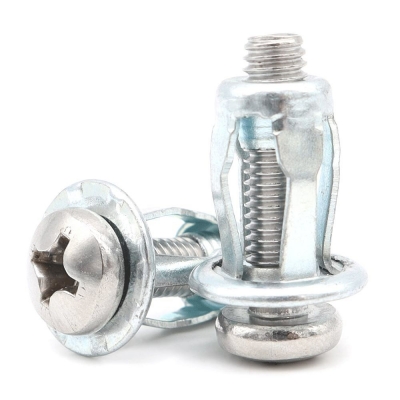

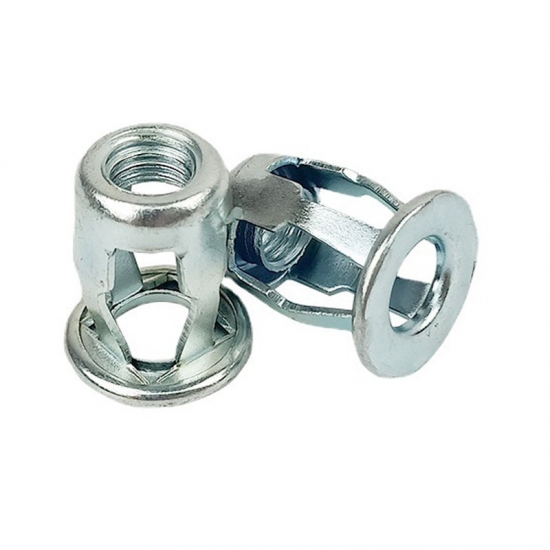

Blind Molly Thread Jack Rivet Nut is a versatile fastener used for secure and reliable joining of materials. Its blind installation capability allows for use in inaccessible areas. Its threaded body provides a strong and durable connection. Suitable for a wide range of applications, this rivet nut offers convenience and efficiency in fastening.
Payment:
TT , Credit 30/60/90 daysProduct Origin:
Wuxi, China( near to Port Shanghai)Color:
Plain, Zinc plated, Black, Dacromet, etcMin order:
1000pcsLead Time:
7-35daysWhat is Jack Nut/ Molly Threaded Insert?

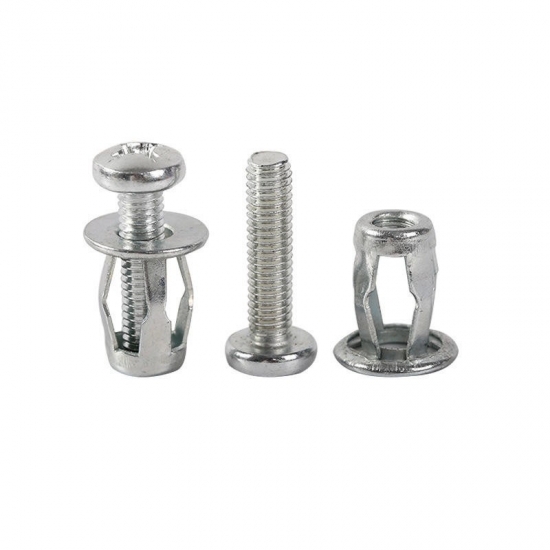

A jack nut, also known as a molly thread insert, is a type of fastener used to create a threaded hole in materials where it would be difficult or impossible to access the opposite side for traditional nut and bolt assembly. It consists of a threaded insert with a flanged head. The flange prevents the nut from being pulled through the material, while the threaded portion provides a secure grip when a bolt or screw is inserted.

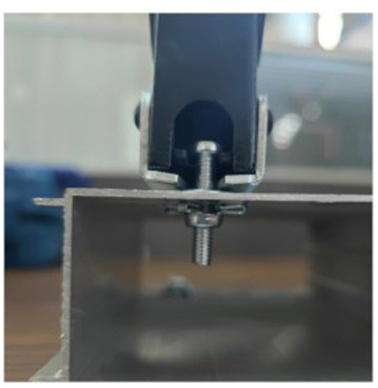

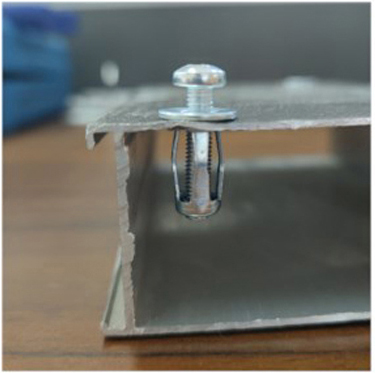

Jack nuts are commonly used in applications such as thin sheet metal, fiberglass, plastic, or other materials that do not have enough strength to hold a traditional nut. They offer a reliable and convenient way to create a strong threaded connection in these challenging situations. Installation is typically done using a special tool that expands the jack nut, allowing it to grip the material securely.
Overall, jack nuts provide an efficient alternative to traditional nuts and offer enhanced versatility for creating threaded connections in challenging situations or thin materials.
Material Used for Jack Nut
Jack nuts are generally made from various materials to suit different applications. Some common materials used for jack nuts include:

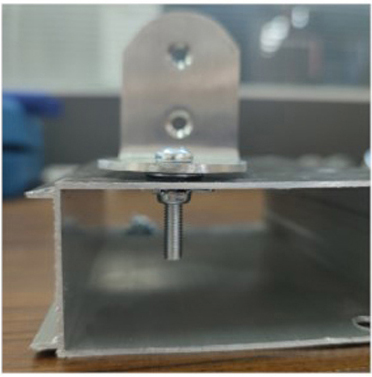

Jack Nut Application

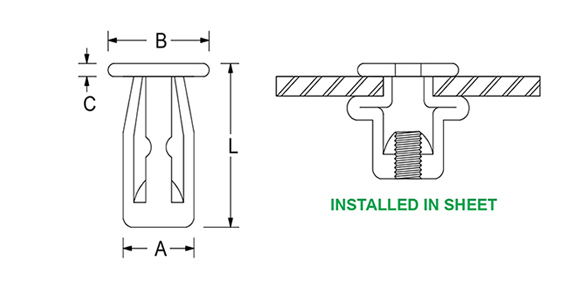

Thread Size | Grip Range | Length L |
Head Diameter B |
Head Height C |
Body Diameter A |
6-32 | .000-.197 | 0.67 | 0.472 | 0.063 | 0.315 |
6-32 | .197-.394 | 0.866 | 0.472 | 0.063 | 0.315 |
10-24 | .000-.197 | 0.709 | 0.547 | 0.063 | 0.394 |
10-24 | .197-.394 | 0.906 | 0.547 | 0.063 | 0.394 |
1/4-20 | .000-.197 | 0.709 | 0.63 | 0.063 | 0.472 |
1/4-20 | .197-.394 | 0.906 | 0.63 | 0.063 | 0.472 |
M4X0.7 | .0-5.0MM | 17 | 12 | 1.6 | 8 |
M4X.07 | 5.0-10.0MM | 22 | 12 | 1.6 | 8 |
M5X0.8 | .0-5.0MM | 18 | 13.9 | 1.6 | 10 |
M5X0.8 | 5.0-10.0MM | 23 | 13.9 | 1.6 | 10 |
M6X1.0 | .0-5.0MM | 18 | 16 | 1.6 | 12 |
M6X1.0 | 5.0-10.0MM | 23 | 16 | 1.6 | 12 |
