Uni grip rivets offer a high-strength fastening solution ideal for thin sheet metals. The stem is retained during assembly, so it can provide strong, vibration resistant joints.
Payment:
T/T, Credit 30/60/90 daysProduct Origin:
Wuxi, China( near to Shanghai Port)Color:
Plain, Zinc plated, Color painted( Black, etc.)Min order:
1000pcsLead Time:

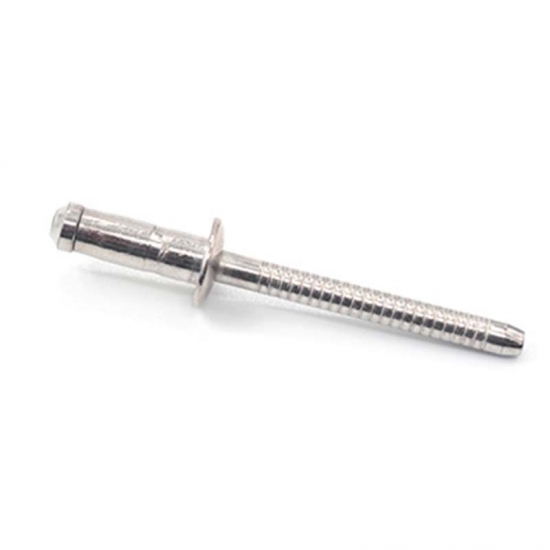

7-35 daysManufacturer Stainless Steel Uni Grip Blind Rivets

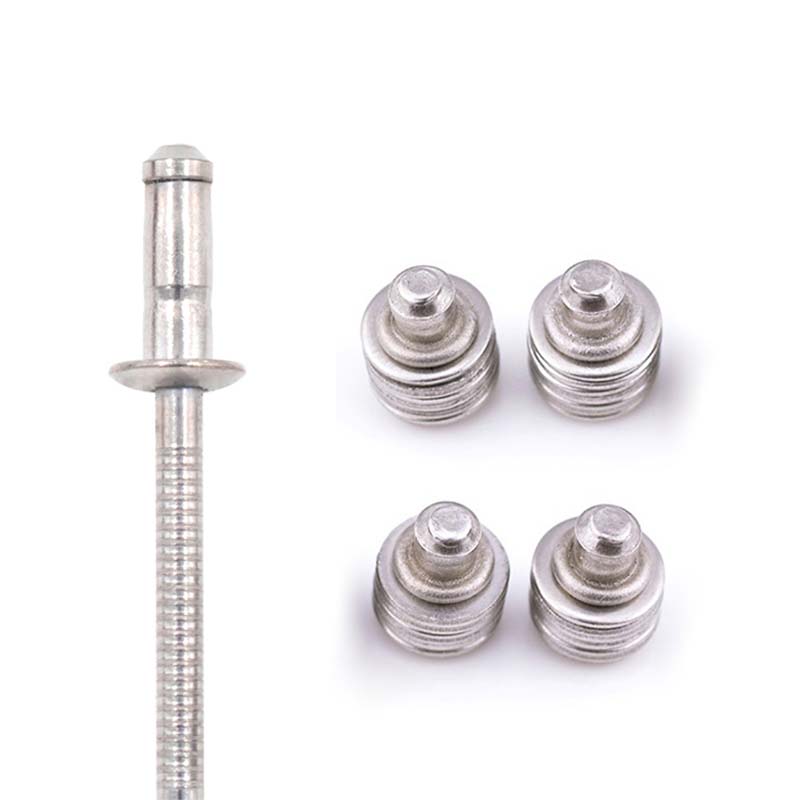

Uni grip rivets offer a high-strength fastening solution ideal for thin sheet metals. The stem is retained during assembly, so it can provide strong, vibration resistant joints. At the same time, it avoids damage, electric leakage or marowak sound caused by the loosening of mandrel. The Uni grip rivets compensates for irregular, oversized, slotted or misaligned holes and spreads the tail bearing load on the rear sheet, stopping sheet movement in non-standard holes.
Mainly used for riveting various thin-walled structural parts of vehicles, ships, construction, machinery, electronics, containers, aluminum boxes, equipment boxes and other industries.

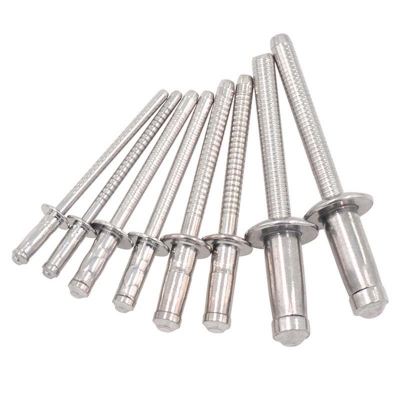

Diameter sizes from 3.2 to 6.0mm.
Available materials: Full Steel& Full Stainless Steel
The stainless steel construction offers a high corrosion resistance.
Material (Body/Mandrel)
Steel/ Steel
Stainless Steel/ Stainless Steel
Head Style
Dome Head Rivets
Advantages
High shear and tensile strength, vibration resistant joints.
Good hole filling, acommodating irregular, oversized, slotted, or misaligned holes.
Ideal for use in thin sheet materials or thick to thin applications.

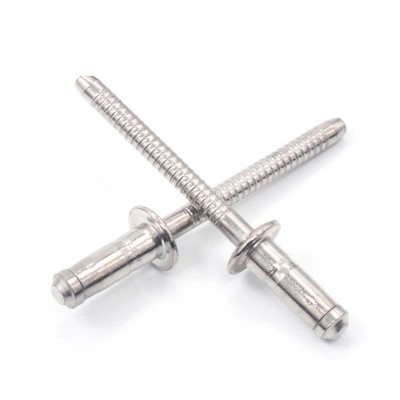

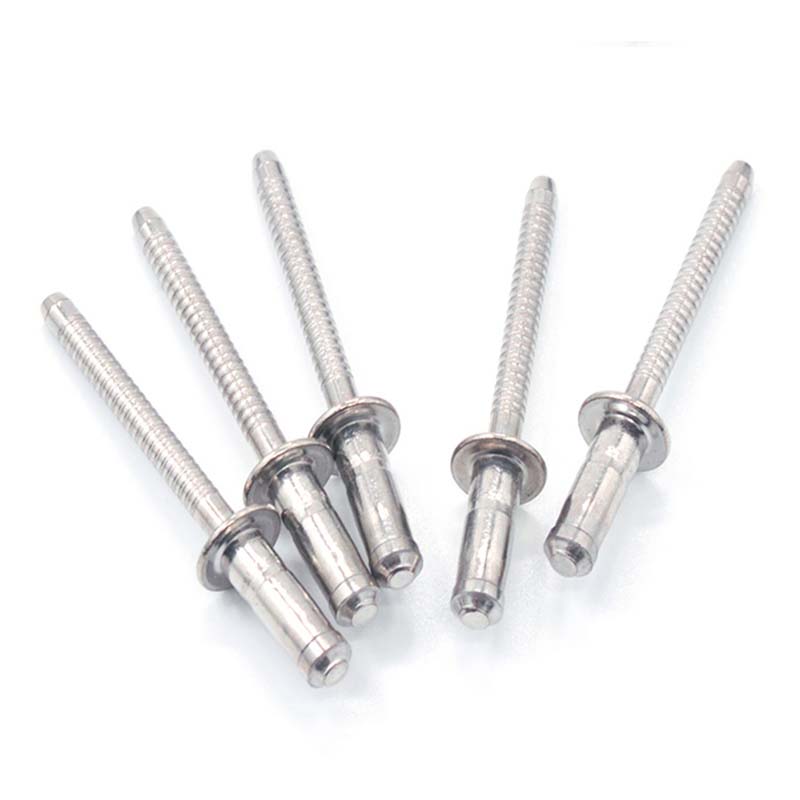

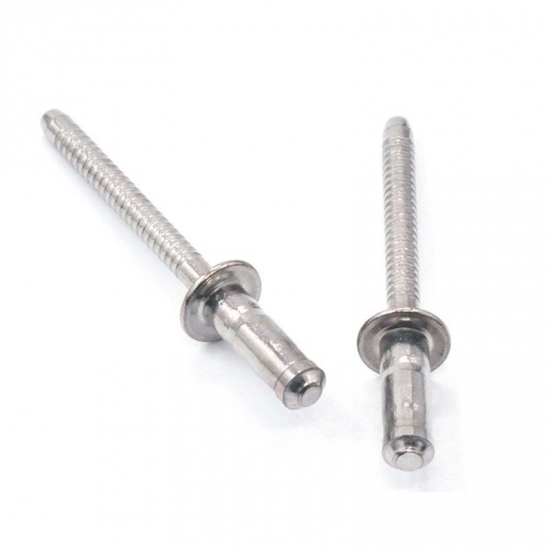

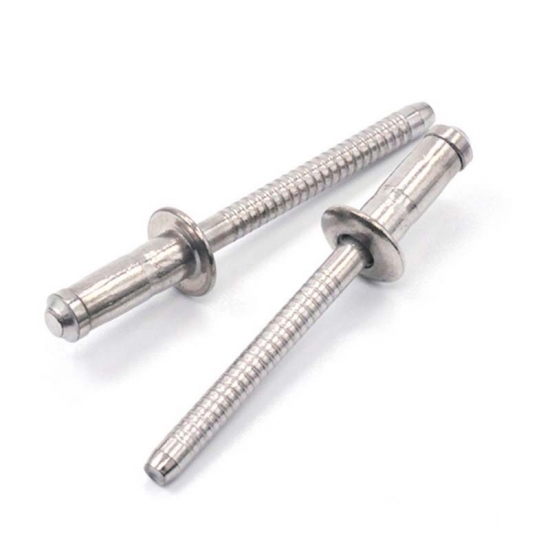

Full Stainless Steel Uni Grip Blind Rivets
RIVET DIAMETER /mm |
RIVET LENGTH /mm |
GRIP RANGE /mm |
HEAD DIAMETER /mm |
HEAD HEIGHT /mm |
MANDREL DIAMETER /mm |
MANDREL LENGTH /mm |
HOLE SIZE /mm |
SHEAR /N |
TENSILE /N |

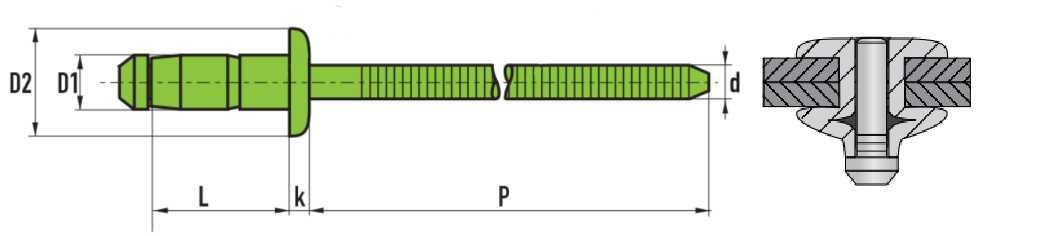

D1 | L | D2 | k | d | p | DRILL | |||
+1/-0 | MIN.-MAX. | MAX. | MAX. | MIN. | MIN. | MIN. | |||
3.2 +0.08 -0.15 |
6.5 | 1.0-3.0 | 5.8-6.3 | 1.1 | 2.10 | 26.00 | 3.3-3.4 | 1600 N | 2000 N |
9.0 | 3.0-5.0 | 1700 N | |||||||
11.0 | 5.0-7.0 | 3200 N | |||||||
4.0 +0.08 -0.15 |
7.5 | 1.0-3.0 | 7.5-8.0 | 1.4 | 2.60 | 27.00 | 4.1-4.2 | 5200 N | 4000 N |
9.5 | 3.0-5.0 | ||||||||
12.5 | 5.0-7.0 | ||||||||
4.8 +0.08 -0.15 |
9.0 | 1.5-3.5 | 9.0-9.6 | 1.5 | 2.90 | 28.00 | 4.9-5.0 | 5500 N | 5000 N |
11.5 | 3.5-6.0 | ||||||||
14.5 | 6.0-8.5 |
Production Process
Step 1
Blind rivet machine---making the rivet body
Step 2
Nail making machine---making the mandrel
Step 3
Assembly machine--finish the assembly of rivet body and the mandrel
Package
Regular package is small box+ carton+ pallet, or bulk in carton, each carton weights 20-25kgs.
Borie Fasteners can also provide custom packaging service, such as poly bag or plastic bag with client's logo and information.
Application
Blind rivets can be used just about anywhere if they are properly installed. Most of them are used in Facade, Solar panel bracket, Automoblie, Elevator, Air conditioner, Cabinet, Catering equipment, Aluminum windows&doors, etc..
