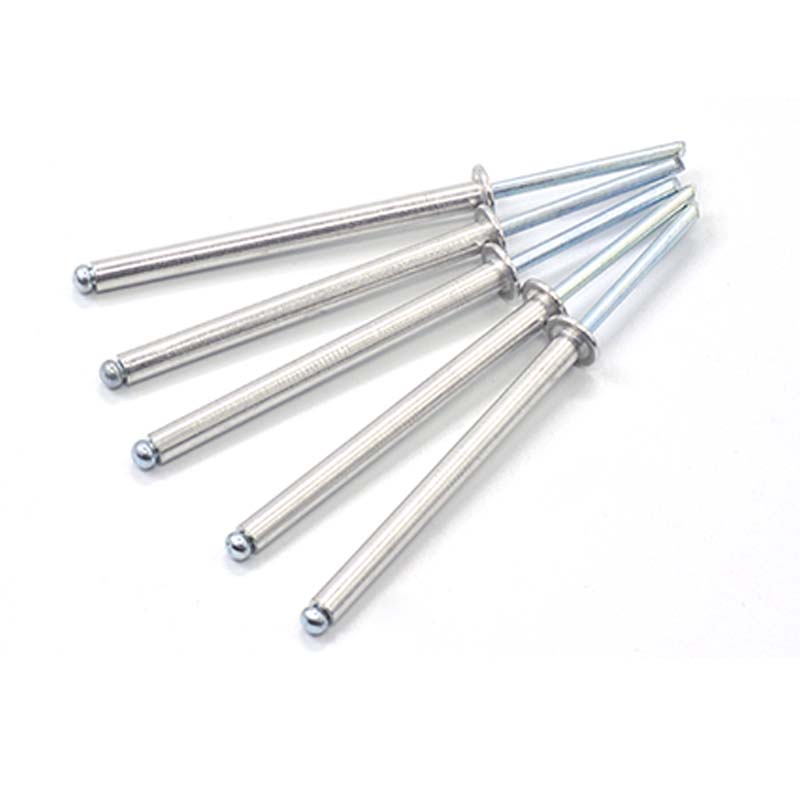

Extra Long Blind Rivets is a type of open end blind rivets. It is designed for applications needed a grip range of over 1 inch.
Payment:
T/T, Credit 30/60/90 daysProduct Origin:
Wuxi, China( near to Shanghai Port)Color:
Plain, Zinc plated, Color painted( Black, etc.)Min order:
1000pcsLead Time:
7-35 daysCustom Aluminum Steel Extra Long Blind Rivets

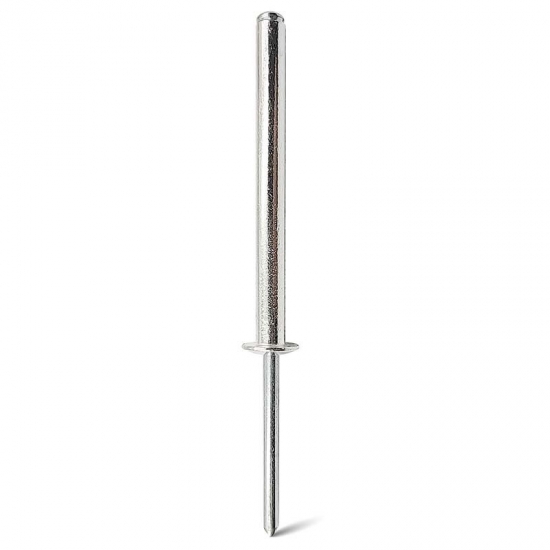

Extra long blind rivet is a type of open end blind rivets, used for areas that require a thick grip range over standard sizes. Commonly usend in insulation, roofing or other industrial extended grip, blind side applications.
During production, the round mandrel head is flattened on both sides. Then during rivet installation, when the mandrel passes through the rivet body, the rivet body folds around these two contours. The result is an oval shape at the end of the rivet body. This oval encapsulates the mandrel head, preventing the mandrel from falling off or rattling during application.
Providing a strong, low-cost fastener, dome head open blind rivets do well in most industrial riveting applications where the material to be fastened does not have high load-bearing requirements.
Diameter sizes from 3.2 to 6.4mm.
Available materials: Steel, Aluminum, Stainless
Material (Body/Mandrel)
Aluminum/ Steel
Color painting is available.
Head Style

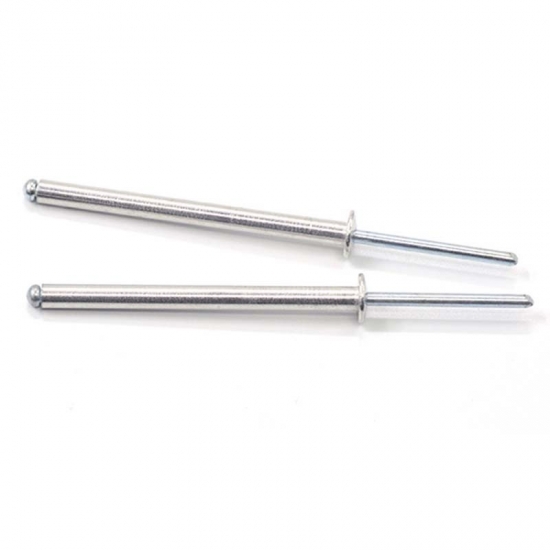

Dome Head Rivets

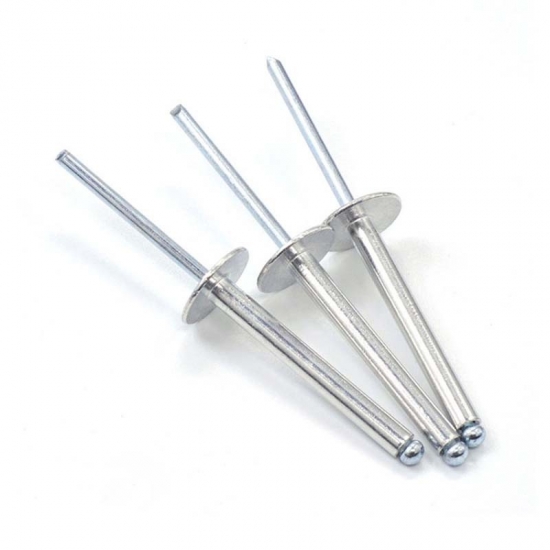

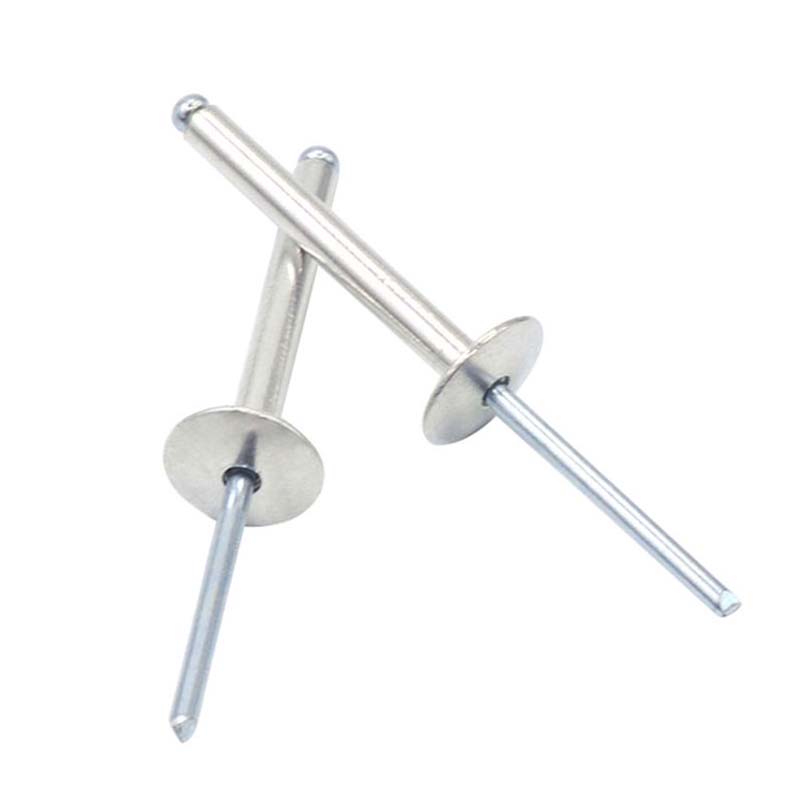

Large Flange Head Rivets
Advantages
Designed for applications with a thick grip range.
High strength, low cost fastener.
High installation efficiency.
Aluminum/ Steel Dome Head Open End Blind Rivet
RIVET DIAMETER /mm |
PART NUMBER |
RIVET LENGTH /mm |
GRIP RANGE /mm |
HEAD DIAMETER /mm |
HEAD HEIGHT /mm |
MANDREL DIAMETER /mm |
MANDREL LENGTH /mm |
HOLE SIZE /mm |
SHEAR /N |
TENSILE /N |
D1 | L | D2 | k | d | p | DRILL | ||||
+1/-0 | MIN.-MAX. | MAX. | MAX. | MIN. | MIN. | MIN. | ||||
2.4 +0.08 -0.15 |
AS2404 | 4.0 | 0.5-2.0 | 4.2-5.0 | 1.0 | 1.55 | 26.00 | 2.5-2.6 | 250 N | 350 N |
AS2406 | 6.0 | 2.0-4.0 | ||||||||
AS2408 | 8.0 | 4.0-6.0 | ||||||||
AS2410 | 10.0 | 6.0-8.0 | ||||||||
AS2412 | 12.0 | 8.0-9.5 | ||||||||
3.0 +0.08 -0.15 |
AS3006 | 6.0 | 1.5-3.5 | 5.4-6.3 | 1.3 | 2.00 | 3.1-3.2 | 550 N | 850 N | |
AS3008 | 8.0 | 3.0-5.0 | ||||||||
AS3010 | 10.0 | 5.0-7.0 | ||||||||
AS3012 | 12.0 | 7.0-9.0 | ||||||||
AS3014 | 14.0 | 9.0-11.0 | ||||||||
AS3016 | 16.0 | 11.0-13.0 | ||||||||
AS3018 | 18.0 | 13.0-15.0 | ||||||||
AS3020 | 20.0 | 15.0-17.0 | ||||||||
3.2 +0.08 -0.15 |
AS3206 | 6.0 | 1.5-3.5 | 5.8-6.7 | 1.3 | 2.00 | 3.3-3.4 | 750 N | 1100 N | |
AS3208 | 8.0 | 3.5-5.0 | ||||||||
AS3210 | 10.0 | 5.0-7.0 | ||||||||
AS3212 | 12.0 | 7.0-9.0 | ||||||||
AS3214 | 14.0 | 9.0-11.0 | ||||||||
AS3216 | 16.0 | 9.0-13.0 | ||||||||
AS3218 | 18.0 | 13.0-15.0 | ||||||||
AS3220 | 20.0 | 15.0-17.0 | ||||||||
AS3225 | 25.0 | 17.0-22.0 | ||||||||
4.0 +0.08 -0.15 |
AS4006 | 6.0 | 1.0-3.0 | 6.9-8.4 | 1.7 | 2.45 | 27.00 | 4.1-4.2 | 1250 N | 1800 N |
AS4008 | 8.0 | 3.0-5.0 | ||||||||
AS4010 | 10.0 | 5.0-6.5 | ||||||||
AS4012 | 12.0 | 6.5-8.5 | ||||||||
AS4014 | 14.0 | 8.5-10.5 | ||||||||
AS4016 | 16.0 | 8.5-12.5 | ||||||||
AS4018 | 18.0 | 12.5-14.5 | ||||||||
AS4020 | 20.0 | 12.5-16.5 | ||||||||
AS4025 | 25.0 | 16.5-21.0 | ||||||||
AS4030 | 30.0 | 21.5-26.0 | ||||||||
AS4035 | 35.0 | 26.0-30.0 | ||||||||
4.8 +0.08 -0.15 |
AS4806 | 6.0 | 1.5-2.5 | 8.3-10.1 | 2.0 | 2.95 | 28.00 | 4.9-5.0 | 1850 N | 2600 N |
AS4808 | 8.0 | 2.5-4.0 | ||||||||
AS4810 | 10.0 | 4.0-6.0 | ||||||||
AS4812 | 12.0 | 6.0-8.0 | ||||||||
AS4814 | 14.0 | 7.5-9.5 | ||||||||
AS4816 | 16.0 | 8.0-12.0 | ||||||||
AS4818 | 18.0 | 12.0-14.0 | ||||||||
AS4820 | 20.0 | 12.0-16.0 | ||||||||
AS4825 | 25.0 | 16.0-21.0 | ||||||||
AS4830 | 30.0 | 21.0-25.0 | ||||||||
AS4835 | 35.0 | 25.0-30.0 | ||||||||
AS4840 | 40.0 | 30.0-35.0 | ||||||||
6.4 +0.08 -0.15 |
AS6410 | 10.0 | 3.0-4.0 | 11.6-13.4 | 2.7 | 3.90 | 32.00 | 6.5-6.6 | 3400 N | 4850 N |
AS6412 | 12.0 | 3.0-6.0 | ||||||||
AS6414 | 14.0 | 6.0-8.0 | ||||||||
AS6416 | 16.0 | 6.0-10.0 | ||||||||
AS6418 | 18.0 | 10.0-12.0 | ||||||||
AS6420 | 20.0 | 12.0-14.0 | ||||||||
AS6425 | 25.0 | 14.0-18.0 | ||||||||
AS6430 | 30.0 | 18.0-23.0 | ||||||||
AS6435 | 35.0 | 23.0-28.0 | ||||||||
AS6440 | 40.0 | 28.0-33.0 |
Production Process
Step 1
Blind rivet machine---making the rivet body
Step 2
Nail making machine---making the mandrel
Step 3
Assembly machine--finish the assembly of rivet body and the mandrel
Package
Regular package is small box+ carton+ pallet, or bulk in carton, each carton weights 20-25kgs.
Borie Fasteners can also provide custom packaging service, such as poly bag or plastic bag with client's logo and information.
Application
Blind rivets can be used just about anywhere if they are properly installed. Most of them are used in Facade, Solar panel bracket, Automoblie, Elevator, Air conditioner, Cabinet, Catering equipment, Aluminum windows&doors, etc..
