Countersunk blind rivets, are specifically designed for situations where only one side of a work surface can be accessed. These rivets feature a countersunk head that ensures a permanent hold and sits flush with the material surface. This characteristic makes them particularly suitable for applications that require a smooth surface finish or need to prevent the rivet from catching on machinery components.

To install the countersunk blind rivet, you need to insert it into a pre-drilled hole and then utilize a rivet tool to expand the nail rivet body and join the two pieces of material. Next, detach and discard the mandrel, leaving behind the countersunk blind rivet in place.

When selecting a nail rivet for your application, it is vital to consider material choice, size, and length.

Firstly, it is important to choose a nail rivet material that matches the material used in your application to avoid issues like rusting or weakening caused by galvanic reactions.

Additionally, selecting the correct size ensures a secure hold that can withstand vibrations. The length of the nail rivet should match the thickness of the materials being fastened and include 1.5 times the diameter of the countersunk blind rivet body to allow proper deformation.

Furthermore, ensure that the grip range of the countersunk blind rivet is suitable for your material thickness and that the drilled holes correspond to the rivet's diameter. It is crucial not to choose a rivet that is too small as this will prevent achieving a secure bond.

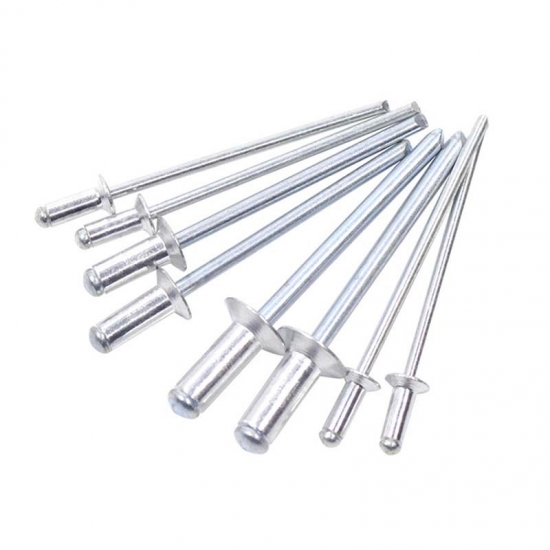

Diameter sizes from 2.4 to 4.8mm.

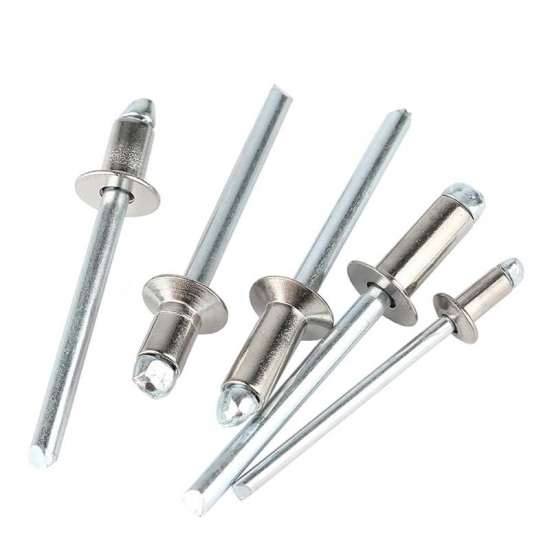

Available materials: Steel, Aluminum, Stainless Steel

Material (Body/Mandrel)



Aluminum/ Steel

Stainless steel/ Stainless Steel

Steel/ Steel

Color painting is available.





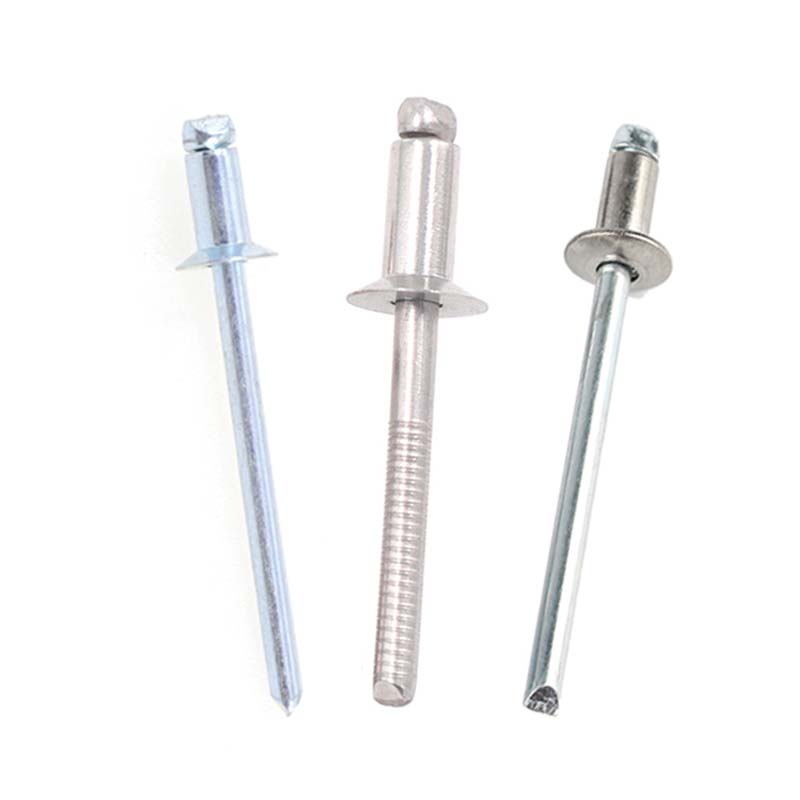

Head Style



Dome Head Rivets



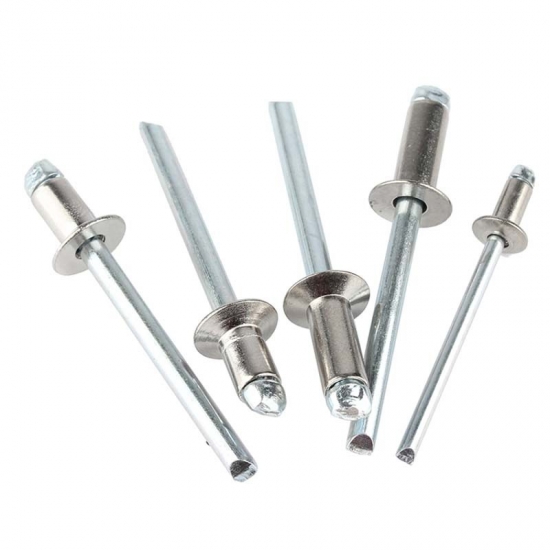

Countersunk Head Rivets

The countersunk or CSK head provides a neat and flat surface for the joint. This enables multi-layer assembly with a safe surface without any projection.



Large Flange Head Rivets

Advantages



Providing a neat and flush finish to the joint.

High Tensile and Shear strength.

Low-cost fastener.

Ideal for a wide range of applications.

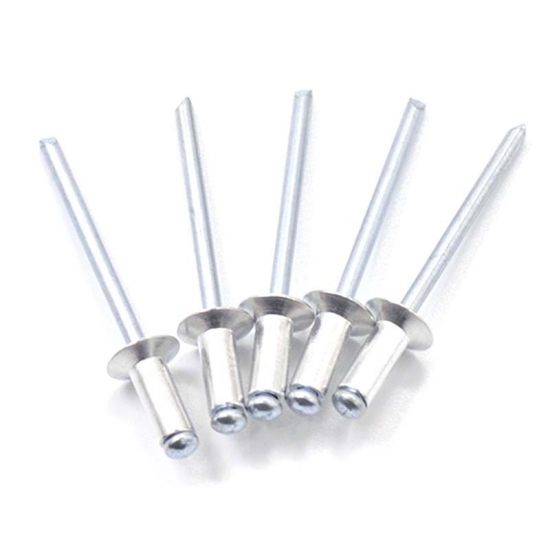

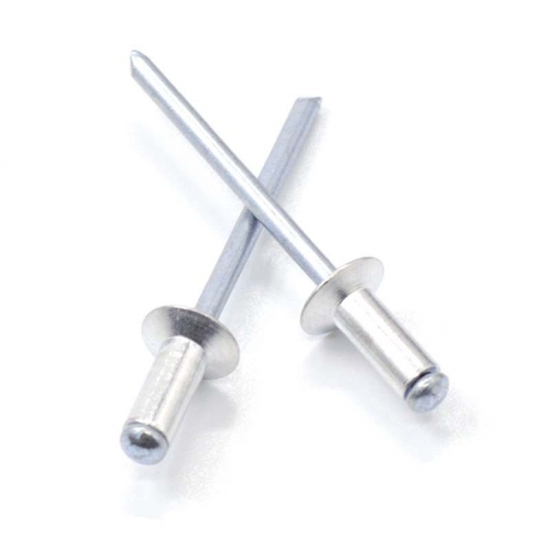

Aluminum/ Steel Dome Head Open End Blind Rivet

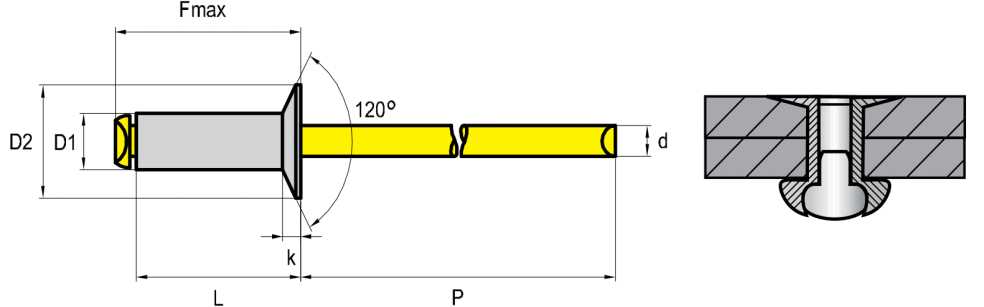

RIVET DIAMETER /mm	RIVET LENGTH /mm	GRIP RANGE /mm	HEAD DIAMETER /mm	MANDREL DIAMETER /mm	MANDREL LENGTH /mm	HOLE SIZE /mm	SHEAR /N	TENSILE /N
D1	L		D2	d	p	DRILL
	+1/-0	MIN.-MAX.		MAX.	MIN.		MIN.	MIN.
2.4 +0.08 -0.15	6.0	2.0-4.0	4.5-5.0	1.37	26.00	2.5-2.6	300 N	500 N
	8.0	4.0-6.0
	10.0	6.0-8.0
3.0 +0.08 -0.15	6.0	2.0-3.5	5.5-6.0	1.70		3.1-3.2	550 N	800 N
	8.0	3.0-5.0
	10.0	5.0-7.0
	12.0	7.0-9.0
	14.0	9.0-12.0
3.2 +0.08 -0.15	6.0	2.0-3.5	5.5-6.0	1.75		3.3-3.4	760 N	980 N
	8.0	3.5-5.0
	10.0	5.0-7.0
	12.0	7.0-9.0
	14.0	9.0-10.5
	16.0	10.5-13.0
4.0 +0.08 -0.15	6.0	1.5-3.0	6.0-7.5	2.15	27.00	4.1-4.2	1200 N	1600 N
	8.0	3.0-5.0
	10.0	5.0-6.5
	12.0	6.5-8.5
	14.0	8.5-10.5
	16.0	10.5-12.5
	18.0	12.5-14.5
	20.0	14.5-16.5
4.8 +0.08 -0.15	6.0	1.0-3.5	8.5-9.0	2.63	28.00	4.9-5.0	1690 N	2230 N
	8.0	2.0-4.0
	10.0	4.0-6.0
	12.0	6.0-8.0
	14.0	8.0-10.0
	16.0	10.0-12.0
	18.0	12.0-14.0
	20.0	12.0-15.0
	25.0	15.0-20.0
	30.0	20.0-25.0
	35.0	25.0-30.0

Production Process

Step 1

Blind rivet machine---making the rivet body

Step 2

Nail making machine---making the mandrel

Step 3

Assembly machine--finish the assembly of rivet body and the mandrel

Package

Bulk carton+ Pallet, each carton weights 20-25kgs

Small box+ carton+ pallet

Providing custom packaging service(poly bag, plastic bag, customer's laber)

For express shipment, each carton is covered with transparent wrap film.

Application

Blind rivets can be used just about anywhere if they are properly installed. Most of them are used in Facade, Solar panel bracket, Automoblie, Elevator, Air conditioner, Cabinet, Catering equipment, Aluminum windows&doors, etc..
