Grounding blind rivets offer a simple and reliable way of grounding a product. The grounding conductor can be used with standard cable sockets to fit into the rivets for easy grounding.
Payment:
T/T, Credit 30/60/90 daysProduct Origin:
Wuxi, China( near to Shanghai Port)Color:
Plain, Copper PlatedMin order:
1000pcsLead Time:
7-35 daysBulk Order Copper Terminal Tag Earth Tab Grounding Blind Rivets

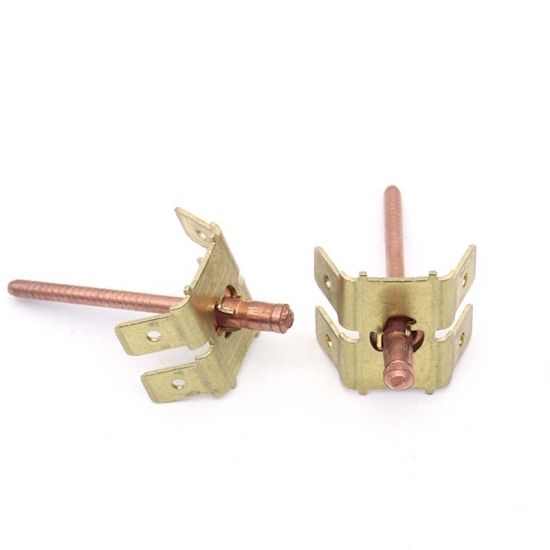

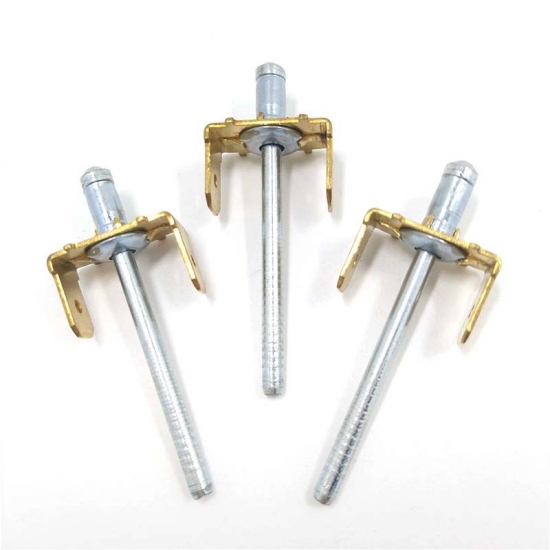

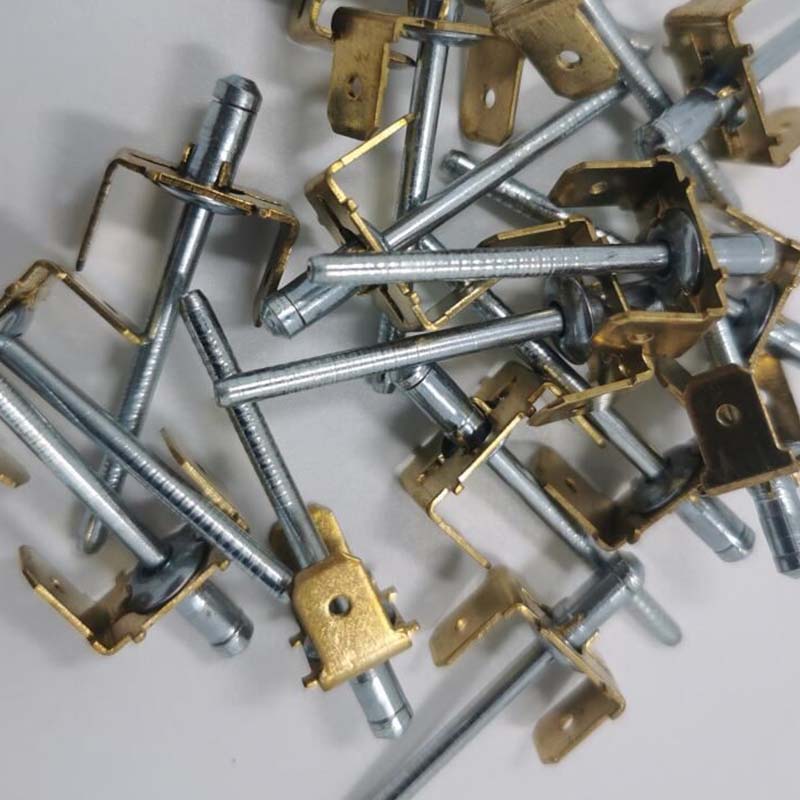

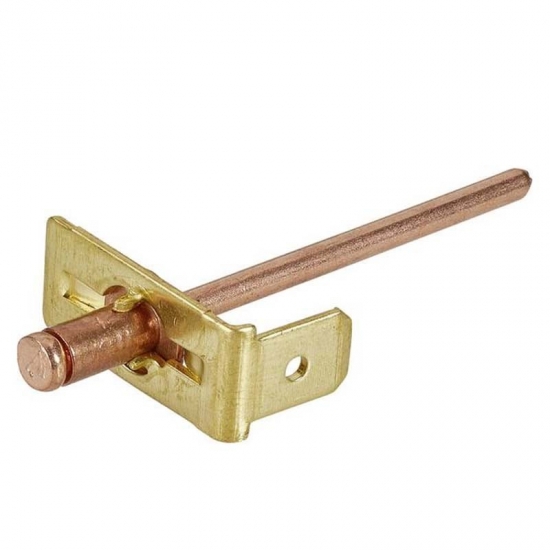

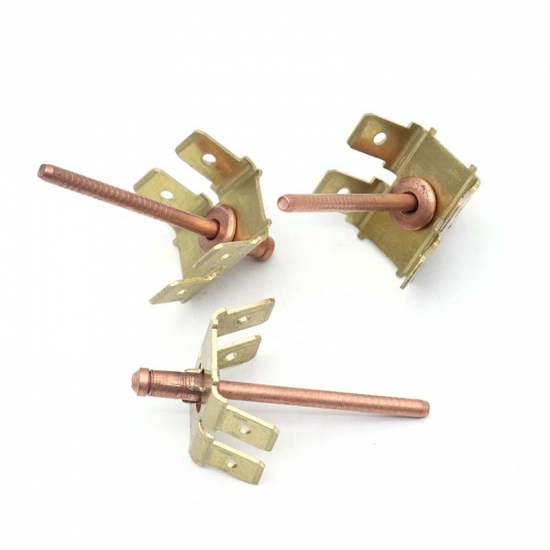

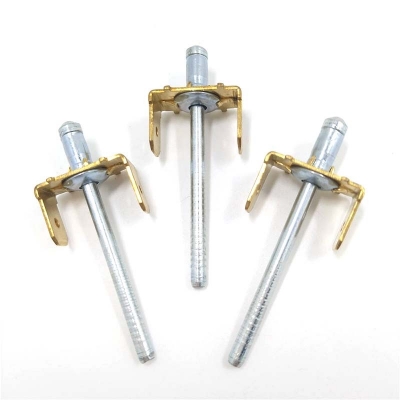

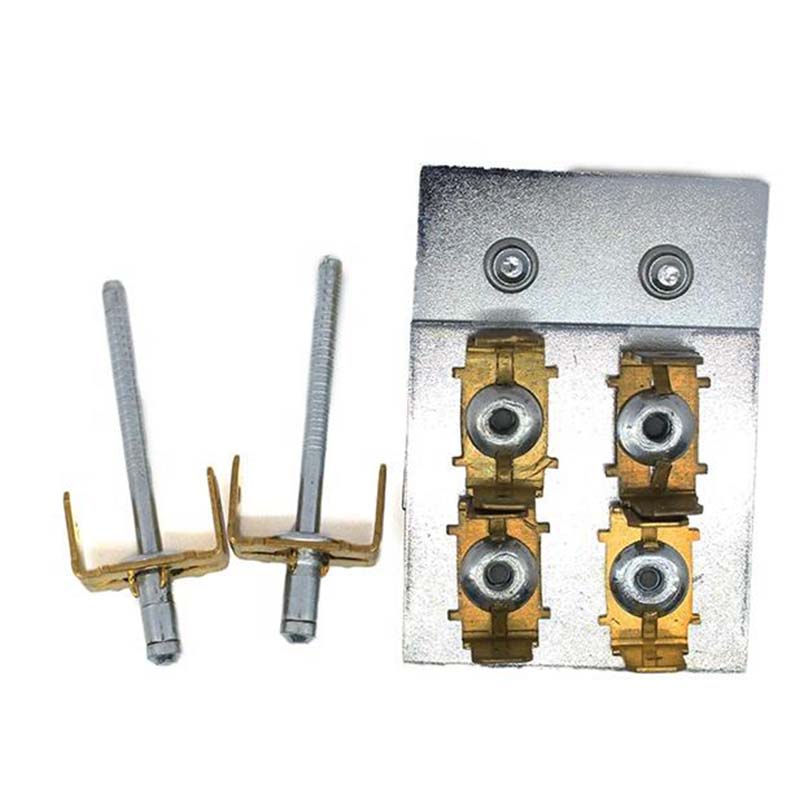

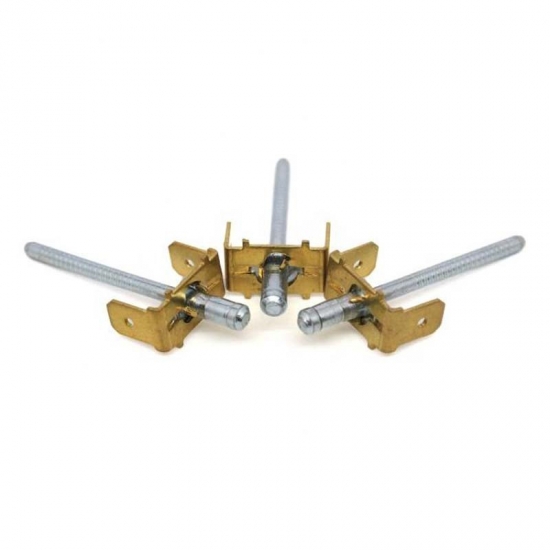

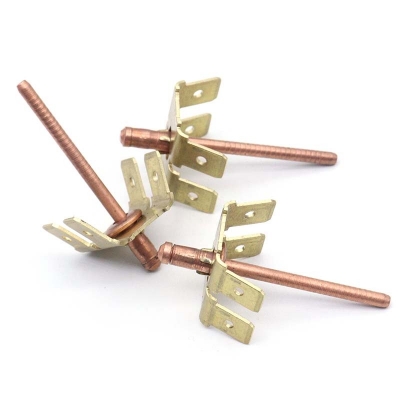

Grounding blind rivets provide a straightforward and dependable method for grounding a product. The rivets consist of a copper rivet with a brass earthing tab pre attached. The mandrel is usually copper plated steel which ensures that a strong joints is achieved. To help create an effective and electrically conductive joint the tab has sharp tines which bite into the side of a correctly sized hole and help to break paint on pre-coated panels.
The rivets can easily accommodate the grounding conductor, allowing it to be used with standard cable sockets for effortless grounding.
Diameter sizes: 4.0mm
Available materials: Copper, Steel
Material (Body/Mandrel)
Steel/ Steel, with brass earthing tab
Copper/ Steel copper plated, with brass earthing tab
Advantages
Easily accommodate the grounding conductor.
Providing a strong joint.

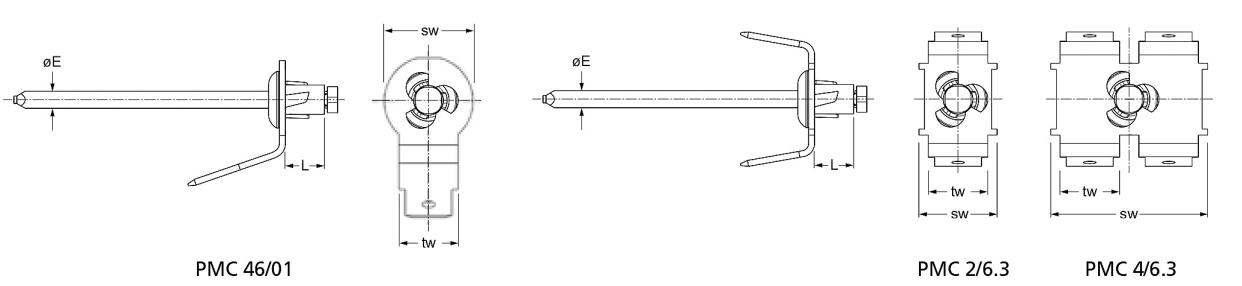

Copper Earth Tab Rivets
| RIVET DIAMETER /mm |
PART NUMBER |
RIVET LENGTH /mm |
GRIP RANGE /mm |
SW | TW | MANDREL DIAMETER /mm |
MANDREL LENGTH /mm |
HOLE SIZE /mm |
SHEAR /N |
TENSILE /N |
| D1 | L |  |
SW | TW | d | p | DRILL |  |
 |
|
| REF. | MAX. | REF. | REF. | REF. | MIN. | MIN. | MIN. | |||
| 4.0 +0.08 -0.15 |
PMC 46/01 | 5.2 | 2.00 | 12.0 | 8.0 | 2.30 | 27.00 | 5.15-5.20 | 1300 N | 1900 N |
| PMC 2/6.3 | 10.5 | |||||||||
| PMC 4/6.3 | 21.0 |
Production Process
Step 1
Blind rivet machine---making the rivet body
Step 2
Nail making machine---making the mandrel
Step 3
Assembly machine--finish the assembly of rivet body and the mandrel
Package
Regular package is small box+ carton+ pallet, or bulk in carton, each carton weights 20-25kgs.
Borie Fasteners can also provide custom packaging service, such as poly bag or plastic bag with client's logo and information.
Application
Blind rivets can be used just about anywhere if they are properly installed. Most of them are used in Facade, Solar panel bracket, Automoblie, Elevator, Air conditioner, Cabinet, Catering equipment, Aluminum windows&doors, etc..
