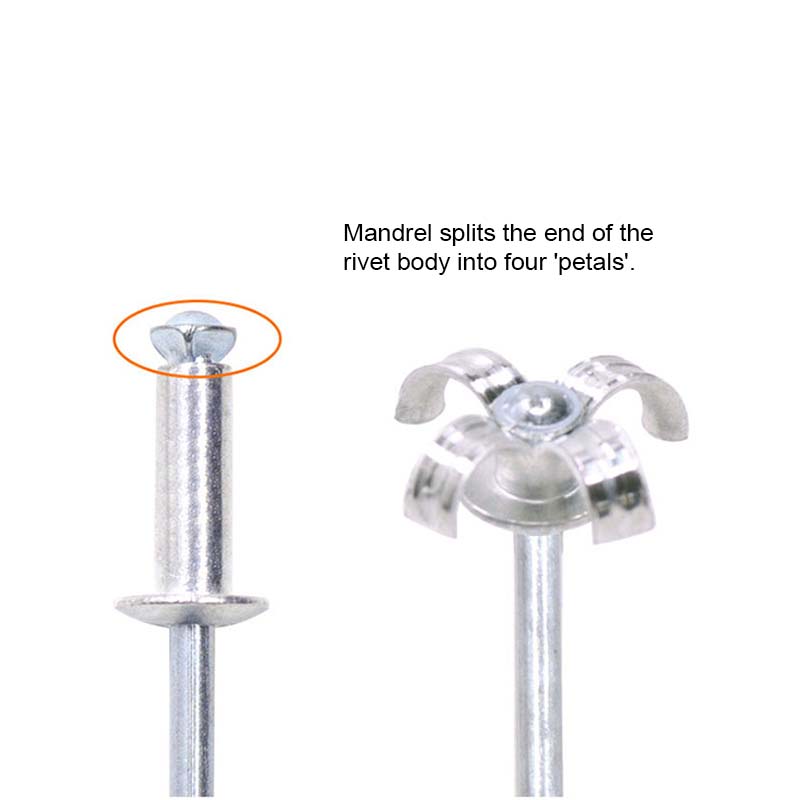

Peel rivet is a type of blind rivet designed to improve support in brittle, soft or ductile materials. The mandrel of peel rivet is designed to split the end of the rivet body into four 'petals'.
Payment:
T/T, Credit 30/60/90 daysProduct Origin:
Wuxi, China( near to Shanghai Port)Color:
Plain, Zinc plated, Color painted( Black, etc.)Min order:
1000pcsLead Time:
7-35 daysCustom Aluminum Painted Peel Type Blind Rivets

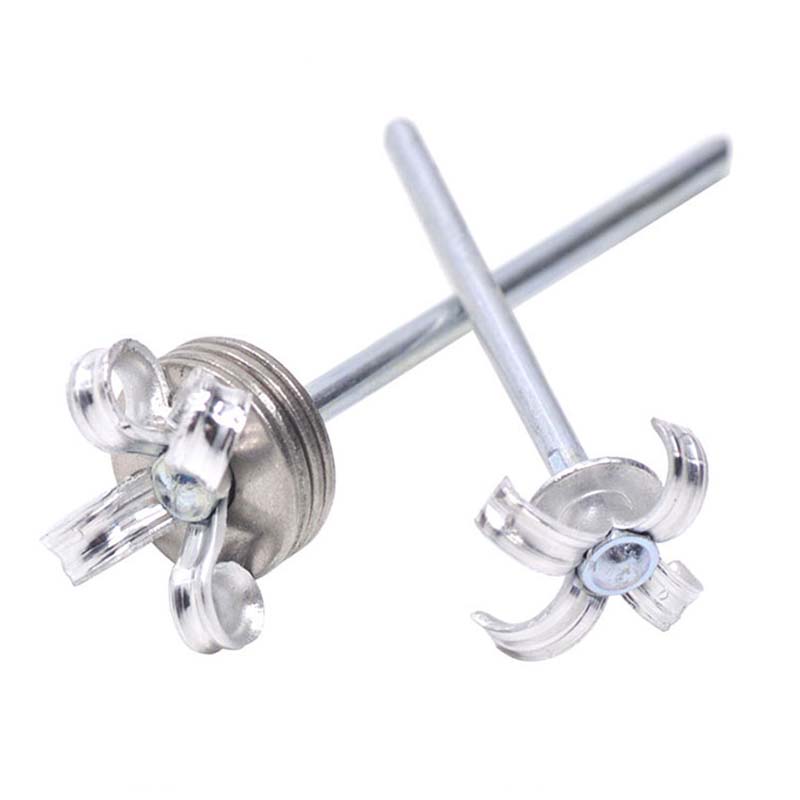

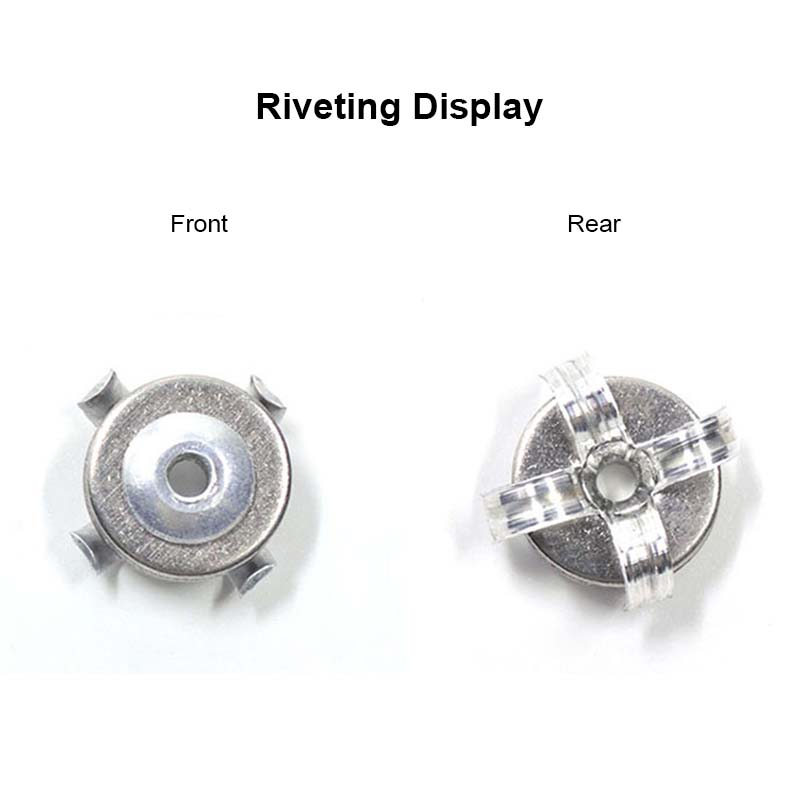

Peel rivet is a type of blind rivet designed to improve support in brittle, soft or ductile materials. The mandrel of peel rivet is designed to split the end of the rivet body into four 'petals'.The petals clamp the material tightly and spread the load over a large area. This greatly reduces the risk of the rivet breaking brittle materials or sinking into soft materials. Peel rivets are ideal for wood, insulation, drywall and plastic materials.
Diameter sizes from 3.2 to 4.8mm.
Available materials: Aluminum/Steel
Material (Body/Mandrel)
Aluminum/ Steel

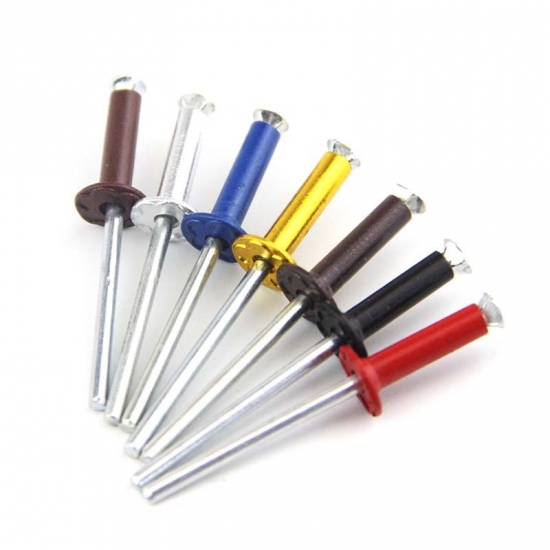

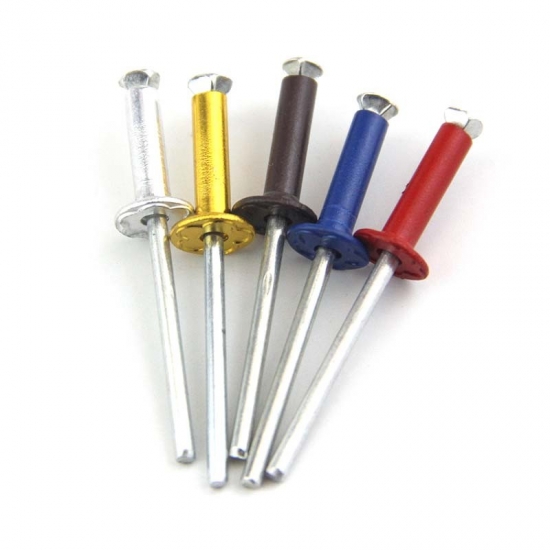

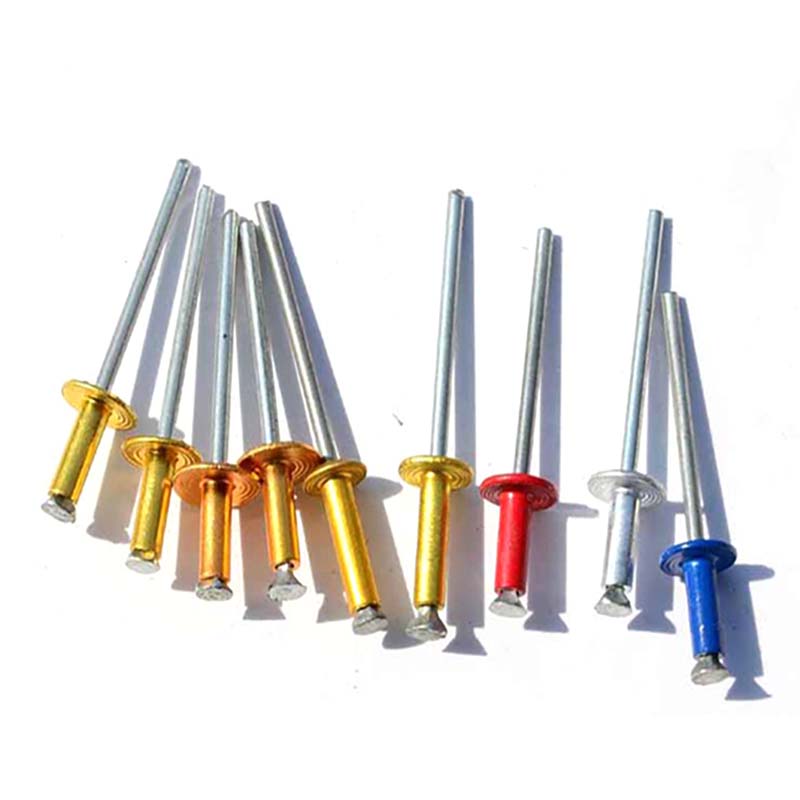

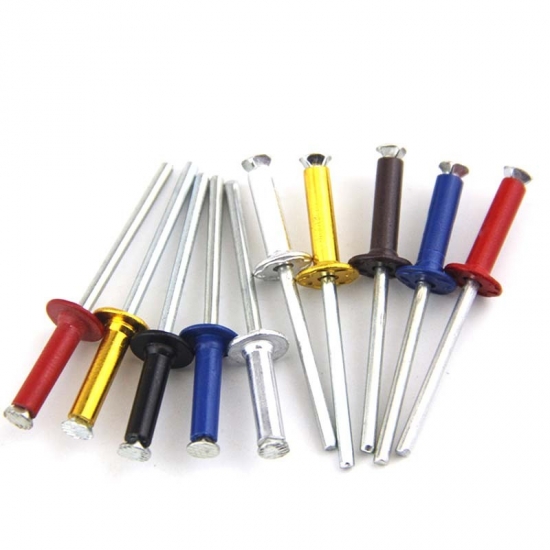

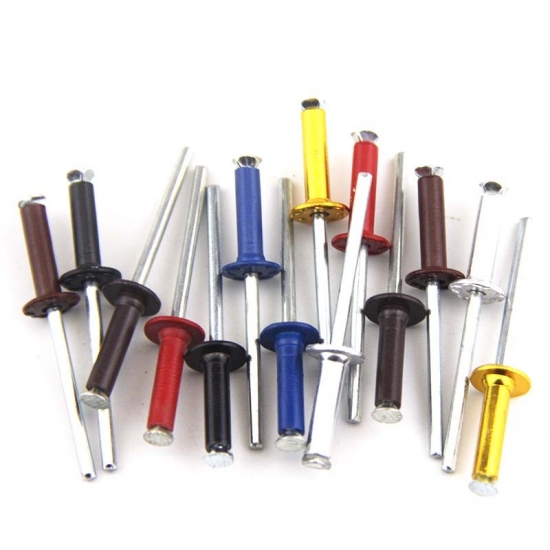

Color painting is available.
Customer's logo is available to protect the brands.
Head Style
Dome Head Rivets
Advantages
Especially for plastics and other brittle or soft materials.
Provides a larger bearing surface,reduce the risk of crushing.
Aluminum/ Steel Peel Type Blind Rivets

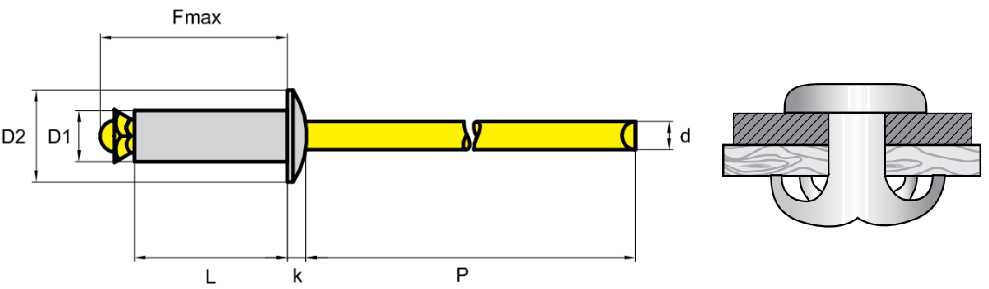

RIVET DIAMETER /mm |
RIVET LENGTH /mm |
GRIP RANGE /mm |
HEAD DIAMETER /mm |
HEAD HEIGHT /mm |
MANDREL DIAMETER /mm |
MANDREL LENGTH /mm |
HOLE SIZE /mm |
SHEAR /N |
TENSILE /N |
D1 | L | D2 | k | d | p | DRILL | |||
+1/-0 | MIN.-MAX. | MAX. | MAX. | MIN. | MAX. | MIN. | MIN. | ||
3.2 +0.08 -0.15 |
8.0 | 0.5-1.0 | 5.8-6.3 | 1.0 | 1.92 | 26.00 | 3.7 | 760 N | 620 N |
10.0 | 1.0-3.0 | ||||||||
12.0 | 3.0-5.0 | ||||||||
4.0 +0.08 -0.15 |
10.0 | 1.5-5.0 | 7.5-8.0 | 1.3 | 2.30 | 27.00 | 4.5 | 1200 N | 1150 N |
12.0 | 4.0-6.5 | ||||||||
14.0 | 6.0-9.0 | ||||||||
16.0 | 8.0-11.0 | ||||||||
18.0 | 10.0-13.0 | ||||||||
20.0 | 12.0-15.0 | ||||||||
25.0 | 15.0-20.0 | ||||||||
30.0 | 20.0-25.0 | ||||||||
4.8 +0.08 -0.15 |
10.0 | 0.5-4.0 | 9.0-9.5 | 1.4 | 2.80 | 28.00 | 5.3 | 1690 N | 1600 N |
12.0 | 2.0-6.0 | ||||||||
14.0 | 4.0-8.0 | ||||||||
16.0 | 6.0-10.0 | ||||||||
18.0 | 8.0-12.0 | ||||||||
20.0 | 10.0-14.0 | ||||||||
22.0 | 12.0-16.0 | ||||||||
25.0 | 16.0-19.0 | ||||||||
30.0 | 19.0-24.0 | ||||||||
35.0 | 24.0-29.0 | ||||||||
40.0 | 29.0-34.0 | ||||||||
50.0 | 39.0-44.0 |
Production Process
Step 1
Blind rivet machine---making the rivet body
Step 2
Nail making machine---making the mandrel
Step 3
Assembly machine--finish the assembly of rivet body and the mandrel
Package
Regular package is small box+ carton+ pallet, or bulk in carton, each carton weights 20-25kgs.
Borie Fasteners can also provide custom packaging service, such as poly bag or plastic bag with client's logo and information.
Application
Blind rivets can be used just about anywhere if they are properly installed. Most of them are used in Facade, Solar panel bracket, Automoblie, Elevator, Air conditioner, Cabinet, Catering equipment, Aluminum windows&doors, etc..
