Grooved Rivets are specifically designed for installation in holes made of fibrous materials, such as wood and certain low to medium density plastics.
Payment:
T/T, Credit 30/60/90 daysProduct Origin:
Wuxi, China( near to Shanghai Port)Color:
Plain, Zinc plated, Color painted( Black, etc.)Min order:
1000pcsLead Time:

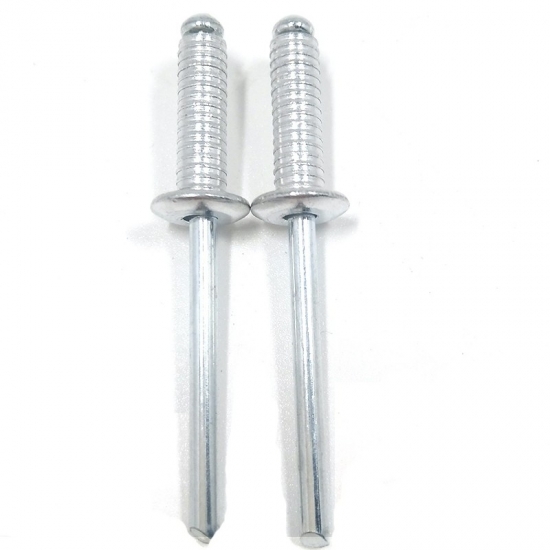

7-35 daysBulk Grooved Blind Rivets For Furniture

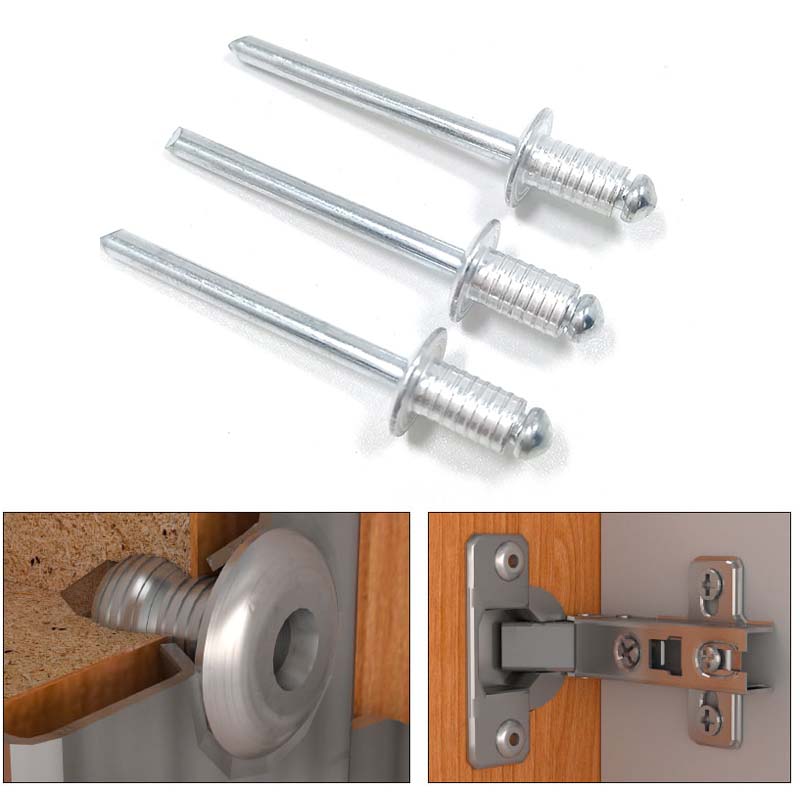

Grooved Rivets are specifically designed for installation in holes made of fibrous materials, such as wood and certain low to medium density plastics.
When properly set, the annular rings surrounding the body of the rivet will securely grip the wood or plastic and expand radially within the hole. It is important to note that this type of rivet is meant to expand exclusively within the hole, unlike most blind rivets which expand at the rear side. As long as the final substrate is a fibrous material, only one such material is required.
Other materials can be attached to wooden products, as long as they are positioned between the head of the rivet and the wood. However, it is crucial to ensure that the fibrous material has sufficient thickness for the proper setting of the rivet.
Diameter sizes from 3.2 to 4.8mm.
Available materials: Aluminum/Steel
Material (Body/Mandrel)
Aluminum/ Steel
Color painting is available.
Head Style
Dome Head Rivets
Advantages
Ideal for timeber, plastic or fibrous material application.
The grooves on body expand and bite into matierals, create a secure hold.
Used on blind(non-drilled-through) holes, provide a solid and high quality joint.
Full Steel Uni Grip Blind Rivets

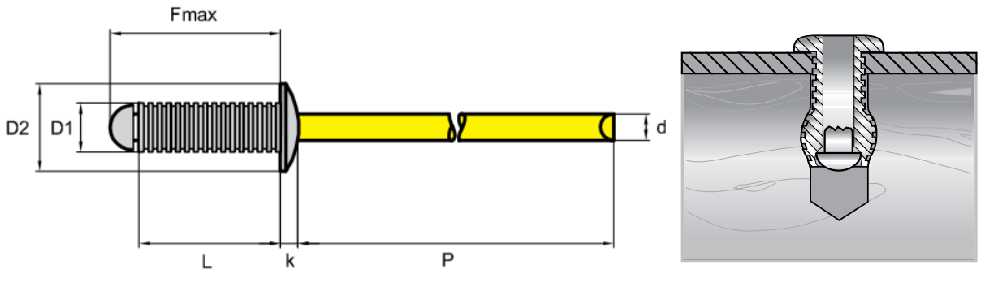

RIVET DIAMETER /mm |
RIVET LENGTH /mm |
GRIP RANGE /mm |
HEAD DIAMETER /mm |
HEAD HEIGHT /mm |
MANDREL DIAMETER /mm |
MANDREL LENGTH /mm |
HOLE SIZE /mm |
SHEAR /N |
TENSILE /N |
D1 | L | ![]() |
D2 | k | d | p | DRILL | ![]() |
![]() |
+1/-0 | MAX. | MAX. | MAX. | MIN. | MIN. | MIN. | |||
3.2 +0.35 -0.00 |
10.0 | 6.00 | 5.8-6.5 | 1.0 | 1.75 | 26.00 | 3.4-3.5 | 525 N | 930 N |
14.0 | 10.00 | ||||||||
4.0 +0.35 -0.00 |
8.0 | 4.00 | 7.5-8.0 | 1.3 | 2.15 | 27.00 | 4.3-4.4 | 885 N | 1410 N |
10.0 | 6.00 | ||||||||
12.0 | 8.00 | ||||||||
16.0 | 12.00 | ||||||||
4.8 +0.35 -0.00 |
8.0 | 4.00 | 9.0-9.5 | 1.4 | 2.65 | 28.00 | 5.1-5.2 | 1185 N | 1575 N |
10.0 | 6.00 | ||||||||
11.0 | 7.00 | ||||||||
12.0 | 8.00 | ||||||||
14.0 | 10.00 | ||||||||
16.0 | 12.00 | ||||||||
18.0 | 14.00 | ||||||||
20.0 | 16.00 | ||||||||
25.0 | 20.00 | ||||||||
30.0 | 25.00 |
Production Process
Step 1
Blind rivet machine---making the rivet body
Step 2
Nail making machine---making the mandrel
Step 3
Assembly machine--finish the assembly of rivet body and the mandrel
Package
Regular package is small box+ carton+ pallet, or bulk in carton, each carton weights 20-25kgs.
Borie Fasteners can also provide custom packaging service, such as poly bag or plastic bag with client's logo and information.
Application
Blind rivets can be used just about anywhere if they are properly installed. Most of them are used in Facade, Solar panel bracket, Automoblie, Elevator, Air conditioner, Cabinet, Catering equipment, Aluminum windows&doors, etc..
