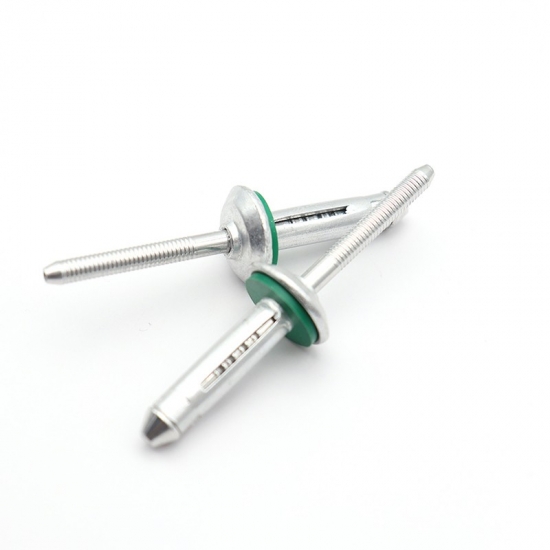

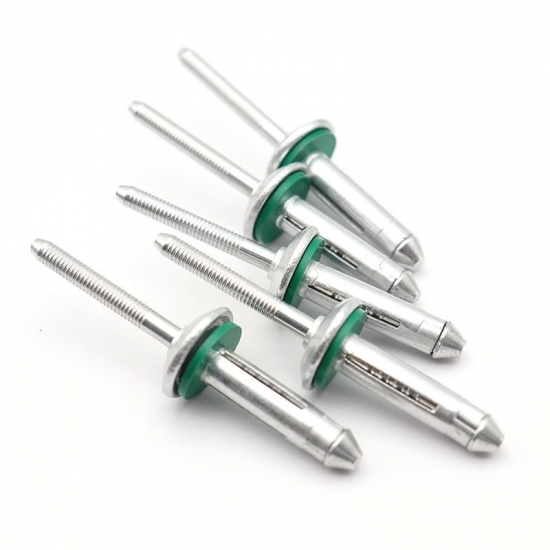

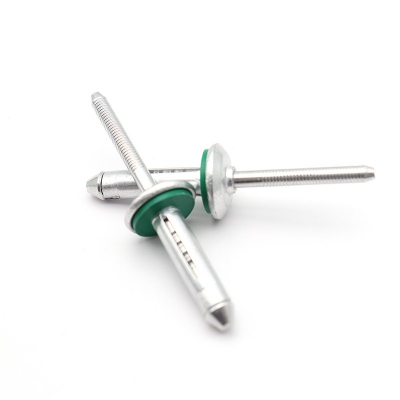

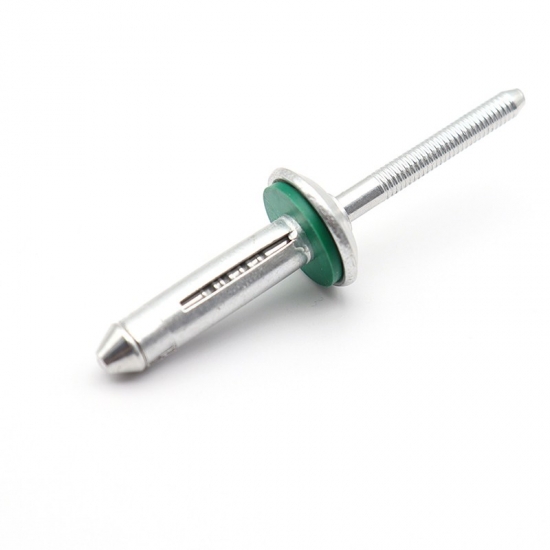

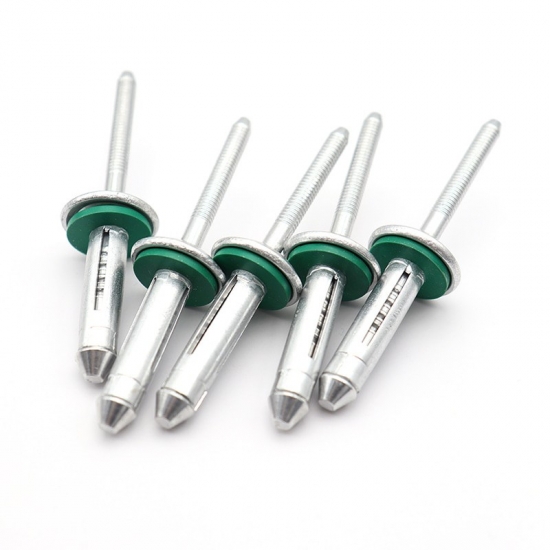

Bulbtite rivets is a high waterproof performance rivet, differing from other rivets, as it features tri-fold design and an EPDM washer.
Payment:
T/T, Credit 30/60/90 daysProduct Origin:
Wuxi, China( near to Shanghai Port)Color:
Plain, Color painted( Black, etc.)Min order:
1000pcsLead Time:

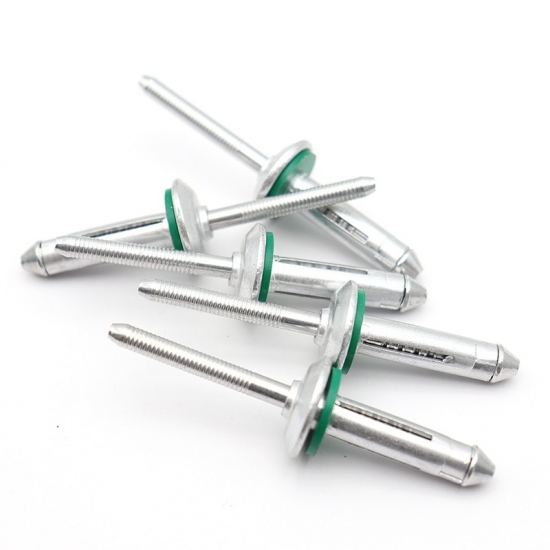

7-35 daysSupplier Waterproof Bulbtite Blind Rivets With EPDM Washer
Bulbtite rivets is a high performance rivet, differing from other rivets, as it features tri-fold design and an EPDM washer. It spreads clamping force through its folded blades while providing excellent pull resistance, making it ideal for refrigerated trucks and secure anchor points.

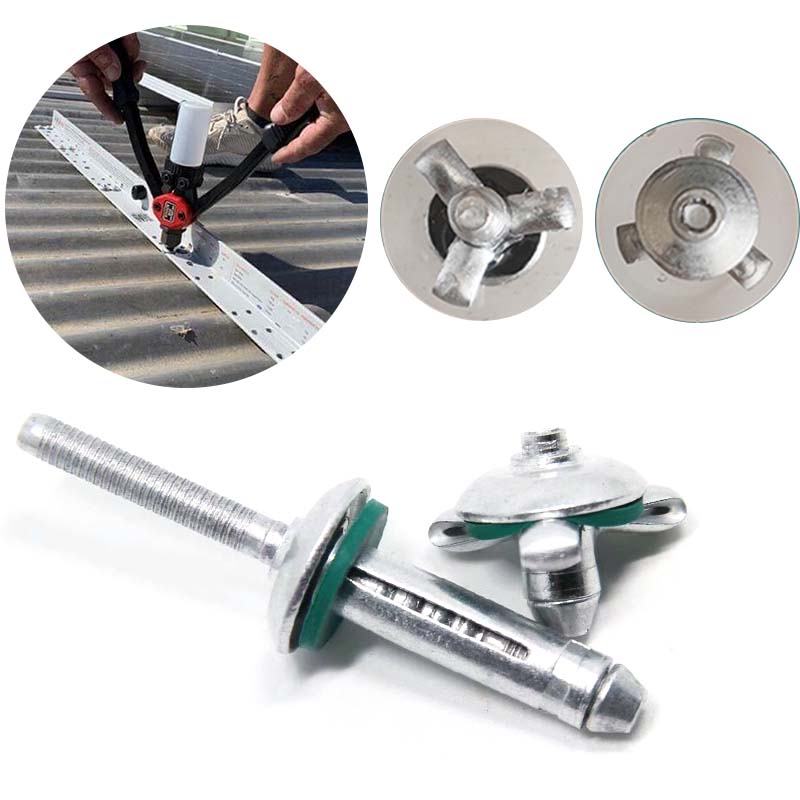

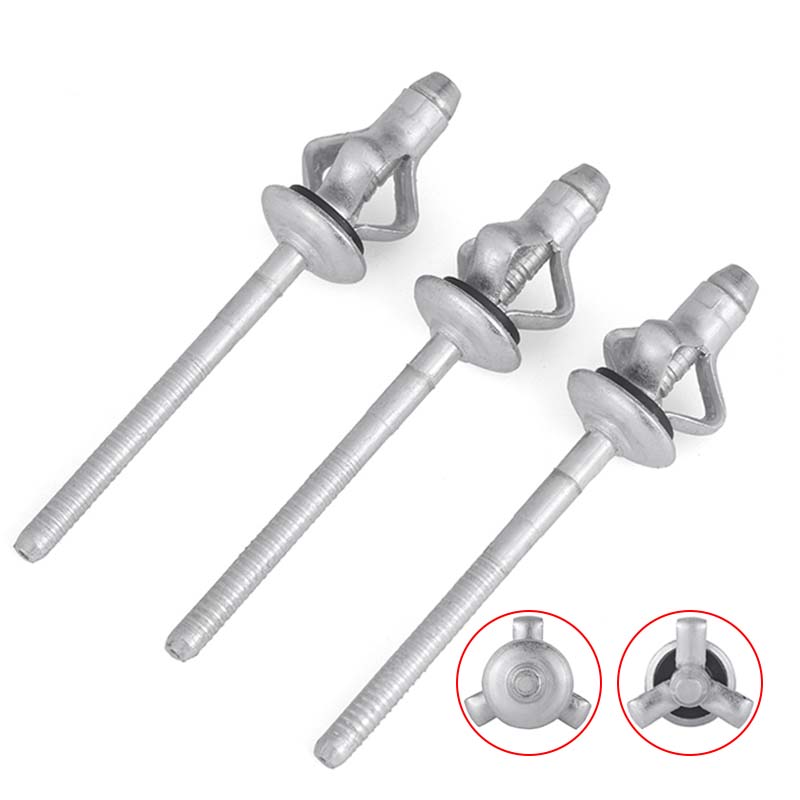

During the installation process, the rivet body transforms into three individual 'wings' and creates a blind-side upset head. The mandrel of Bulbtite rivets breaks off at the same level as the rivet head. To install these rivets with flush break mandrels, a special installation tool nose tip is needed.
Diameter sizes: 5.2mm, 6.4mm, 7.5mm.
Available materials: Aluminum, Stainless Steel
Material (Body/Mandrel)
Aluminum/ Aluminum
Full stainless steel can be customized.

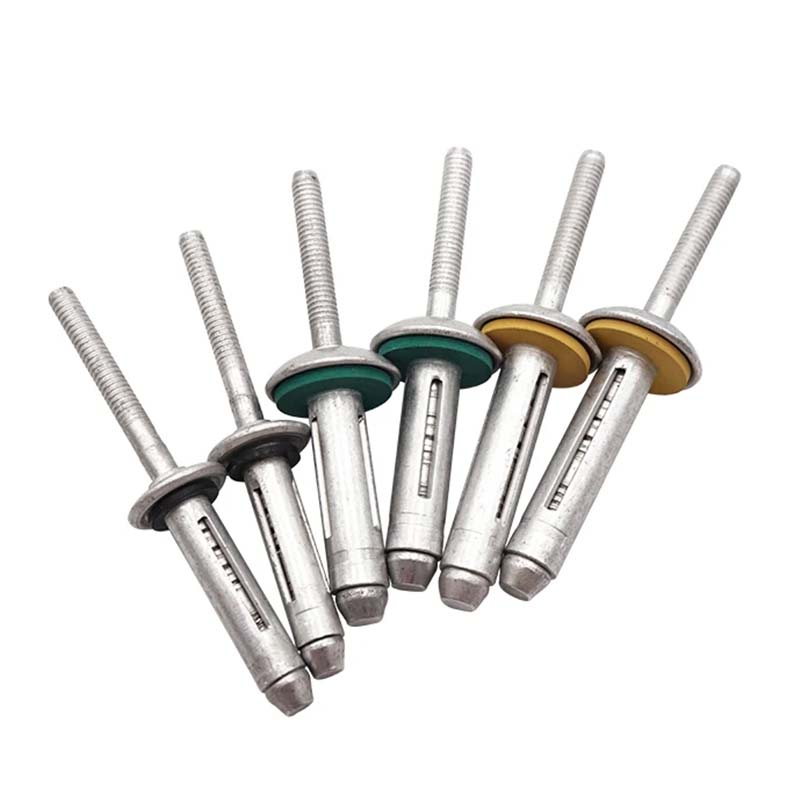

Color EPDM washer is available.
Head Style
Dome Head Rivets
Advantages
Designed to prevent breakage of brittle materials because its head can distribute the clamping force evenly.
Ideal for applications where sealing is required, as it has an EPDM washer that protects against moisture and leaks.
Stable fixation on materials subject to vibrations.
High tensile and shear strength.
Full alluminum construction for corrosion resistance.
Wide grip range.
Aluminum Dome Head Waterproof Bulbtite Blind Rivets
RIVET DIAMETER /mm |
RIVET LENGTH /mm |
GRIP RANGE /mm |
HEAD DIAMETER /mm |
HEAD HEIGHT /mm |
MANDREL DIAMETER /mm |
MANDREL LENGTH /mm |
HOLE SIZE /mm |
SHEAR /N |
TENSILE /N |

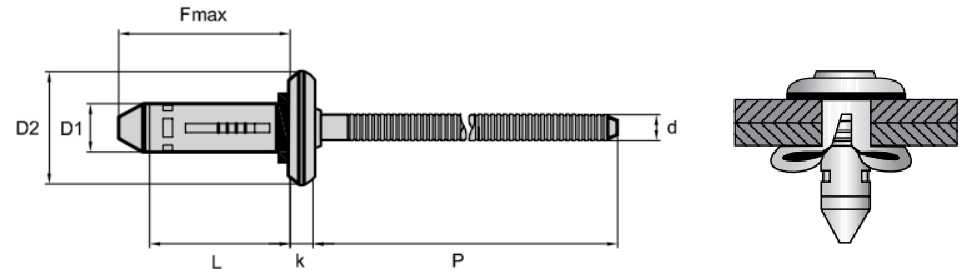

D1 | L | D2 | k | d | p | DRILL | |||
+1/-0 | MIN.-MAX. | MAX. | MAX. | MIN. | MIN. | MIN. | |||
5.2 +0.08 -0.15 |
17.5 | 0.5-4.8 | 11.3-12.5 | 2.5 | 3.00 | 28.00 | 5.3-5.5 | 3004 N | 2002 N |
19.1 | 1.5-6.4 | ||||||||
22.2 | 4.7-9.6 | ||||||||
25.4 | 7.9-12.7 | ||||||||
28.6 | 11.1-15.9 | ||||||||
31.8 | 14.3-19.1 | ||||||||
6.4 +0.08 -0.15 |
20.2 | 1.6-6.4 | 13.5-14.0 | 2.9 | 3.90 | 30.00 | 6.4-6.6 | 4200 N | 2500 N |
23.4 | 3.2-9.5 | ||||||||
26.5 | 6.4-12.7 | ||||||||
29.7 | 9.5-15.9 | ||||||||
7.5 +0.08 -0.15 |
28.0 | 1.1-9.5 | 18.2-19.4 | 4.1 | 4.40 | 27.00 | 7.6-7.8 | 6230 N | 4895 N |
34.0 | 6.4-15.9 |
Production Process
Step 1
Blind rivet machine---making the rivet body
Step 2
Nail making machine---making the mandrel
Step 3
Assembly machine--finish the assembly of rivet body and the mandrel
Package
Regular package is small box+ carton+ pallet, or bulk in carton, each carton weights 20-25kgs.
Borie Fasteners can also provide custom packaging service, such as poly bag or plastic bag with client's logo and information.
Application
Bulbtite rivets are commonly used on general roofing and cladding.
