The full hex increases its body diameter, enhancing thread strength and torque capability.
Payment:
TT , Credit 30/60/90 daysProduct Origin:
Wuxi, China( near to Port Shanghai)Color:
Plain, Zinc, Black, Dacromet, Geomet, etcMin order:
1000pcsLead Time:

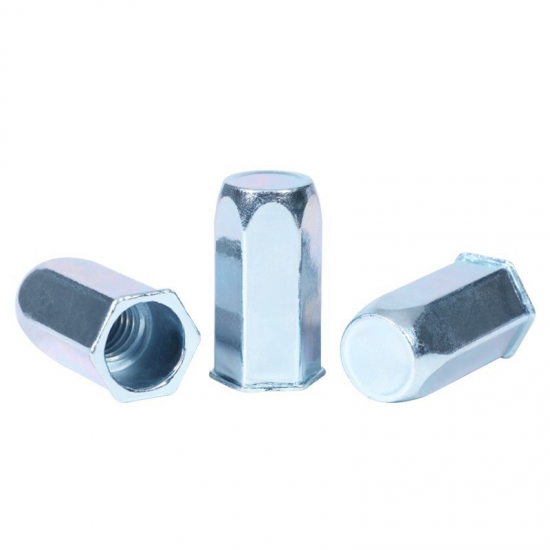

7-35daysCheap Price Reduced Hex Head Full Hex Body Close End Rivet Nuts
The full hex increases its body diameter, enhancing thread strength and torque capability. Full hex body prevents the rivet nut turning, making this rivet nut highly applied in repair or servicing work. Furthermore, close end also enhances its watertight.
Rivet Nuts Are Used In A Variety Of Industries:
|
|
Rivet Nut Head Type
Rivet nuts come in many shapes and sizes: open-end, closed-end (good for water control), round body, hex body, reduced head etc.
Rivet Nut Body Type
Common Material Used For Solid Rivet
Selecting A Blind Rivet Nut
Thread Sizes: M4 – M10
Material: Aluminium, steel, stainless steel A2 & A4
Head Styles: Flat, countersunk,large flange, reduced
Body: Round with and without splines, Half Hex, Full Hex
Option:Closed end, Open end
Hole Size: Metric, Inch

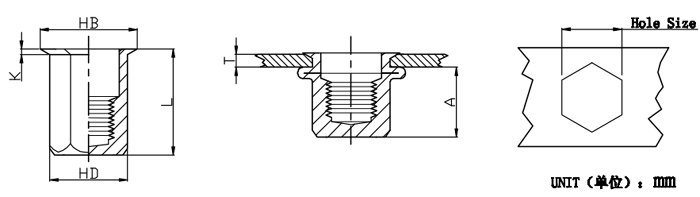

| Thread | T(GRIP RANGE) | A | Hole Size | HD | HB | K | L | ||
| Min | Max | Ref | 0.1 | 0.07 | |||||
| 0 | -0.1 | ||||||||
| M4*0.7 | 0.5-2.5 | 12.3 | 6 | 5.9 | 7 | 0.25 | 0.5±0.1 | 16.0±0.25 | |
| -0.1 | |||||||||
| M5*0.8 | 0.5-3.0 | 15.2 | 7 | 6.9 | 8 | 0.25 | 0.5±0.1 | 20.0±0.3 | |
| -0.1 | |||||||||
| M6*1.0 | 0.5-3.5 | 14.5 | 9 | 8.9 | 10 | 0.25 | 0.6±0.15 | 20.5±0.3 | |
| -0.1 | |||||||||
| M8*1.25 | 1.0-4.0 | 17 | 11 | 10.9 | 12 | 0.25 | 0.65±0.15 | 23.0±0.3 | |
| -0.1 | |||||||||
| M10*1.5 | 1.5-4.5 | 20 | 13 | 12.9 | 14.5 | 0.3 | 0.75±0.15 | 28.5±0.35 | |
| -0.1 | |||||||||
The hexagonal body prevents this from turning, making this type of rivet nut widely preferred for re...
Reduced head knurled closed end rivet nuts imporove torque-to-turn resistance for softer materials a...
Flat head round body close end rivet nuts offers a quick, reliable and low-cost solution for i...
Closed end rivet nuts provide a 100% watertight connection, ensuring that the thread remains unaffec...
Flat head full hex blind rivet nuts feature a hexagonal body, a large flange and a close end, result...
Semi hex body close end threaded inserts feature a half hex and a half round body, so it is not only...
Reduced head closed end threaded inserts provide a strong captivated thread in thin materials and in...
Knurled body rivet nuts feature increased torque strength, extreme vibration resistance and 360°...
