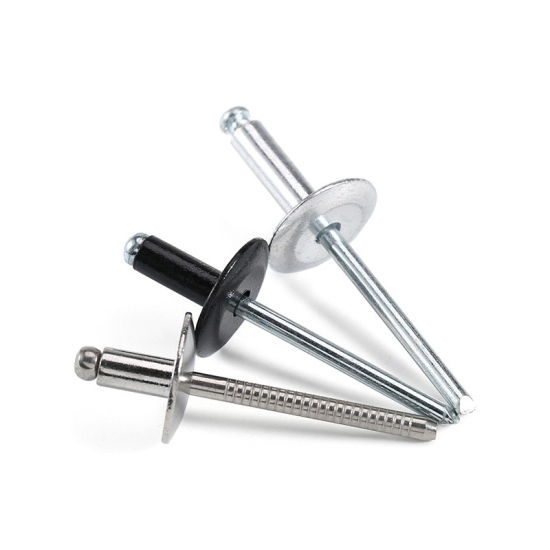

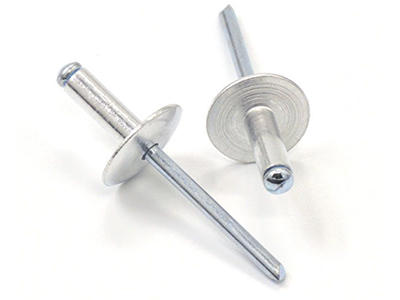

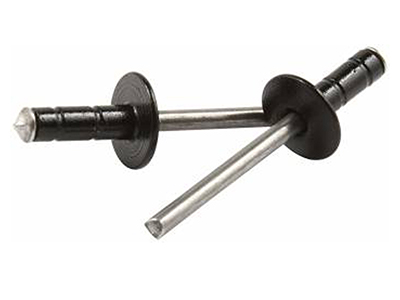

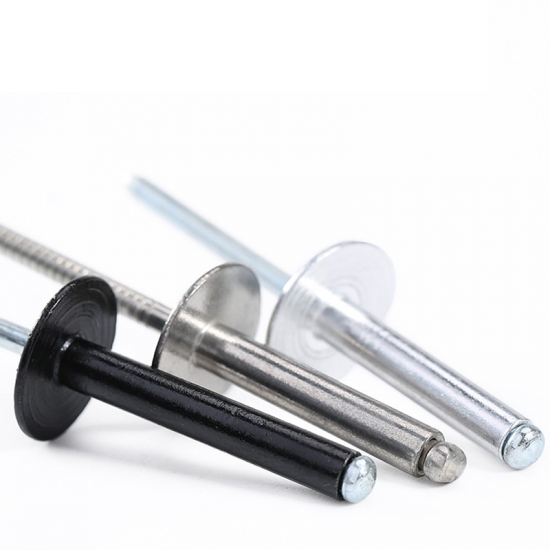

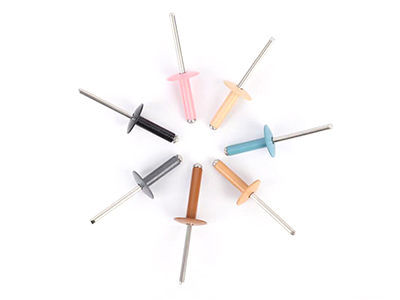

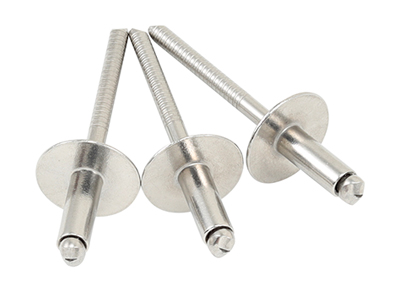

Large flange pop rivets, also known as big flange pop rivets or wide flange blind rivets, are a type of fast used for joining two or more materials together.

Large flange pop rivets differ from standard pop rivets in that they have a wider flange or head. The flange is the part of the rivet that provides a larger load bearing surface for the material to be joined. Larger flanges distribute the load over a larger area, which improves the strength and stability of the joint.



Material (Body/Mandrel)

• Aluminum/ Aluminum
• Aluminum/ Steel
• Aluminum/ Stainless steel
• Steel/ Steel
• Stainless Steel/ Steel
• Stainless Steel/ Stainless Steel
• Copper/ Steel
• Copper/ Bronze
• Monel/ Steel

Head Style

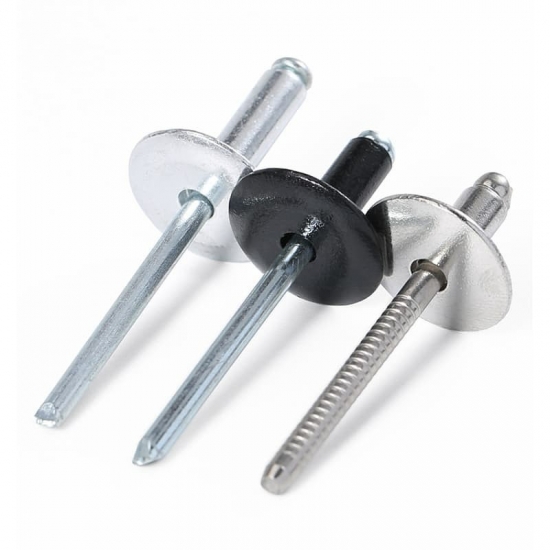

• Dome Head Rivets

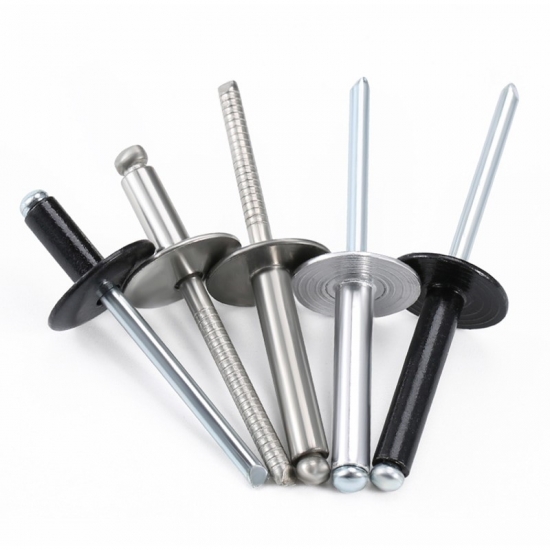

• Large Flange Head Rivets

Advantages

• Enhanced load distribution: Large flange pop rivets provide better load distribution and reduce the risk of deformation or damage to the fastening material.

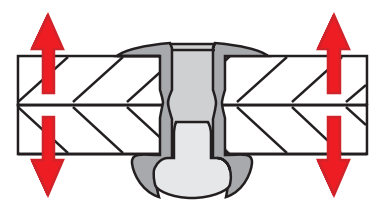

• Increased shear strength: The larger flange size enhances the shear strength of the rivet, making it suitable for applications with higher load requirements.

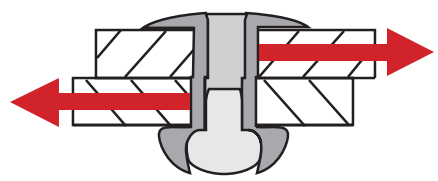

• Improved pull-through resistance: Large flange pop rivets improve resistance to pull-through forces and ensure a safe and long-lasting connection.
• Greater hole filling capacity: Larger flanges increase the coverage area, allowing rivets to fill larger holes, which is useful when dealing with irregular or oversized holes.
• Enhanced aesthetics: Large flange pop rivets can provide a visually appealing finish that provides decorative properties to the components.
• Efficient installation: Large flange pop rivets can be easily and quickly installed with common hand or power tools, increasing productivity and reducing assembly time.

How Does Large flange Pop Rivets Work?

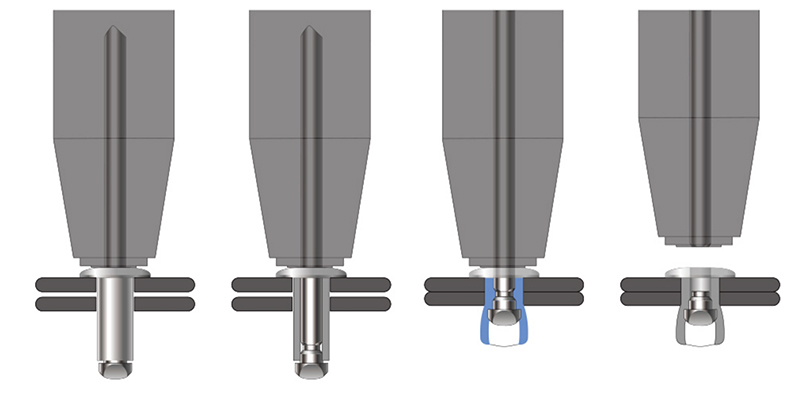

1. Position the materials to be joined together, ensuring they are aligned correctly.
2. Select an appropriately sized large flange pop riv for the application.
3. Insert the rivet through the pre-drilled holes in the materials to be joined.
4. Place the rivet gun's nosepiece over the rivet's mandrel.
5. Squeeze the handles of the rivet gun firmly to compress the rivet.
6. As the rivet is compressed, the mandrel is pulled into the rivet body, deforming it.
7. Continue squeezing the handles until you feel a "pop" or click sound, indicating that the rivet is properly set.
8. Release the handles of the rivet gun to open the jaws and remove the gun from the rivet.
9. Inspect the rivet installation to ensure it is secure and flush with the materials.
10. Repeat the process for any additional rivets required.

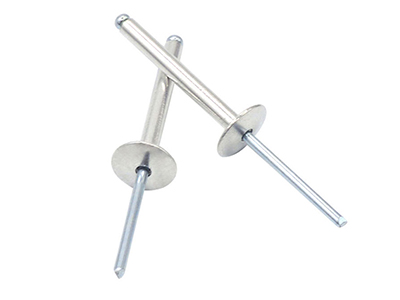

Aluminum/ Steel Large Head Open End Blind Rivet

RIVET DIAMETER /mm	RIVET LENGTH /mm	GRIP RANGE /mm	HEAD DIAMETER /mm	HEAD HEIGHT /mm	MANDREL DIAMETER /mm	MANDREL LENGTH /mm	HOLE SIZE /mm	SHEAR /N	TENSILE /N
D1	L		D2	k	d	p	DRILL
	+1/-0	MIN.-MAX.		MAX.	MAX.	MIN.		MIN.	MIN.
3.2 +0.08 -0.15	6.0	1.0-3.5	8.9-9.5	1.4	1.75	26.00	3.3-3.4	760 N	980 N
	8.0	3.5-5.0
	10.0	5.0-7.0
	12.0	7.0-9.0
	14.0	9.0-11.0
4.0 +0.08 -0.15	6.0	1.0-3.0	11.4-12.0	1.7	2.10	27.00	4.1-4.2	1200 N	1600 N
	8.0	3.0-5.0
	10.0	5.0-6.5
	12.0	6.5-8.5
	14.0	8.5-10.5
	16.0	10.5-12.5
	18.0	12.5-14.5
	20.0	14.5-16.5
4.8 +0.08 -0.15	8.0	2.5-4.0	13.4-14.0	1.8	2.63	28.00	4.9-5.0	1690 N	2230 N
	10.0	4.0-6.0
	12.0	6.0-8.0
	14.0	8.0-10.0
	16.0	10.0-12.0
	18.0	12.0-14.0
	20.0	12.0-16.0
	25.0	16.0-21.0
	30.0	21.0-25.0
	35.0	25.0-30.0
4.8 +0.08 -0.15	10.0	4.0-6.0	15.4-16.0	2.0	2.95		4.9-5.0	1690 N	2230 N
	12.0	6.0-8.0
	14.0	8.0-10.0
	16.0	10.0-12.0
	18.0	12.0-14.0
	20.0	12.0-16.0
	25.0	16.0-21.0
	30.0	21.0-25.0
	35.0	25.0-30.0

Production Process

Step 1

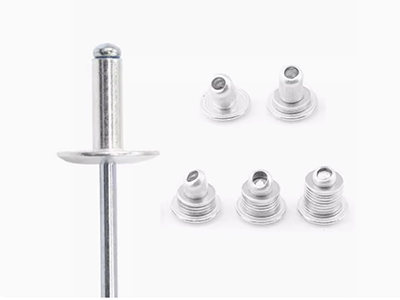

Blind rivet machine---making the rivet body

Step 2

Nail making machine---making the mandrel

Step 3

Assembly machine--finish the assembly of rivet body and the mandrel

Package

Regular package is small box+ carton+ pallet, or bulk in carton, each carton weights 20-25kgs.

Borie Fasteners can also provide custom packaging service, such as poly bag or plastic bag with client's logo and information.

Big Flange Pop Rivet Application

Large flange Pop Rivet have a wide range of applications in various industries and settings. Most of them are used in:

• Construction industry.
• Automotive assembly.
• Aerospace manufacturing.
• HVAC (heating, ventilation, and air conditioning).
• Sheet fabrication.
• Electrical equipment installation.
• Marine industry.
• Furniture manufacturing.
• Signage and display assembly.
• Appliance manufacturing.
