Structural blind rivet is an ideal choice for applications that require a combination of structural strength, vibration resistance, and multi-grip capability in blind side situations.

This breakstem fastener offers excellent hole fill and creates fully sealed joints that are resistant to vibrations. Additionally, the structural rivet can effectively close large gaps and prevent the movement of sheets. Its high shear and tensile strength also allow for the use of fewer rivets per assembly.

This versatile fastener finds applications in a variety of industries such as automotive, cabinets and enclosures, commercial vehicles, domestic appliances, and heating and ventilating. With its ability to fasten metal to metal and metal to plastic, the structural rivet provides an effective solution for various assembly needs.

Diameter sizes: 4.8mm, 6.4mm

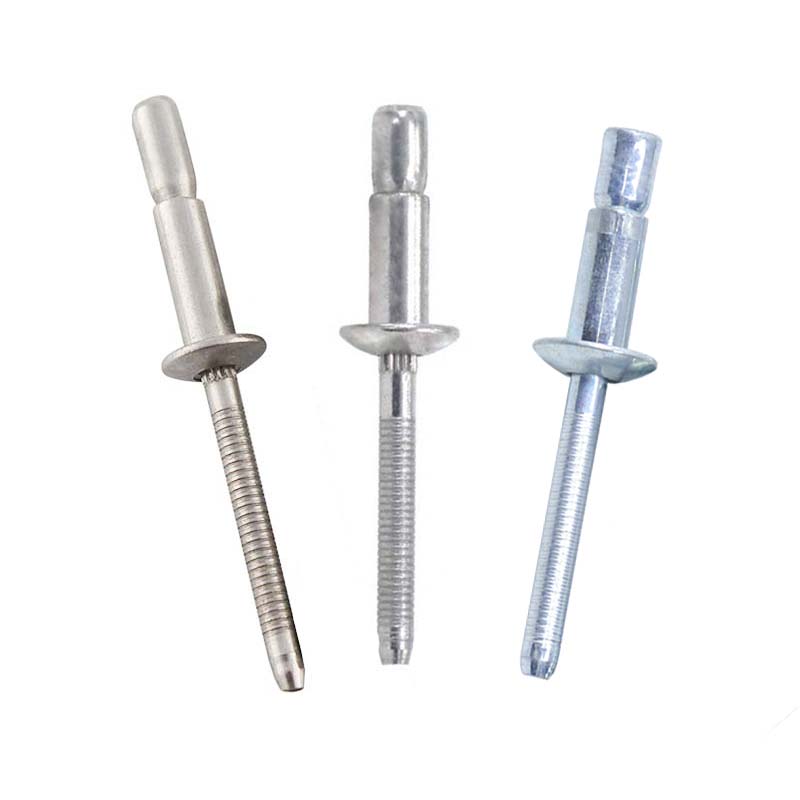

Available materials: Aluminum, Steel, Stainless Steel

Material (Body/Mandrel)

Aluminum/ Aluminum

Steel/ Steel

Stainless steel/ Stainless steel









Head Style

Dome Head Rivets

Countersunk Head Rivets



Advantages

Mandrel mechanically locked into body.

Multi-grip capability.

High shear and tensile strength.

Excellent hole fill via radially expanded body.

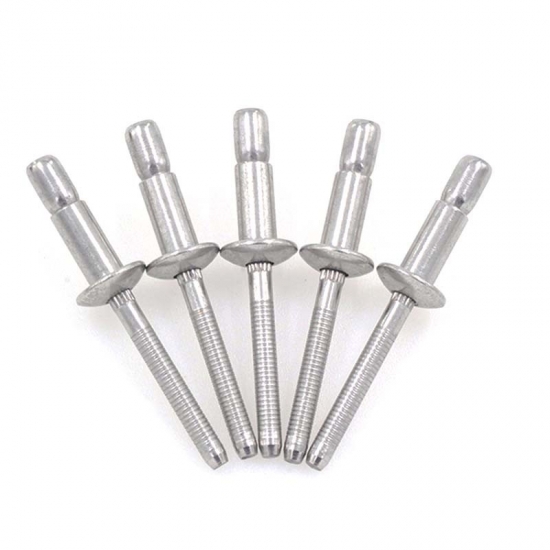

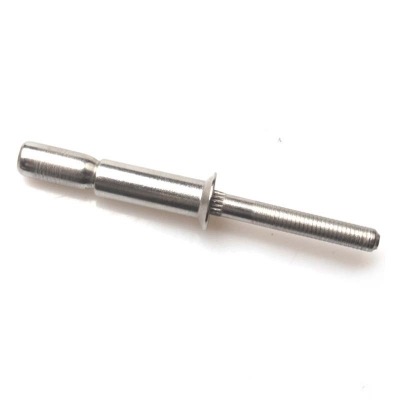

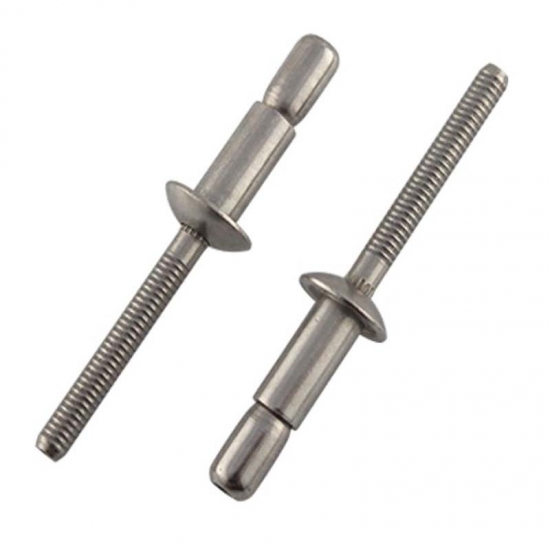

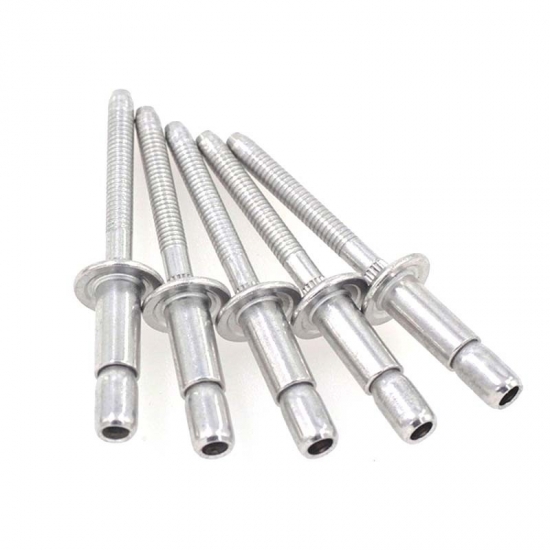

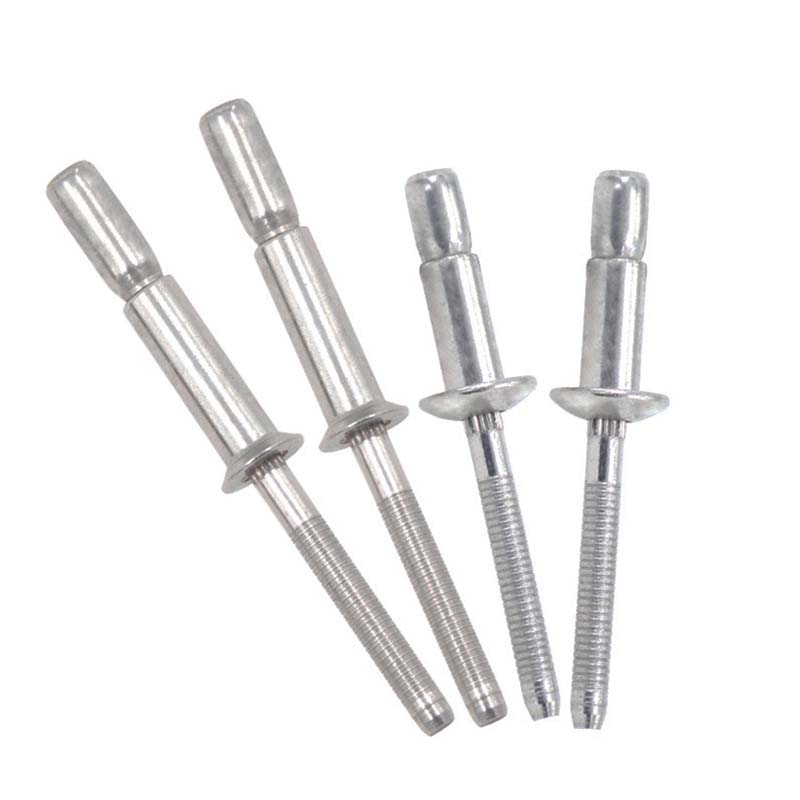

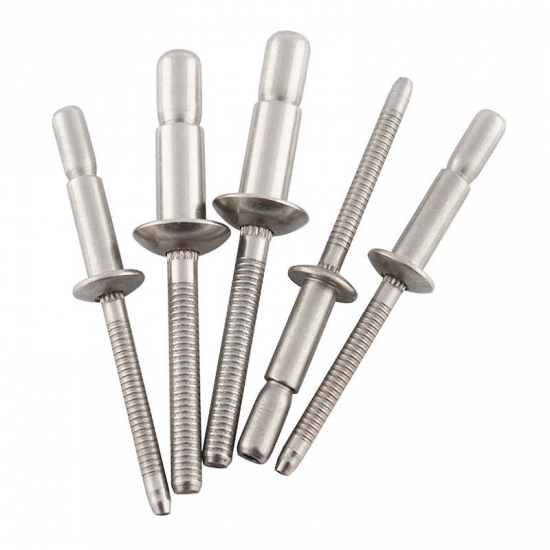

SS/SS Dome Head Inner Lock Structural Blind Rivets

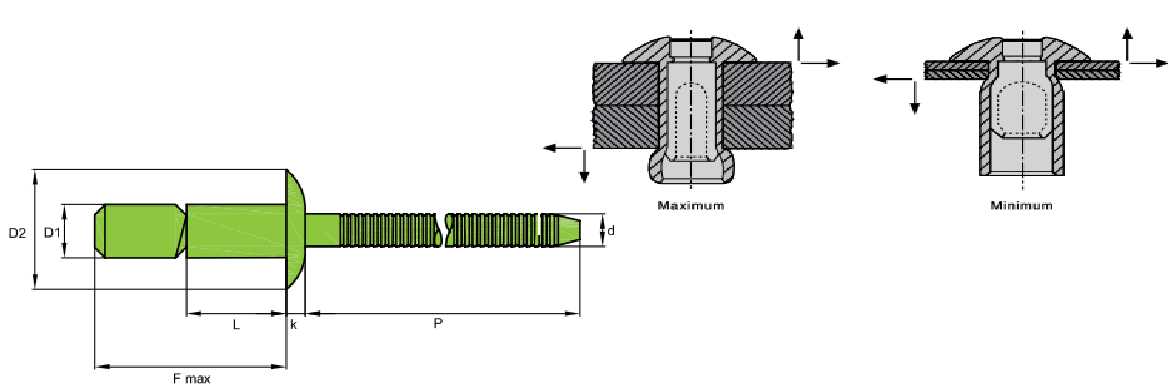

RIVET DIAMETER /mm	RIVET LENGTH /mm		GRIP RANGE /mm	HEAD DIAMETER /mm	HEAD HEIGHT /mm	MANDREL DIAMETER /mm	MANDREL LENGTH /mm	HOLE SIZE /mm	SHEAR /N	TENSILE /N
D1	L	F		D2	k	d	p	DRILL
	+1/-0	MAX.			MAX.	MAX.	MIN.		MIN.	MIN.
4.8 +0.08 -0.15	10.5	18.5	1.6-6.9	9.0-10.0	2.2	3.10	27.00	4.9-5.1	5700 N	4400 N
	14.5	25.0	1.6-11.0
6.4 +0.08 -0.15	14.5	25.5	2.0-9.5	12.2-13.2	3.0	4.10	28.00	6.6-6.9	10500 N	8200 N
	20.5	36.0	2.0-15.9

Production Process

Step 1

Blind rivet machine---making the rivet body

Step 2

Nail making machine---making the mandrel

Step 3

Assembly machine--finish the assembly of rivet body and the mandrel

Package

Regular package is small box+ carton+ pallet, or bulk in carton, each carton weights 20-25kgs.

Borie Fasteners can also provide custom packaging service, such as poly bag or plastic bag with client's logo and information.

Application

Blind rivets can be used just about anywhere if they are properly installed. Most of them are used in Facade, Solar panel bracket, Automoblie, Elevator, Air conditioner, Cabinet, Catering equipment, Aluminum windows&doors, etc..
