China Factory Flat Head Semi Hex Closed End Rivet Nuts

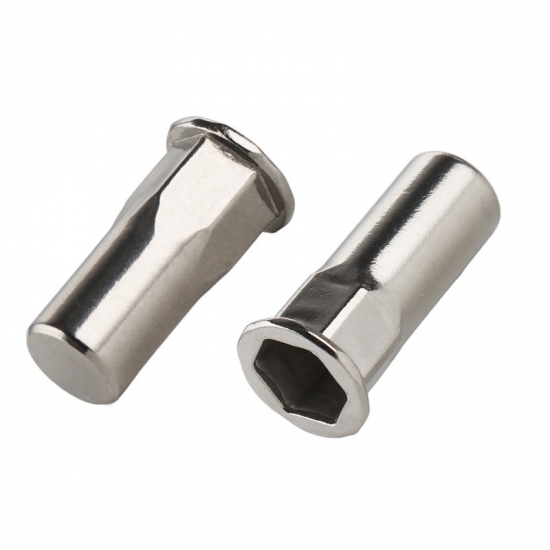

flat head hex rivet nuts

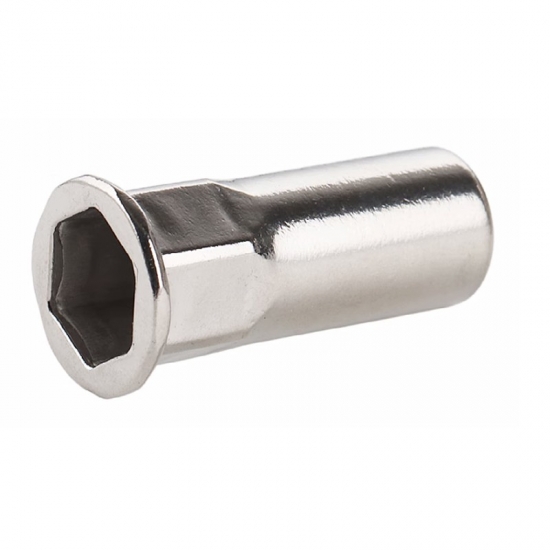

flat head hex rivet nuts

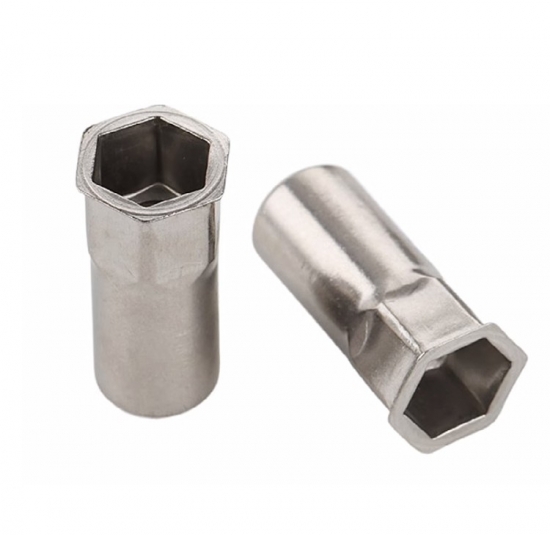

flat head hex rivet nuts

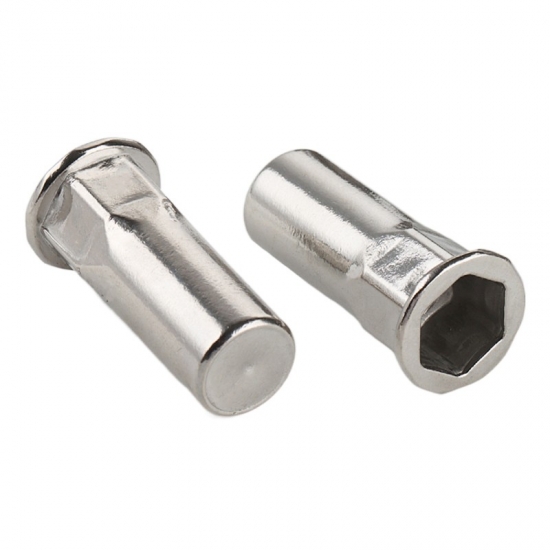

flat head hex rivet nuts

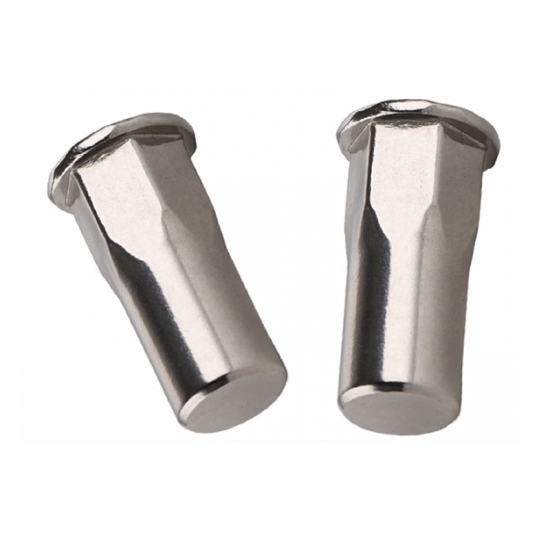

flat head hex rivet nuts

China Factory Flat Head Semi Hex Closed End Rivet Nuts

The hexagonal body prevents this from turning, making this type of rivet nut widely preferred for repair and servicing work.

  • Payment:

    TT , Credit 30/60/90 days
  • Product Origin:

    Wuxi, China( near to Port Shanghai)
  • Color:

    Plain, Zinc, Black, Dacromet, Geomet, etc
  • Min order:

    1000pcs
  • Lead Time:

    7-35days

China Factory Flat Head Semi Hex Closed End Rivet Nuts



Half hex rivet nut features that they resist turning. The hexagonal shaft prevents this turning, making this type of rivet nut widely preferred for repair and servicing work. Close end provides a 100% watertight connection.



A rivet nut, also referred to as a blind rivet, threaded insert, or rivnut, is a cohesive, tubular insert incorporating threading and a counterbore, enabling it to be securely anchored from one side, akin to a blind bolt. The rivet nut is installed blindly: it installs from the front side and no access to the backside is needed. The rivet nut install tool pulls the rivet nut internal threads up to create a secure bulge on the backside of the parent application.



Rivet Nuts Are Used In A Variety Of Industries:

  • Automotive
  • Aerospace and Defense
  • Medical
  • General Industrial
  • Solar
  • Agricultural Equipment
  • HVAC
  • Electronics
  • Railways
  • Construction Equipment
  • Heavy Truck
  • Wind Power



Advantages of Rivet Nuts

  • Provide a strong thread in thin materials
  • Perfect for effortless disassembling and reassembling of goods,
  • install in a diverse range of materials: steel, plastic, fiberglass, and beyond,
  • Once installed, additional threaded components can be attached
  • Preserves the integrity of pre-painted material during installation,
  • An exemplary alternative to weld nut,
  • Enhances efficiency with a straightforward installation,
  • Does not compromise the structural integrity of the underlying material,



Rivet Nut Head Type

Rivet nuts come in many shapes and sizes: open-end, closed-end (good for water control), round body, hex body, reduced head etc.

  • Ribbed Rivet Nut
  • Flat Head Rivet Nut
  • Reduced Head Rivet Nut
  • Countersunk Head Rivet Nut
  • Reduced Hex Head Rivet Nut
  • Large Flange Head Rivet Nut

Rivet Nut head type



Rivet Nut Body Type

  • Round Body Rivet Nut
  • Knurled Body Rivet Nut
  • Full Hex Body Rivet Nut
  • Semi-Hex Body Rivet Nut
  • Slotted Body Rivet Nut
  • Square Body Rivet Nut

Rivet nut Body type



Common Material Used For Solid Rivet

  • Steel ((finished in Zinc Plate)
  • Stainless steel 304 & SS316 (plain finish)
  • Aluminum (plain finish)



Selecting A Blind Rivet Nut

  • Thread size: rivet nuts range from M3 to M12 thread sizes dependent upon the rivet nut.
  • Grip range: The blind rivet nut should be selected to ensure that the thicknesses of the parent material(s) falls within the grip range.
  • Hole size: This is specified on the relevant technical data page for the rivet nut. Allowance for coating the parent material should be made to avoid an undersized hole.
  • Special features: Additional features such as low profile, large flange, closed end and countersunk are available within the standard range of products.
  • Torque-to-turn: Resistance is dependent upon the body shape and increases in the series: round, splined, hexagonal and square
  • Corrosion resistance : The selection of the material type and coating of the rivet nut should be made on the basis of the corrosion resistance required.



flat head hex rivet nut

Thread Sizes: M4 – M10

Material: Aluminium, steel, stainless steel A2 & A4

Head Styles: Flat, countersunk,large flange, reduced

Body: Round with and without splines, Half Hex, Full Hex

Option:Closed end, Open end

Hole Size: Metric, Inch

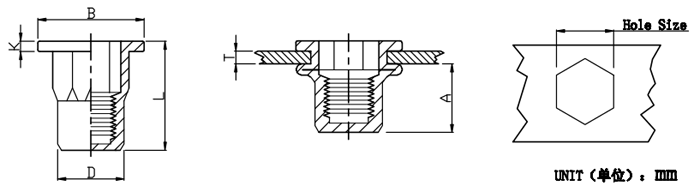

Thread T(GRIP RANGE) A Hole Size D B K L
Min Max Ref 0.1 0.07 ±0.3 ±0.15(*±0.1) ±0.3(*±0.35)
0 -0.1
M4*0.7 0.5-2.0 11.5 6 5.9 9 1.0* 16
M5*0.8 0.5-2.5 13.5 7 6.9 10 1 18.5
M6*1.0 0.5-3.0 17 9 8.9 12.7 1.5 23
M8*1.25 1.0-3.5 18.2 11 10.9 16 1.5 25.0*
M10*1.5 1.0-4.0 25 13 12.9 19 1.7 33.0*
