Borie Fasteners is a professional bulbing type blind rivets manufacturer and supplier, we are committed to providing clients with superior fastening solutions. bulbing type blind rivets customized available in material, length, diameter, surface treatment.
Standard:
Tri Folding RivetsDiameter:
4.0mm/4.8mm/6.4mmHead Type:
Dome Head/Large FlangeMaterial:
Aluminum/Stainless SteelCertificate:
ISO9001/IATF16949Finish:

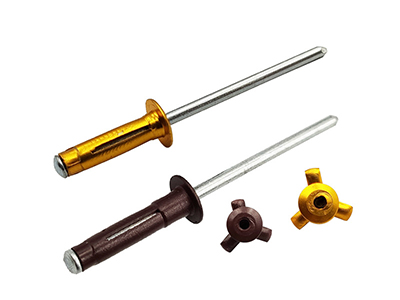

zinc plated/paintedFactory:
We are a factory with 19 years of R&D experienceMOQ:

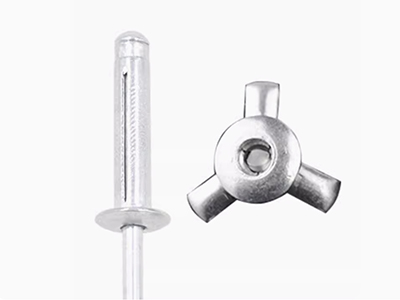

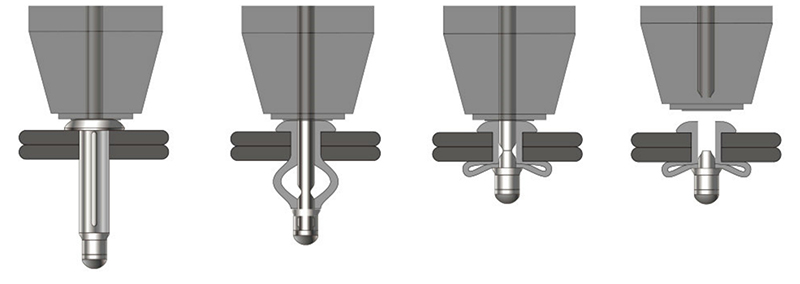

50000pcsTri-Fold rivet is an all-aluminium slotted body rivet which makes it suitable for lightweight applications, form three large folding legs, which are distributed over a larger area, dispersing the load on the riveting surface.
Tri-Fold rivets are also known as Bulbex®, Tri-Folding, and Bulb-Lite® rivets.
Full stainless steel tri-fold blind rivet is customized according to our clients' request. Stainless steel provides high strength and good anti-corrosion. Meanwhile, not likely aluminum tri-fold rivets, the special structure make three wings not upwarp, so that the clamping force is stronger.

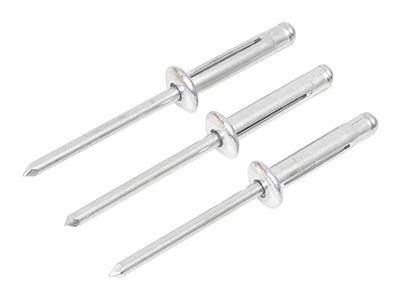

Dome Head Rivets

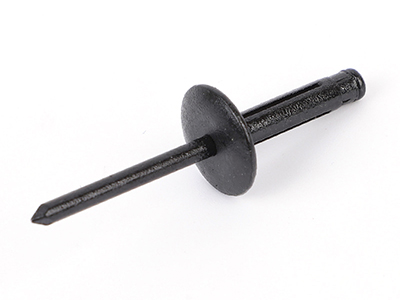

Large Flange Head Rivets
RIVET DIAMETER /mm |
RIVET LENGTH /mm |
GRIP RANGE /mm |
HEAD DIAMETER /mm |
HEAD HEIGHT /mm |
MANDREL DIAMETER /mm |
MANDREL LENGTH /mm |
HOLE SIZE /mm |
SHEAR /N |
TENSILE /N |
D1 | L | ![]() |
D2 | k | d | p | DRILL | ![]() |
![]() |
+1/-0 | MIN.-MAX. | ±0.2 | MAX. | MIN. | MIN. | MIN. | |||
3.2 +0.08 -0.15 |
14.0 | 1.0-4.0 | 5.8-6.4 | 1.2 | 1.80 | 27.00 | 3.3-3.5 | 530 N | 630 N |
17.0 | 3.0-7.0 | ||||||||
20.0 | 5.0-10.0 | ||||||||
4.0 +0.08 -0.15 |
14.0 | 1.0-3.0 | 7.8-8.3 | 1.7 | 2.30 | 27.00 | 4.2-4.4 | 600 N | 700 N |
16.0 | 1.0-5.0 | ||||||||
18.8 | 1.5-7.5 | ||||||||
20.8 | 1.5-9.5 | ||||||||
25.0 | 2.0-13.0 | ||||||||
20.0 | 1.5-9.5 | 11.8-12.2 | 1.6 | 2.30 | 27.00 | 4.2-4.4 | 600 N | 700 N | |
4.8 +0.08 -0.15 |
16.0 | 1.0-4.0 | 9.7-10.3 | 2.0 | 2.80 | 28.00 | 4.9-5.1 | 800 N | 1100 N |
18.0 | 1.0-6.0 | ||||||||
21.0 | 1.0-9.0 | ||||||||
25.0 | 1.5-12.5 | ||||||||
30.0 | 5.0-15.0 | ||||||||
21.0 | 1.0-8.5 | 15.8-16.2 | 2.0 | 2.80 | 28.00 | 4.9-5.1 | 800 N | 1100 N | |
25.0 | 1.0-12.5 | ||||||||
6.4 +0.08 -0.15 |
16.0 | 1.0-4.0 | 13.7-14.3 | 2.7 | 3.8 | 30.00 | 6.5-6.7 | 2000 N | 2600 N |
20.0 | 1.0-8.5 | ||||||||
23.0 | 1.5-10.5 |
Production Process
Step 1
Blind rivet machine---making the rivet body
Step 2
Nail making machine---making the mandrel
Step 3
Assembly machine--finish the assembly of rivet body and the mandrel
Package
Provide OEM service.
Regular package is small box+ carton+ pallet, or bulk in carton, each carton weights 20-25kgs.
Borie Fasteners can also provide custom packaging service, such as poly bag or plastic bag with client's logo and information.
Application
It is widely used in automobiles, dashboards, golf bags, plastics, gift factories. It is easy to operate, beautiful in appearance, and can be riveted on one side.
