Full hex design features a larger body diameter that results in increased thread strength and torque capability.
Payment:
TT , Credit 30/60/90 daysProduct Origin:
Wuxi, China( near to Port Shanghai)Color:
Plain, Zinc, Black, Dacromet, Geomet, etcMin order:
1000pcsLead Time:

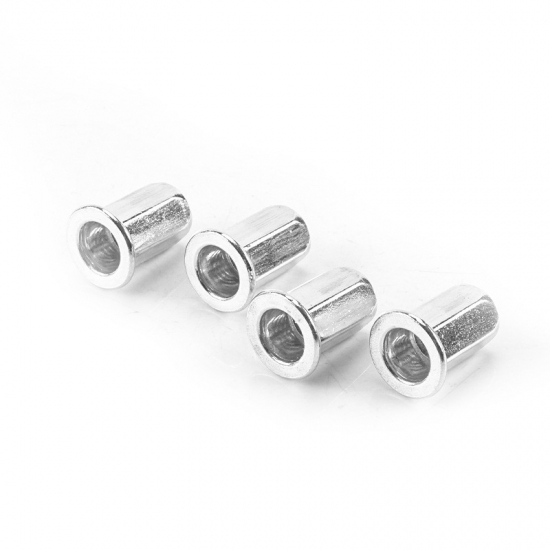

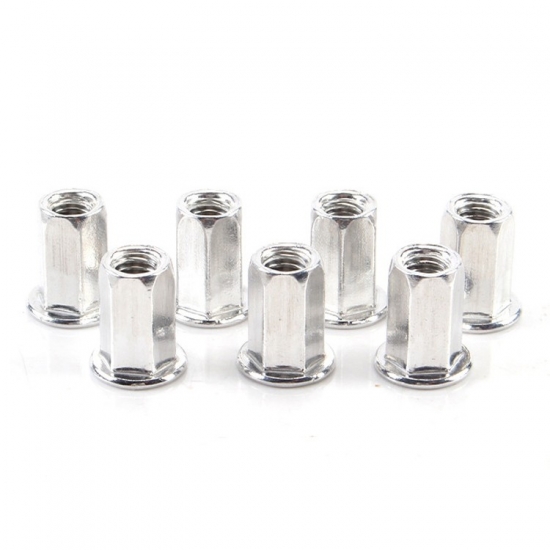

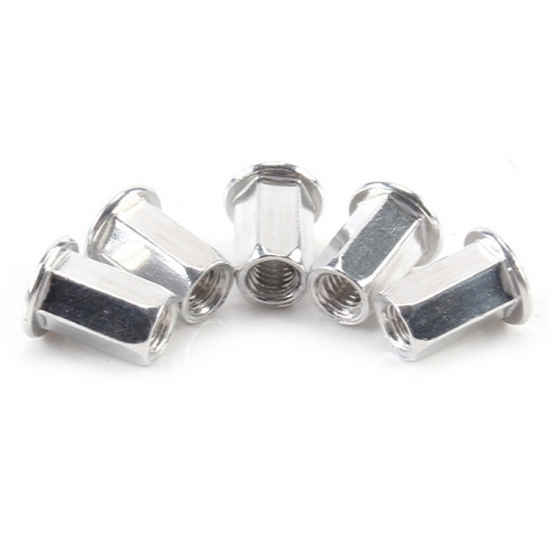

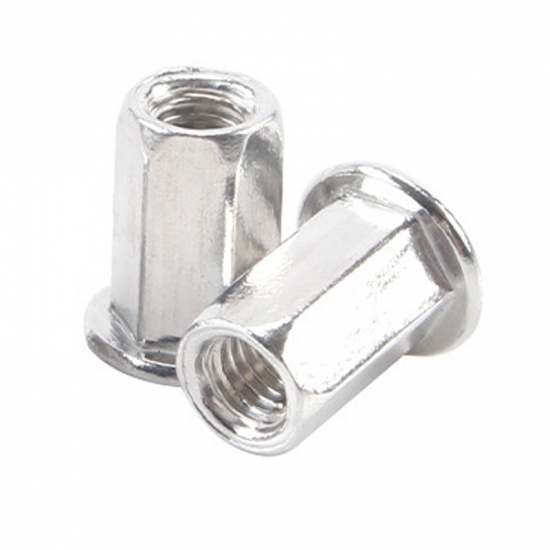

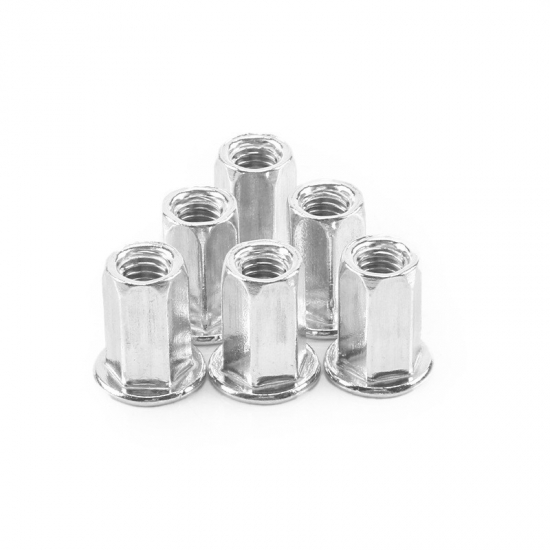

7-35daysHigh Quality Open End Full Hex Body Rivet Nuts
Full hex design features a larger body diameter that results in increased thread strength and torque capability. The hex body design prevents it turning, which makes this type of rivet nut widely used in repair or servicing work.
Rivet Nuts Are Used In A Variety Of Industries:
|
|
Rivet Nut Head Type
Rivet nuts come in many shapes and sizes: open-end, closed-end (good for water control), round body, hex body, reduced head etc.
Rivet Nut Body Type
Common Material Used For Solid Rivet
Selecting A Blind Rivet Nut
Thread Sizes: M4 – M10
Material: Aluminium, steel, stainless steel A2 & A4
Head Styles: Flat, countersunk,large flange, reduced
Body: Round with and without splines, Half Hex, Full Hex
Option:Closed end, Open end
Hole Size: Metric, Inch

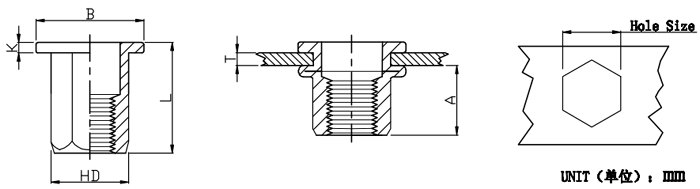

Thread | T(GRIP RANGE) | A | Hole Size | D | B | K | L | ||
Min | Max | Ref | 0.1 | 0.07 | |||||
0 | -0.1 | ||||||||
M4*0.7 | 0.5-2.0 | 6.5 | 6 | 5.9 | 9.0±0.3 | 0.8±0.1 | 11.0±0.25 | ||
M5*0.8 | 0.5-2.5 | 8 | 7 | 6.9 | 10.0±0.3 | 1.0±0.15 | 14.0±0.25 | ||
M6*1.0 | 0.5-3.0 | 8.5 | 9 | 8.9 | 12.7±0.3 | 1.35±0.15 | 15 | 0.5 | |
0 | |||||||||
M8*1.25 | 1.0-3.5 | 10.5 | 11 | 10.9 | 16.0±0.3 | 1.5±0.15 | 18.0±0.3 | ||
M10*1.5 | 1.0-3.5 | 12.5 | 13 | 12.9 | 18.0±0.3 | 1.7±0.15 | 21.0±0.3 | ||
M12*1.75 | 1.0-4.0 | 14 | 15 | 14.9 | 20.0±0.3 | 1.7±0.15 | 23.0±0.35 | ||
M10*1.5 | 1.0-3.5 | 13.5 | 12 | 11.9 | 18.0±0.3 | 1.7±0.15 | 21.0±0.3 | ||
M12*1.75 | 2.0-5.0 | 16.5 | 16 | 15.9 | 23.0±0.3 | 2.0±0.15 | 27.0±0.35 |
