Round body rivet nut is an ideal choice due to their easy installation, reliability, and low cost when it comes to adding load-bearing threads to fragile or thin materials.
Payment:
TT , Credit 30/60/90 daysProduct Origin:
Wuxi, China( near to Port Shanghai)Color:
Plain, Zinc plated, Black, Dacromet, etcMin order:
1000pcsLead Time:

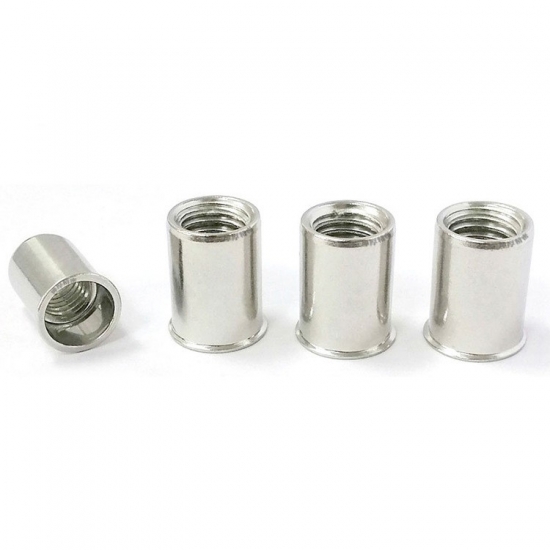

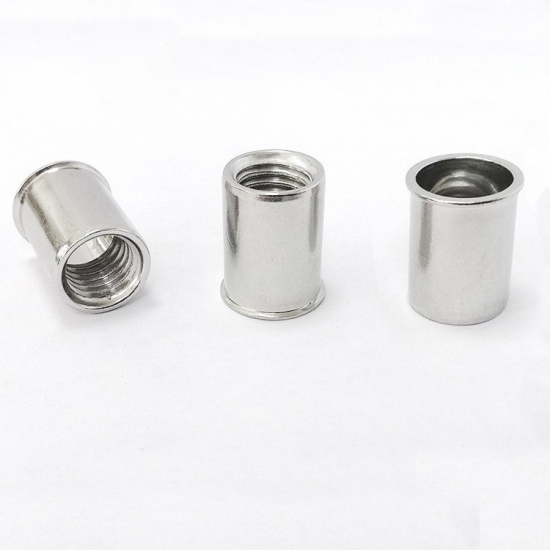

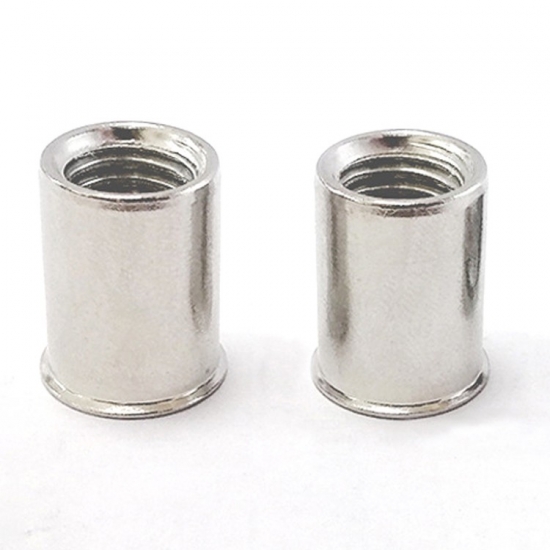

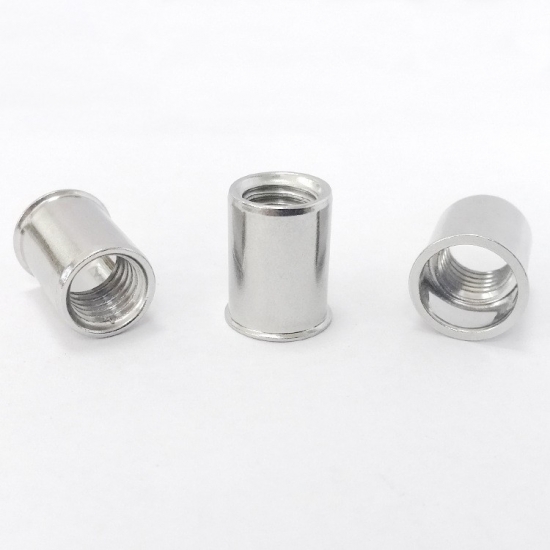

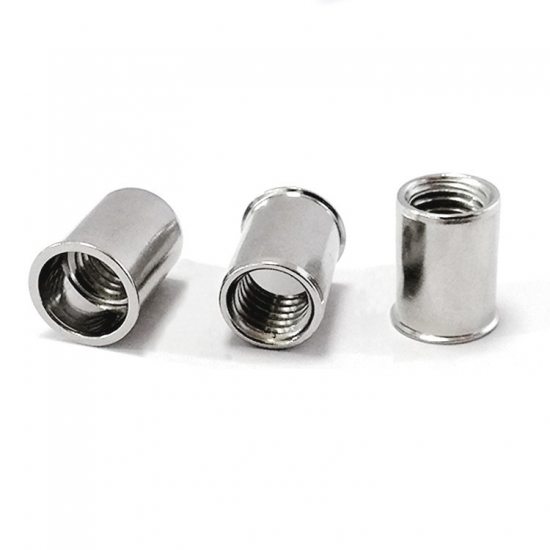

7-35daysChina Supplier Open End Small Head Round Rivet Nuts
Round body rivet nut is an ideal choice due to their easy installation, reliability, and low cost when it comes to adding load-bearing threads to fragile or thin materials. These nuts can effortlessly create load-bearing threads in sheet materials as thin as 0.50mm and have one-sided, blind insert capabilities.
They are offered in a range of headforms such as large flange, low profile, and countersunk, and it can be produced with different materials like steel, stainless steel, or aluminum alloy. Additionally, round body rivet nuts can be installed in pre-coated applications without any surface damage.
Rivet Nuts Are Used In A Variety Of Industries:
|
|
Rivet Nut Head Type
Rivet nuts come in many shapes and sizes: open-end, closed-end (good for water control), round body, hex body, reduced head etc.
Rivet Nut Body Type
Common Material Used For Solid Rivet
Selecting A Blind Rivet Nut
Thread Sizes: M4 – M10
Material: Aluminium, steel, stainless steel A2 & A4
Head Styles: Flat, countersunk,large flange, reduced
Body: Round with and without splines, Half Hex, Full Hex
Option:Closed end, Open end
Hole Size: Metric, Inch

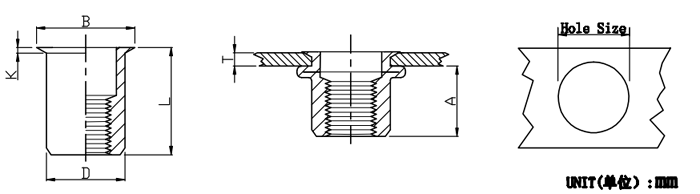

Thread | T(GRIP RANGE) | A | Hole Size | D | B | K | L | ||
Min | Max | Ref | 0.1 | 0.07 | |||||
0 | -0.1 | ||||||||
M4*0.7 | 0.5-2.0 | 6.5 | 6 | 5.9 | 7 | 0.2 | 0.5±0.1 | 10.5±0.25 | |
-0.1 | |||||||||
M5*0.8 | 0.5-2.0 | 7 | 7 | 6.9 | 8 | 0.25 | 0.5±0.1 | 11.5±0.25 | |
-0.1 | |||||||||
M6*1.0 | 0.5-2.5 | 8.5 | 9 | 8.9 | 10 | 0.25 | 0.6±0.15 | 14.0±0.3 | |
-0.1 | |||||||||
M8*1.25 | 0.5-3.0 | 10.5 | 11 | 10.9 | 12 | 0.25 | 0.65±0.15 | 16.5±0.3 | |
-0.1 | |||||||||
M10*1.5 | 1.0-3.5 | 11.5 | 13 | 12.9 | 14 | 0.35 | 0.7±0.15 | 17.7±0.3 | |
