Features strong fastening capabilities with a round head design, providing a clean and polished appearance. Perfect for applications requiring secure and permanent connections, such as aerospace, automotive, and construction industries.
Payment:
TT , Credit 30/60/90 daysProduct Origin:
Wuxi, China( near to Port Shanghai)Color:
Plain, Sliver, Copper, BrassMin order:
1000pcsLead Time:

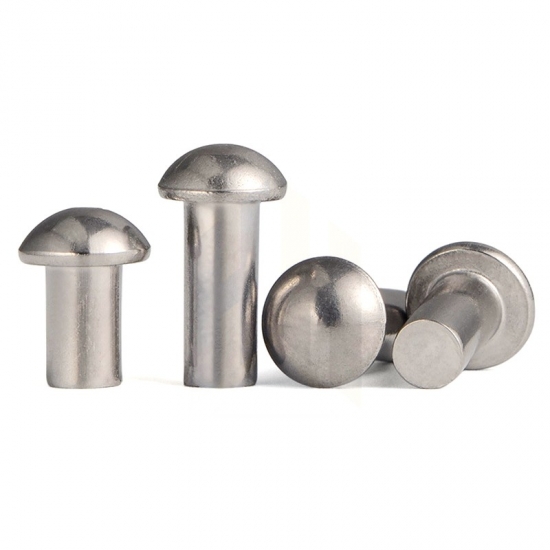

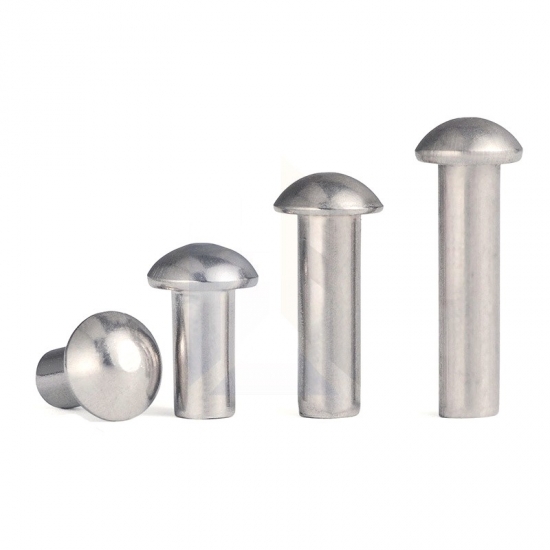

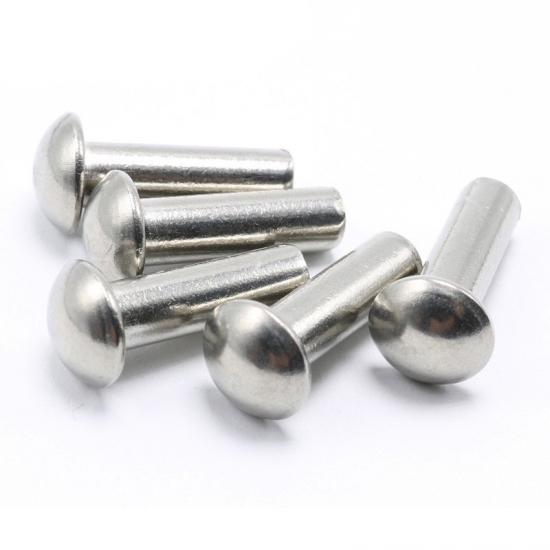

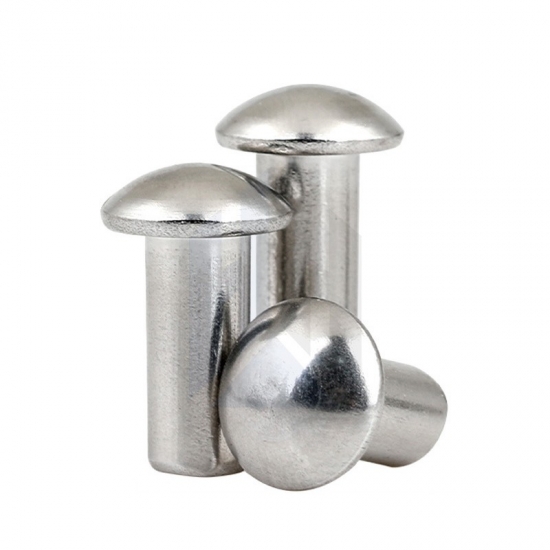

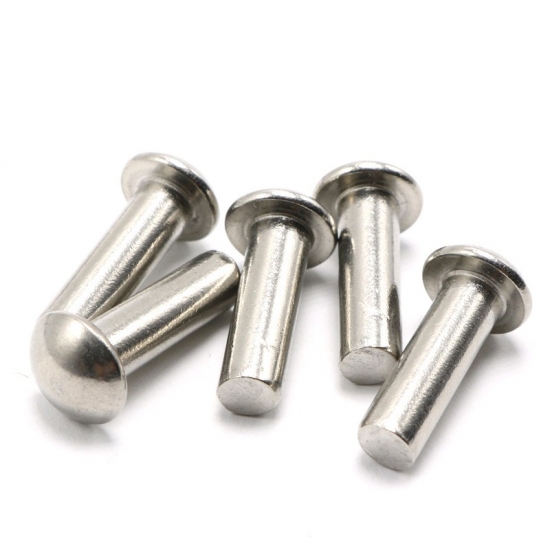

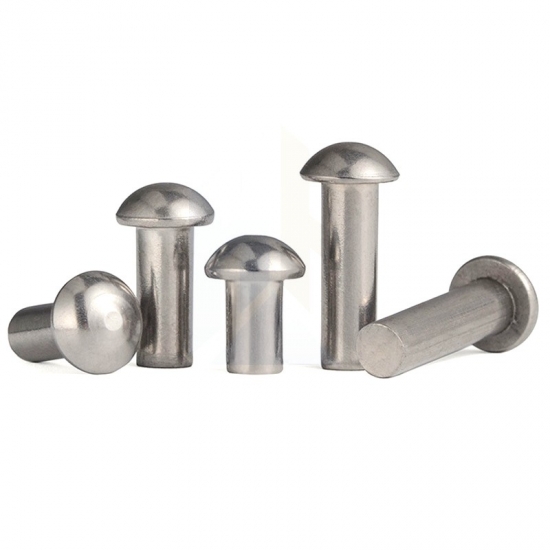

7-35daysChina Factory Stainless Steel Round Head Solid Rivets
Characterized by their simplicity, dependability, and age-old heritage, solid rivets serve as one of the most straightforward forms of fasteners. Consisting of a solid shaft featuring a head, these devices are firmly held in place by deforming the unheaded side with a hammer or rivet gun. In various applications where ensuring reliability and safety are key factors, solid rivets are widely preferred.
Solid Rivet Head Type
Borie manufactures solid rivets with a variety of head styles in addition to flat heads.
Common Material Used for Solid Rivet
To secure the rivet, the terminal end of the shank undergoes impact, pressing, or spinning procedures subsequent to the insertion of the rivet into a workpiece. This process results in the formation (upsetting) of a solid head, constituting the clinched head of the rivet. During impact or press clinching, the force necessary for shaping the clinched head leads to the expansion of the entire shank, effectively filling the hole in the workpiece. The shank's enlargement is most pronounced at the clinched head end of the rivet. In contrast, spun, orbital, or radial rivet clinches demand less force to form, compared to impact or pressed rivets. Consequently, they lack the same shank swelling capability. For most solid rivet applications, pre-punched or drilled holes in the workpiece are requisite
Solid Rivet Benefits:
d2 - head diameter
k - head height
l - rivet length
d1 - the nominal diameter of the rivet
e - Location nominal diameter from the bottom of the head
d3 - minimum diameter of the shaft
Nominal Diameter | d | dk | d1 | a | k | r | R | |||
max | min | max | min | min | max | max | min | max | ≈ | |
Φ 1 | 1.05 | 0.95 | 1.8 | 1.55 | 0.93 | 0.5 | 0.725 | 0.475 | 0.2 | 1 |
Φ 1.2 | 1.25 | 1.15 | 2.1 | 1.85 | 1.13 | 0.6 | 0.825 | 0.575 | 0.2 | 1.2 |
Φ 1.4 | 1.45 | 1.35 | 2.4 | 2.15 | 1.33 | 0.7 | 0.925 | 0.675 | 0.2 | 1.4 |
Φ 1.6 | 1.65 | 1.55 | 2.8 | 2.55 | 1.52 | 0.8 | 1.125 | 0.875 | 0.2 | 1.6 |
Φ 2 | 2.1 | 1.9 | 3.5 | 3.2 | 1.87 | 1 | 1.325 | 1.075 | 0.2 | 1.9 |
Φ 2.5 | 2.6 | 2.4 | 4.4 | 4.1 | 2.37 | 1.25 | 1.625 | 1.375 | 0.2 | 2.4 |
Φ 3 | 3.1 | 2.9 | 5.2 | 4.9 | 2.87 | 1.5 | 1.925 | 1.675 | 0.2 | 2.8 |
Φ 3.5 | 3.6 | 3.4 | 6.2 | 5.62 | 3.37 | 1.75 | 2.225 | 1.975 | 0.3 | 3.4 |
Φ 4 | 4.1 | 3.9 | 7 | 6.42 | 3.87 | 2 | 2.525 | 2.275 | 0.3 | 3.8 |
Φ 5 | 5.15 | 4.85 | 8.8 | 8.22 | 4.82 | 2.5 | 3.125 | 2.875 | 0.4 | 4.6 |
Φ 6 | 6.15 | 5.85 | 10.5 | 9.8 | 5.82 | 3 | 3.75 | 3.45 | 0.4 | 5.7 |
Φ 7 | 7.15 | 6.85 | 12.2 | 11.5 | 6.82 | 3.5 | 4.35 | 4.05 | 0.4 | 6.6 |
Φ 8 | 8.15 | 7.85 | 14 | 13.3 | 7.76 | 4 | 4.95 | 4.65 | 0.4 | 7.5 |
