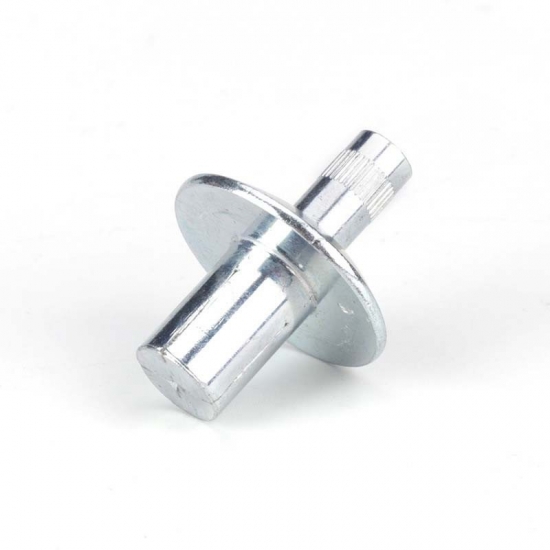

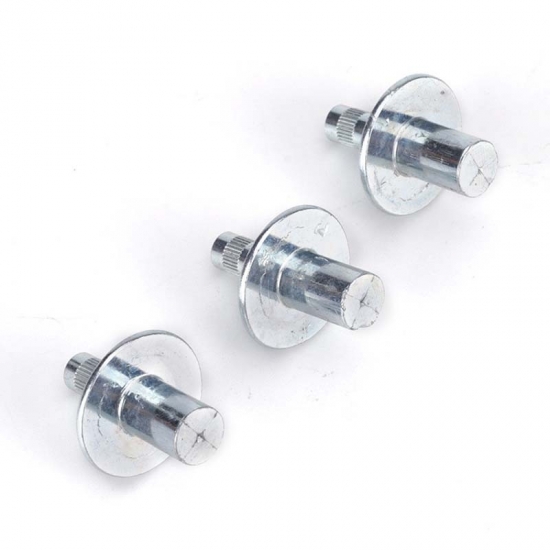

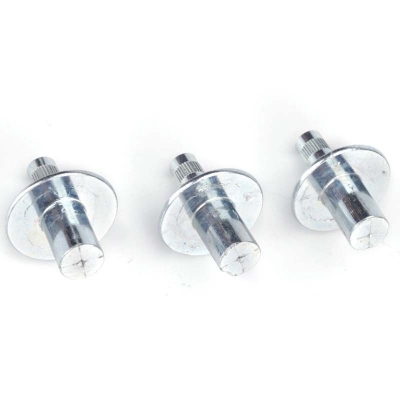

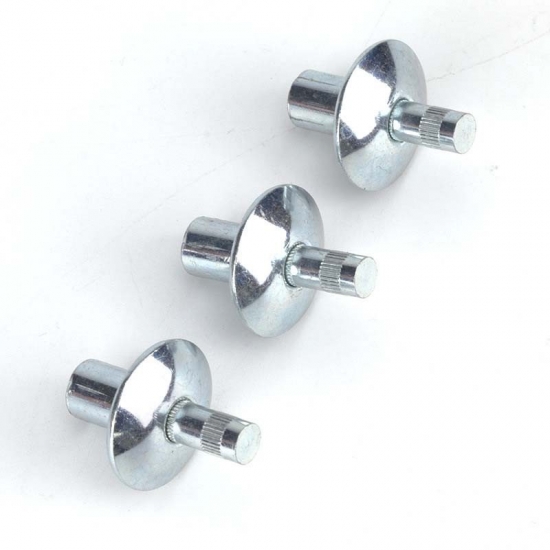

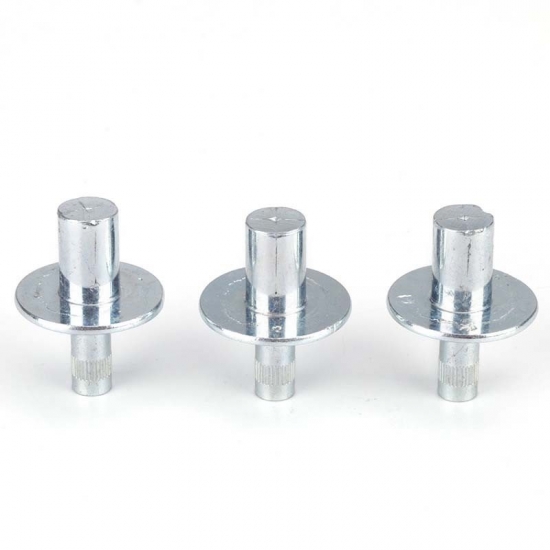

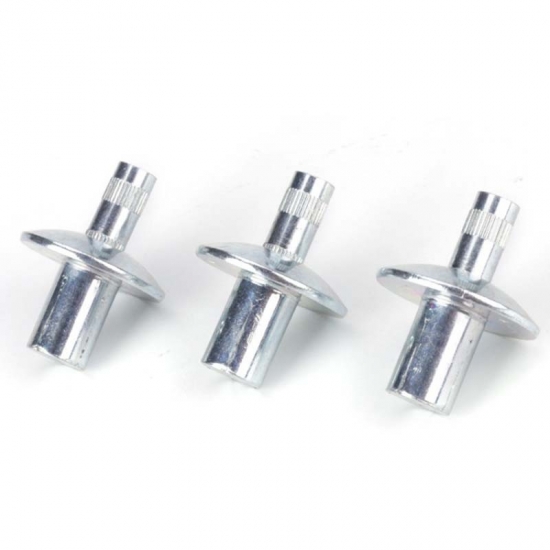

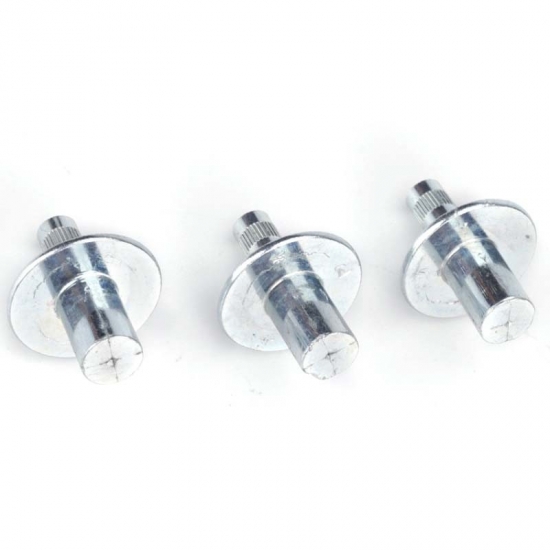

Manufacturer All Steel Galvanized Brazier Head Drive Rivets

Steel Brazier Drive Rivets
Steel Brazier Drive Rivets
Steel Brazier Drive Rivets
Steel Brazier Drive Rivets
Steel Brazier Drive Rivets
Steel Brazier Drive Rivets

Manufacturer All Steel Galvanized Brazier Head Drive Rivets

Drive rivet is a very convenient new riveting fasteners, in a narrow space or in an environment where a rivet gun is not available or cannot be used, drive rivets can show its advantages. Using only a hammer to strike one side can make two or more conncetors join together.

  • Payment:

    T/T, Credit 30/60/90 days
  • Product Origin:

    Wuxi, China( near to Shanghai Port)
  • Color:

    Plain, Zinc plated
  • Min order:

    1000pcs
  • Lead Time:

    7-35 days

Manufacturer All Steel Galvanized Brazier Head Drive Rivets



Drive rivets are a type of blind rivet with a short pin that protrudes from the head. Once the drive rivet is inserted into a hole, the pin is driven in with a hammer or other implement to flare out the end of the rivet that is inside the hole. The rivet core locks on the inside, making it rust-resistant and durable.



Drive rivets are commonly used with wood, metal, plastic, and many others.



Diameter sizes: 3.2mm (1/8''), 4.0mm (5/32''), 4.8mm (3/16''), 6.4mm (1/4'')

Available materials: Aluminum, Steel



Head Style

  • Universal Head
  • 100°Countersunk head
  • Brazier head

Drive Rivets Head Types



Advantages

  • Quick and easy riveting with a hammer
  • Suitable for various materials
  • Cannot be reworked
  • Mandrel is locked in the body
  • Strong shear strength and vibration resistant
  • Blind – install from one side



How To Use A Drive Rivet

Drive Rivets Installation



Dimensions

Aluminum Brazier Drive Rivets

Diameter
D1
Head Diameter
D2
Head Height
k
L Grip Range
MIN. NOM. MAX.
3.2 (.125) 7.9 (.312) 1.6 (.062) 4.8 (.188) 2 (.078) 2.4 (.094) 2.8 (.109)
5.6 (.219) 2.8 (.109) 3.2 (.125) 3.6 (.141)
6.4 (.250) 3.6 (.141) 4 (.156) 4.4 (.172)
7.1 (.281) 4.4 (.172) 4.8 (.188) 5.2 (.203)
7.9 (.313) 5.2 (.203) 5.6 (.219) 6 (.234)
8.7 (.344) 6 (.234) 6.4 (.250) 6.8 (.266)
9.5 (.375) 6.8 (.266) 7.1 (.281) 7.5 (.297)
11.9 (.469) 9.1 (.359) 9.5 (.375) 9.9 (.391)
12.7 (.500) 9.9 (.391) 10.3 (.406) 10.7 (.422)
13.5 (.531) 10.7 (.422) 11.1 (.438) 11.5 (.453)
4.8 (.188) 12 (.469) 2.4 (.094) 6.4 (.250) 1.2 (.047) 2.4 (.094) 3.6 (.141)
7.1 (.281) 2 (.078) 3.2 (.125) 4.4 (.172)
8.7 (.344) 3.6 (.141) 4.8 (.188) 6 (.234)
10.3 (.406) 5.2 (.203) 6.4 (.250) 7.5 (.297)
11.9 (.469) 6.8 (.266) 7.9 (.313) 9.1 (.359)
13.5 (.531) 8.3 (.328) 9.5 (.375) 10.7 (.422)
15.1 (.594) 9.9 (.391) 11.1 (.438) 12.3 (.484)
16.7 (.656) 11.5 (.453) 12.7 (.500) 13.9 (.547)
18.3 (.719) 13.1 (.516) 14.3 (.563) 15.5 (.609)
19.8 (.781) 14.7 (.578) 15.9 (.625) 17.1 (.672)
21.4 (.844) 16.3 (.641) 17.5 (.688) 18.7 (.734)
23 (.906) 17.9 (.703) 19.1 (.750) 20.3 (.797)
24.6 (.969) 19.4 (.766) 20.6 (.813) 21.8 (.859)
26.2 (1.031) 21 (.828) 22.2 (.875) 23.4 (.922)
27.8 (1.094) 22.6 (.891) 23.8 (.938) 25 (.984)
29.4 (1.156) 24.2 (.953) 25.4 (1.000) 26.6 (1.047)
6.4 (.250) 16 (.625) 3.2 (.125) 6.4 (.250) 1.2 (.047) 2.4 (.094) 3.6 (.141)
7.1 (.281) 2 (.078) 3.2 (.125) 4.4 (.172)
8.7 (.344) 3.6 (.141) 4.8 (.188) 6 (.234)
10.3 (.406) 5.2 (.203) 6.4 (.250) 7.5 (.297)
11.9 (.469) 6.8 (.266) 7.9 (.313) 9.1 (.359)
13.5 (.531) 8.3 (.328) 9.5 (.375) 10.7 (.422)
15.1 (.594) 9.9 (.391) 11.1 (.438) 12.3 (.484)
16.7 (.656) 11.5 (.453) 12.7 (.500) 13.9 (.547)
18.3 (.719) 13.1 (.516) 14.3 (.563) 15.5 (.609)
19.8 (.781) 14.7 (.578) 15.9 (.625) 17.1 (.672)
21.4 (.844) 16.3 (.641) 17.5 (.688) 18.7 (.734)
23 (.906) 17.9 (.703) 19.1 (.750) 20.3 (.797)
24.6 (.969) 19.4 (.766) 20.6 (.813) 21.8 (.859)
26.2 (1.031) 21 (.828) 22.2 (.875) 23.4 (.922)
27.8 (1.094) 22.6 (.891) 23.8 (.938) 25 (.984)
29.4 (1.156) 24.2 (.953) 25.4 (1.000) 26.6 (1.047)



Application

Drive Rivet Applications
