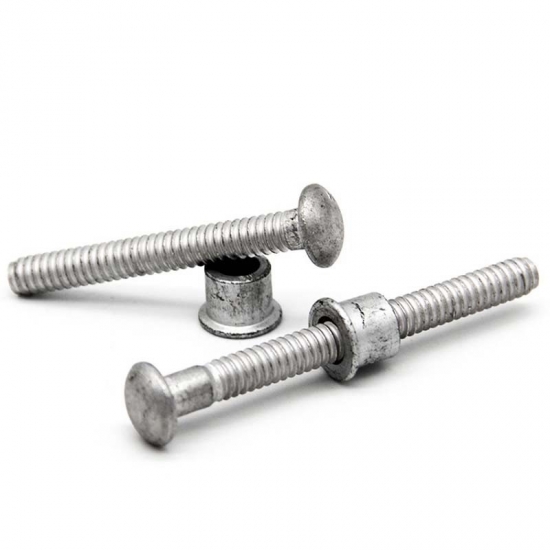

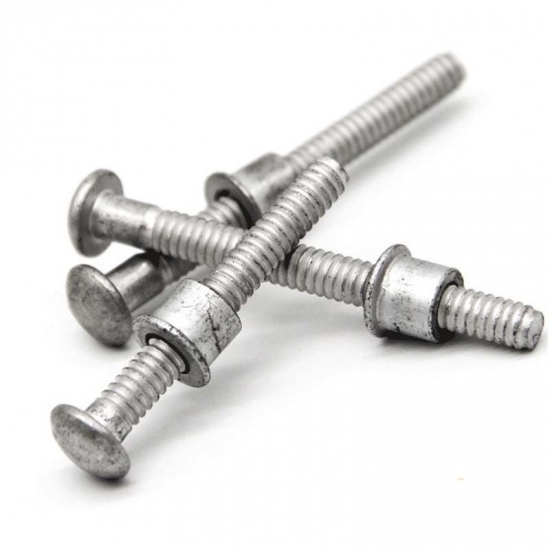

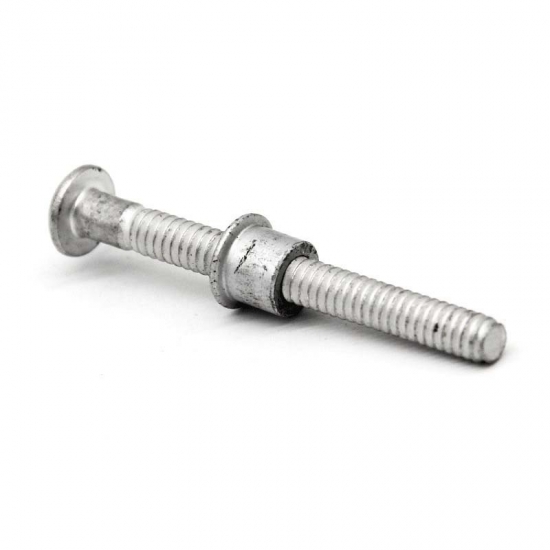

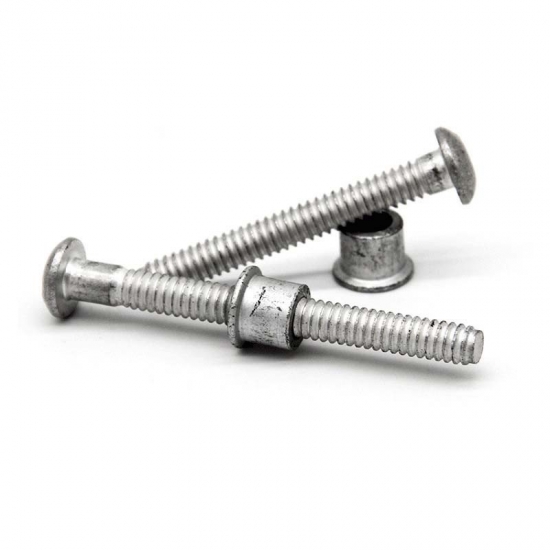

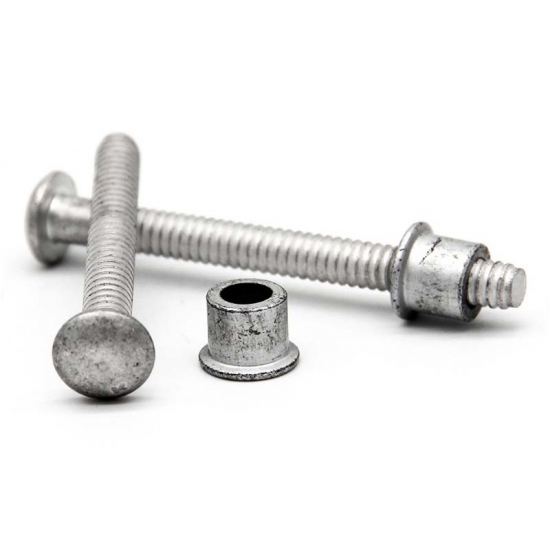

Factory Price HDG Steel Magna Grip Lock Bolts

Magna Grip Lock Bolt is the perfect fastener for applications that need a wide grip range and benefit from a flush bolt break to the collar.

  • Payment:

    TT , Credit 30/60/90 days
  • Product Origin:

    Wuxi, China( near to Port Shanghai)
  • Color:

    Plain, Zinc Plated, HDG, Dacromet
  • Min order:

    1000pcs
  • Lead Time:

    7-35days

Factory Price HDG Steel Magna Grip Lock Bolts



Magna Grip Lock Bolt is the perfect fastener for applications that need a wide grip range and benefit from a flush bolt break to the collar. It delivers the utmost vibration-resistance. Moreover, Magna Grip Bolt ensures reliable installation and consistently delivers high and uniform installed values.



Available Sizes: 3/16”, 1/4”, 5/16”, 3/8”

Materials: Steel, Aluminum



Advantages

  • Vibration resistance.
  • Consistently provides high, uniform installed values.
  • Wide grip range can replace up to other Huck Bolts



Head Types

  • Button Head MGPB
  • Truss Head MGPT
  • Stainless Encapsulated Head MGPTC
  • Broad Truss Head MGP30
  • 90° Flush Head MGP90
  • Rivet Head MGP98T



Magna Lock Rivets

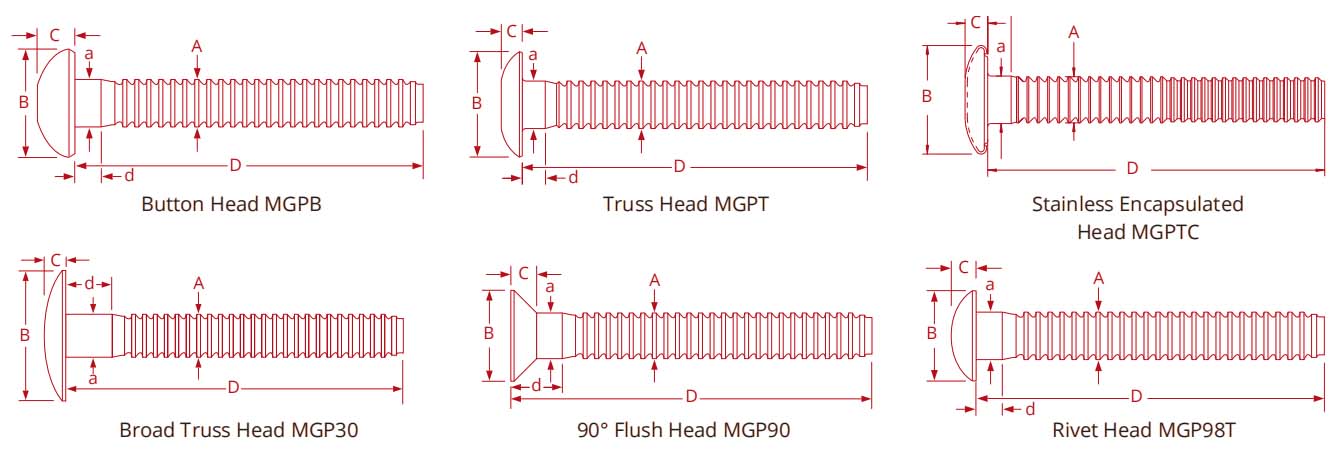

Bolt Dimensions
DIA. GRIP NUMBER GRIP RANGE HOLE SIZE MAX A
MAX
B C D a
MAX
d
REF
Button Head
6 (3/16") 10 .062-.625 0.219 0.186 .360-.390 .111-.127 1.771-1.831 0.192 0.087
20 .312-1.250 0.219 0.186 .360-.390 .111-.127 2.353-2.413 0.192 0.312
8 (1/4") 10 .125-.625 0.281 0.25 .480-.520 .135-.155 1.965-2.040 0.259 0.125
20 .312-1.250 0.281 0.25 .480-.520 .135-.155 2.560-2.635 0.259 0.312
10 (5/16") 12 .125-.750 0.359 0.312 .600-.650 .180-.205 2.340-2.390 0.322 0.1
22 .625-1.375 0.359 0.312 .600-.650 .180-.205 2.840-2.890 0.322 0.55
12 (3/8") 14 .188-.875 0.422 0.375 .720-.780 .220-.250 2.875-2.925 0.385 0.188
26 .812-1.625 0.422 0.375 .720-.780 .220-.250 3.500-3.550 0.385 0.81
Truss Head Dimensions
8 (1/4") 10 .125-.625 0.281 0.25 .530-.595 .115-.135 1.965-2.040 0.259 0.125
20 .312-1.250 0.281 0.25 .530-.595 .115-.135 2.560-2.635 0.259 0.312
10 (5/16") 12 .125-.750 0.359 0.312 .700-.795 .125-.175 2.340-2.390 0.322 0.1
22 .625-1.375 0.359 0.312 .700-.795 .125-.175 2.840-2.890 0.322 0.55
12 (3/8") 14 .188-.875 0.422 0.375 .830-.920 .150-.215 2.875-2.925 0.385 0.188
26 .812-1.625 0.422 0.375 .830-.920 .150-.215 3.500-3.550 0.385 0.81
Broad Truss Head Dimensions
8 (1/4") 10 .125-.625 0.281 0.25 .900-.970 .135-.165 1.965-2.040 0.259 0.125
24 .562-1.500 0.281 0.25 .900-.970 .135-.165 2.810-2.885 0.259 0.562
12 (3/8") 14 .188-.875 0.422 0.375 1.175-1.255 .185-.215 2.875-2.925 0.385 0.188
24 .688-1.500 0.422 0.375 1.175-1.255 .185-.215 3.375-3.425 0.385 0.68
90° Flush Head Dimensions
6 (3/16") 10 .062-.625 0.219 0.186 .325-.360 .075-.090 1.771-1.831 0.192 -
20 .312-1.250 0.219 0.186 .325-.360 .075-.090 2.353-2.413 0.192 0.312
8 (1/4") 10 .125-.625 0.281 0.25 .435-.475 .115-.130 1.965-2.040 0.259 -
20 .312-1.250 0.281 0.25 .435-.475 .115-.130 2.560-2.635 0.259 0.312
12 (3/8") 14 .250-.875 0.422 0.375 .650-.715 .175-.195 2.875-2.925 0.385 -
26 .812-1.625 0.422 0.375 .650-.715 .175-.195 3.500-3.550 0.385 0.81
Stainless Encapsulated Head Dimensions
8 (1/4") 10 .125-.625 0.281 0.25 0.62 0.165 1.965-2.040 0.259 0.125
20 .312-1.250 0.281 0.25 0.62 0.165 2.560-2.635 0.259 0.312
32 1.062-2.000 0.281 0.25 0.62 0.165 3.310-3.385 0.259 1.062
10 (5/16") 12 .125-.750 0.359 0.311 0.81 0.175 2.340-2.390 0.322 0.1
12 (3/8") 14 .188-.875 0.422 0.375 0.86 0.21 2.875-2.925 0.385 0.188
26 .812-1.625 0.422 0.375 0.86 0.21 3.500-3.550 0.385 0.81
32 1.188-2.000 0.422 0.375 0.86 0.21 3.875-3.925 0.385 1.185
Rivet Head Dimensions
6 (3/16") 10 .062-.625 0.219 0.186 .467-.488 .098-.110 1.771-1.831 0.192 0.087
20 .312-1.250 0.219 0.186 .467-.488 .098-.110 2.353-2.413 0.192 0.312




Magna Grip Huck Bolt

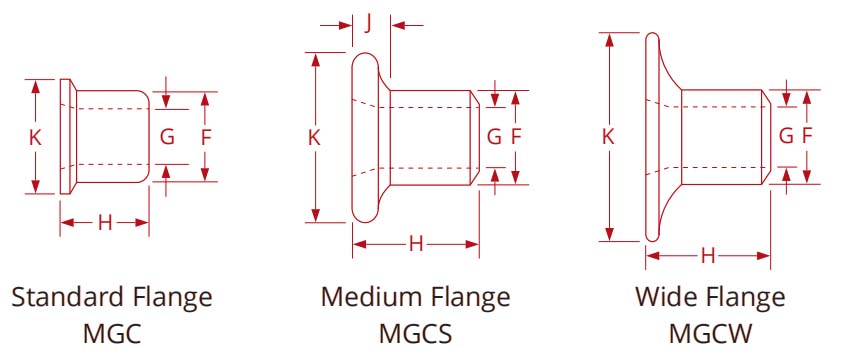

Collar Dimensions

COLLAR DIA. F G H K
MGC 3/16" .305-.315 .188-.204 .267-.283 .360-.390
1/4" .395-.405 .250-.260 .365-.385 .485-.515
5/16" .500-.510 .310-.320 .430-.450 .605-.645
3/8" .600-.612 .375-.385 .495-.515 .735-.765
MGCS 3/16" .305-.315 .186-.196 .295-.315 .495-.535
1/4" .395-.405 .247-.260 .432-.462 .665-.715
MGCW 3/16" .305-.315 .188-.204 .295-.335 .640-.755
1/4" .395-.405 .250-.260 .435-.460 .855-1.005



Installed Values in Nominal Grip (lbf)

DIA.   ALUMINUM STEEL
MIN. TYPICAL MIN. TYPICAL
3/16" Shear 750 1000 1725 2000
Tensile 900 1300 1650 2700
Clamp 550 800 1025 1500
1/4" Shear 1200 1600 2200 2700
Tensile 1620 2500 2950 4000
Clamp 950 1400 1350 2000
5/16" Shear 2200 2700 3000 3900
Tensile 2500 4100 4400 6200
Clamp 1600 2200 2300 2900
3/8" Shear 3000 3900 4200 6000
Tensile 4000 5500 6000 9000
Clamp 2400 3200 3200 4000



Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related products

C50L Huck Bolts
Steel Round Head Lock Huck Bolts For Sale

C50L lockbolts are durable fasteners specifically designed for demanding engineering applications. T...

Bobtail Huck Bolts
High Quality Class 8.8 Round Head Tail Lock Huck Bolts

Featuring a distinctive pintail-less design, Tail Lock Huck Bolt ensures exceptional performance and...

C6L Huck Bolts
Wholesale Stainless Steel Lock Bolts Ring Groove Rivets

With the unique locking groove design, you can ensure a secure and long-lasting fit, preventing any ...

Dome Head Huck Bom Rivets
Manufacturer High Strength Huck Bom Blind Rivets

BOM rivet is often utilized as an alternative to welding. It possesses exceptional strength, allowin...

huck bom blind rivet
Steel high strength bullet head huck bom rivet

Borie Fasteners is a professional Huck Bom Rivet manufacturer and supplier, we are committed to prov...

huck bolt suppliers
Steel countersunk huck bolt rivet

Borie Fasteners provide magna grip rivets OEM&ODM service, we are committed to providing clients...

Flat Head Round Blind Rivet Nuts
Bulk Order Open End Flat Head Round Body Rivet Nuts

Round body rivet nuts offer a fast, reliable, and cost-effective solution for inserting threads into...

Mushroom Head Semi Tubular Rivets
Wholesale Brass Bifurcated Split Rivets

Bifurcated rivets also known as split rivet, dDue to its bifurcated design, the bolt body can expand...
