Characteristics And Uses Of Multi Grip Blind Rivets

Characteristics And Uses Of Multi Grip Blind Rivets

Mar 22 , 2024

What is Multi Grip Blind Rivets?

Multi Grip Blind Rivets is a kind of rivet for single-sided riveting, a new type of fastener for blind riveting, in riveting, using its own deformation or interference to connect the parts of the riveted parts.


When the Multi Grip Blind Rivets is riveted, the nail rod pulls the end of the rivet body into a single drum, double drum or multiple drum shape, clamps the two structural parts to be riveted, and can reduce the pressure acting on the surface of the structural parts.

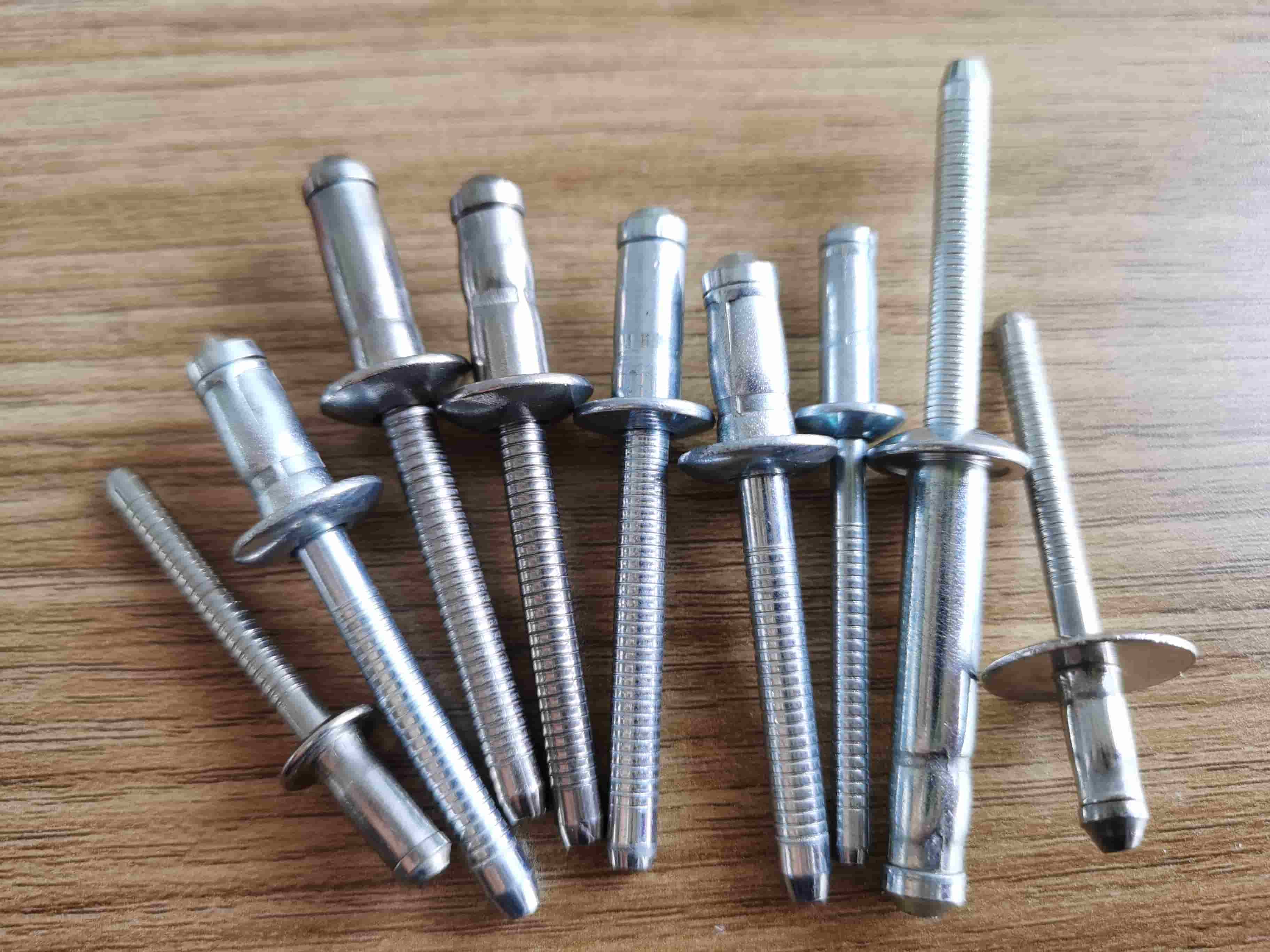

multi drum blind rivet

Rivet Material: Aluminum 5050/5052/5056/5154, Steel, SS304

Rivet diameter: 2.4mm,3.2mm, 4.0mm, 4.8mm, 5.0mm, 6.4mm

Length: 5mm-40mm

Surface Treatment: Polished, Color Painted

Head Type: Flat round head, countersunk head

Structure type: Multi Grip type, Single Grip



Advantage Of Multi Grip Blind Rivets

• Multi-layer riveting capability.

• A certain degree of closure.

• One or more kick drums are provided at the axial blind end.

•Nail bar locking capacity.

• Large riveting range.

• Suitable for sheet riveting.

• Good hole filling performance


Applications of Multi Grip Blind Rivets

  • Electrical equipment
  • Light industry in general
  • Heating and ventilation equipment
  • Construction
  • Machinery
  • Automobiles
  • Ships
  • Aircraft
  • Containers
  • Furniture

How to choose Single Grip or Multi Grip Blind Rivets?

  1. Riveting materials: single grip rivets are suitable for thinner materials, such as thin metal plates, plastic plates, etc., and multi rivets are suitable for thicker materials, such as thick metal plates, wood plates, etc.
  2. Riveting strength requirements: If a higher riveting strength is required, it is recommended to choose a multi grip rivet as it can provide greater tensile force.
  3. Riveting position: If riveting is required in a tighter space, a single grip rivet may be more suitable due to its smaller head.
  4. Tools: Single grp and multi grip rivets require different riveting tools, and you need to consider whether you have the right tools or whether they are easily available.

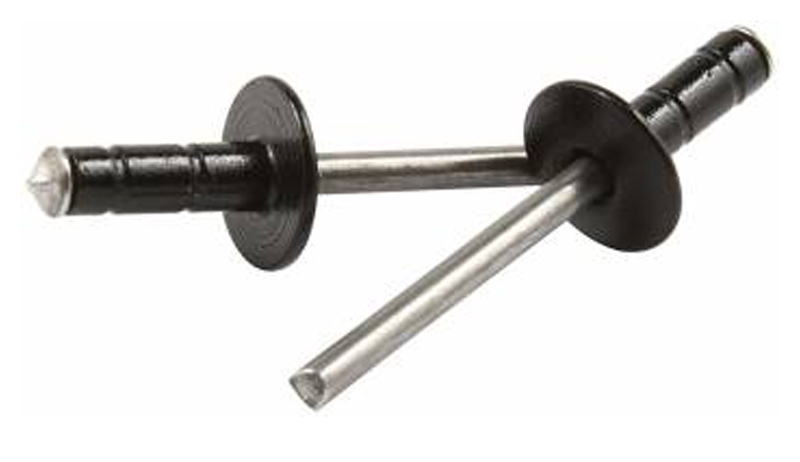

multi grip blind rivet factory
